Replacement balance

Quick Learner from Hardy, VA

Oct 9, 2025 5:20 pm

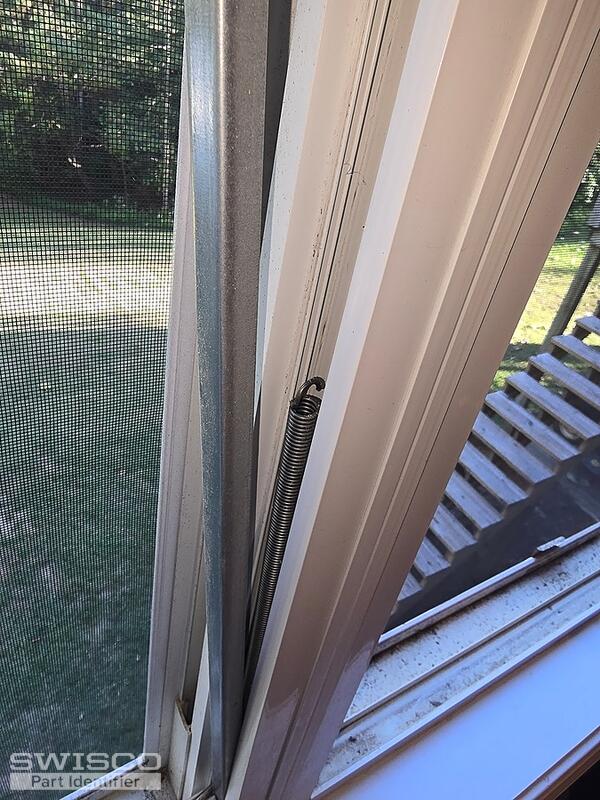

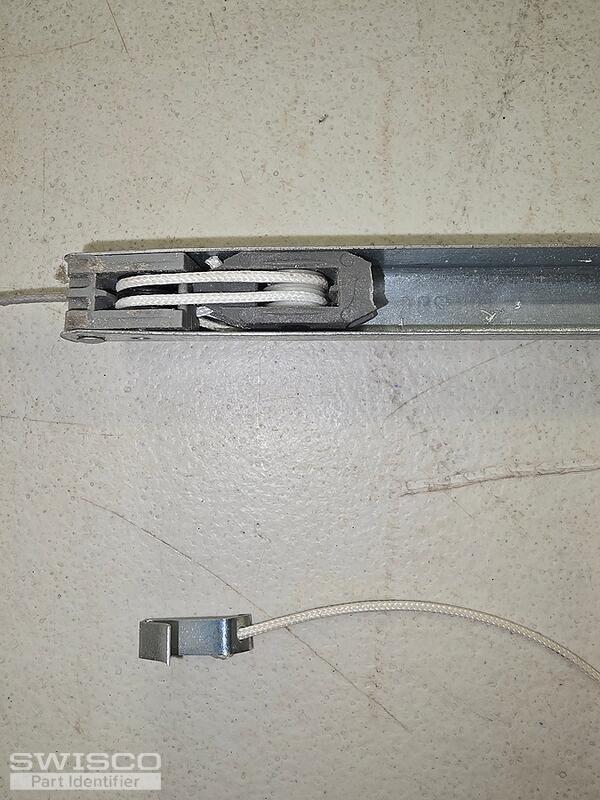

I need to replace two broken balances. They both broke where spring attaches to the pully. I dont see any mfg info but balance channel is stamped 28C BSI.
I would also like to replace bottom vinyl seals.

4 user uploaded images

6 Replies

Jasmine from SWISCO

Oct 10, 2025 12:50 pm

Thanks for writing in! I'm confident we can supply the replacement balances you need to repair your window. Although, to confirm the correct replacements, I'll need to see a photo of the bottom attachment on the balance. This appears to still be attached to the bottom of the window sash.

In regard to the window seal, I'll need to see the end profile view of an undamaged piece to identify the exact replacement. Take a look at the video tutorial below for reference.

Quick Learner from Hardy, VA

Oct 10, 2025 1:37 pm

Thanks for the quick reply. I'll get more pics out to you when I get home.
John

Jasmine from SWISCO

Oct 10, 2025 2:39 pm

Hi John,

Please send them when you are able and I'll be happy to review them.

Don't hesitate to reach out with any other questions you might have!

Quick Learner from Hardy, VA

Oct 10, 2025 4:12 pm

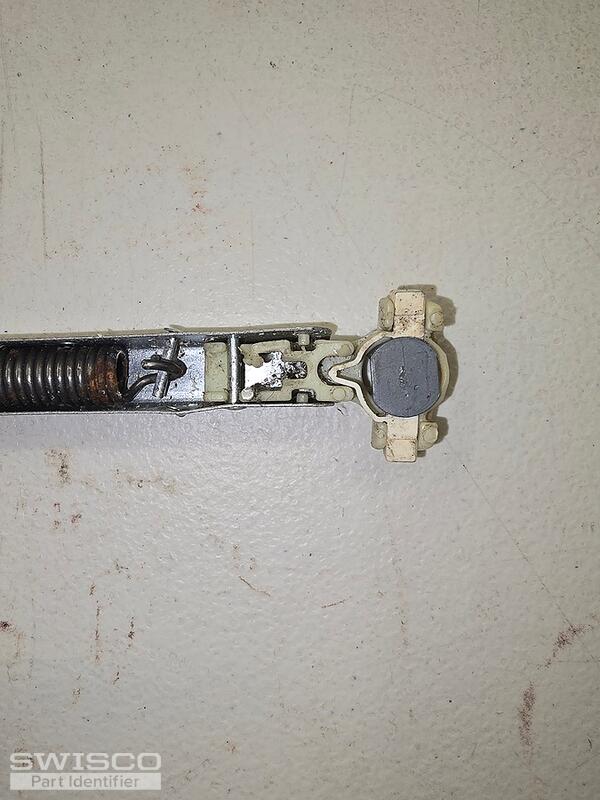

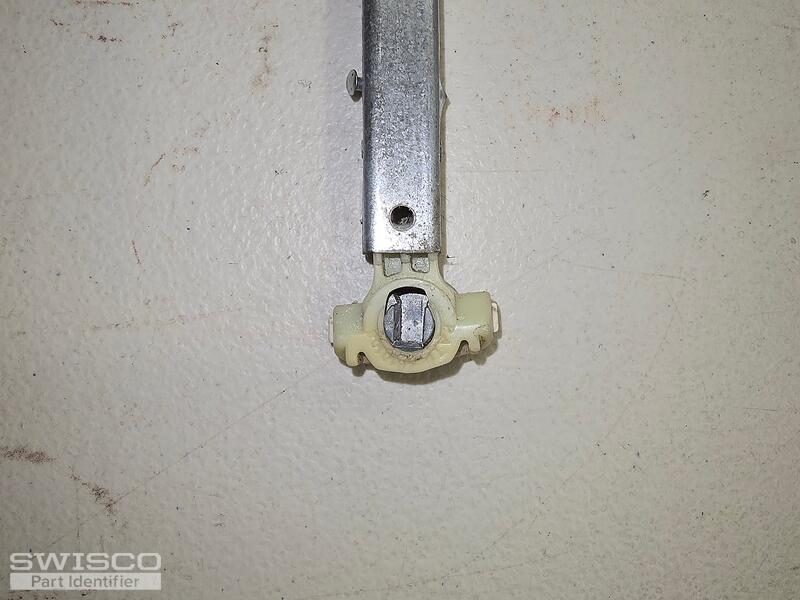

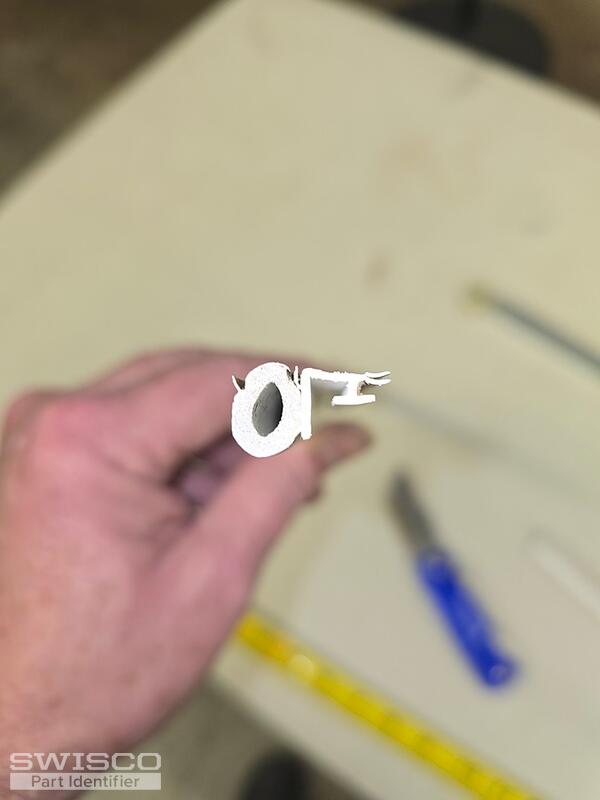

Here are the additional pics. The bottom seal is 33 inches long.

4 user uploaded images

Jasmine from SWISCO

Oct 10, 2025 4:27 pm

Thanks for posting! This window balance is a custom, S795-28 Channel Balance, with a 28C Stamp. They are considered custom because we'll need to attach the 15-198 Balance Clip Attachment to the top of them.

These will come fully assembled with a 15-195 1-1/4" closed cam shoe.

The seal can be replaced with either the 58-183 offset hollow seal or the 58-171 foam filled seal (this is not available in a hollow option). Their dimensions can be viewed directly on the website.
