Replacement balance & sash caps

A quick learner from Dover Centre, Ontario, Canada says:

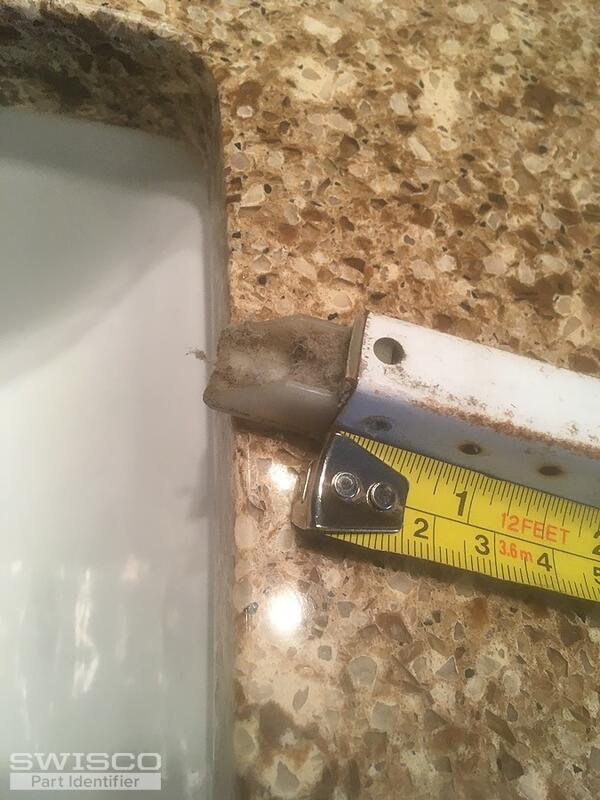

We have a few vinyl replacement window that we're sold by Ducana who've ceased operations likely 10+ years ago. The channel balances look like a common part to replace. The one picture with the bottom of the. 2430 (upside down J, then an E, I believe. There's a picture of both ends of the balance. The metal channel is 25" long & the channel is 9/16" wide OD.

These windows are 32 years old, but none of the sealed glass units have broken seals. I believe our windows were built based on a US design. They do NOT tilt out to remove.

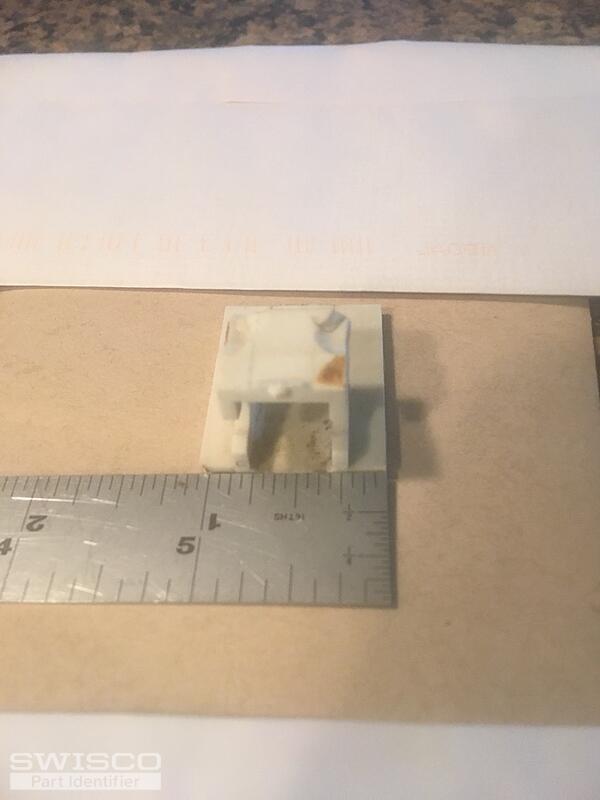

Some of our top sash caps are breaking & preventing the sash to be assisted by its balance on that side. I do not see a matching cap in your parts catalog by the dimensions you provide. Is it possible to get the sash caps that would match my broken sash cap? Our dimensions are: 1 5/16" long X 1 1/16" wide by approx 1 1/2-1 3/4" deep. The center "plug" that sticks down appears to be 5/8" wide with some ribs sticking out to approx. 11/16" wide.

We are interested in the price for 6 balances & 6 sash caps that would fit our windows. Our postal code is N0P 1L0

Thank you Stephen & Louisa

Thumbnail of the uploaded file named E0BA8ED4-88F0-4A15-9E1F-9E6648A8E9D1.jpeg
Thumbnail of the uploaded file named 6AF91D37-A6F4-4D45-BFFB-A790F1727618.jpeg
Thumbnail of the uploaded file named 07B9C8E8-C08A-48E1-849B-27641600CF8F.jpeg
Thumbnail of the uploaded file named 6E03D8F8-8359-4EDB-81D6-0EA968C4CDA0.jpeg
Thumbnail of the uploaded file named 259BDC97-F4AA-4D1C-A43B-D7ABED91C291.jpeg
Profile picture of Paul
Paul from SWISCO responded:

From your photos and dimensions, it looks like you have a Fiberlux side load window. Please compare the dimensions of our 18-073 top sash guide to one of yours. The balance should be the S350-25 that comes attached with the 19-002 top fitting and 15-004 bottom fitting. Please compare. You'll also need to select the 2430 stamp option. Take a look, along with the related videos on this page, to see what you think.

A quick learner from Dover Centre, Ontario, Canada says:
Thank you for your help. I've placed my order, for more parts that will revitalize our windows.
Steve
