Replacement balance and tilt latch

Start a new Discussion

Quick Learner from north carolina

Jan 13, 2015 10:17 pm

I am looking for these parts. Are they available? I need at least 6 balances and 3 sets of tilt locks.

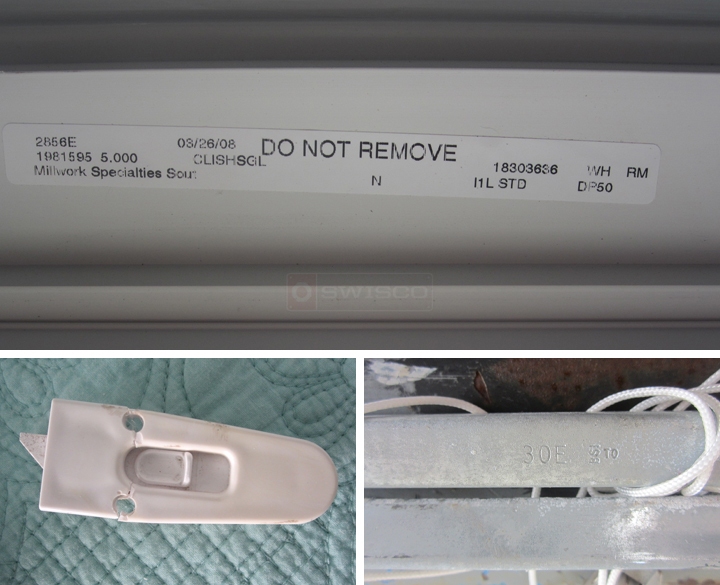

User submitted photos of window hardware.

4 Replies

Paul from SWISCO

Jan 15, 2015 2:12 pm

Thanks for posting! I'm afraid I don't know what hardware you have, and the sticker does not tell me who the manufacturer is. We can still help, but we'll need more detailed information.

First, please show me either end of your balance so that we can see what kind of attachments you have. I would also like you to tell me the dimensions of the latch, including the distance between the installation holes. Thanks!

Quick Learner from north carolina

Jan 15, 2015 9:20 pm

These are the bottoms of the balances.. I will have to measure what I have to go and get you the size of the balance.. These parts are on a job and there is no internet access there.

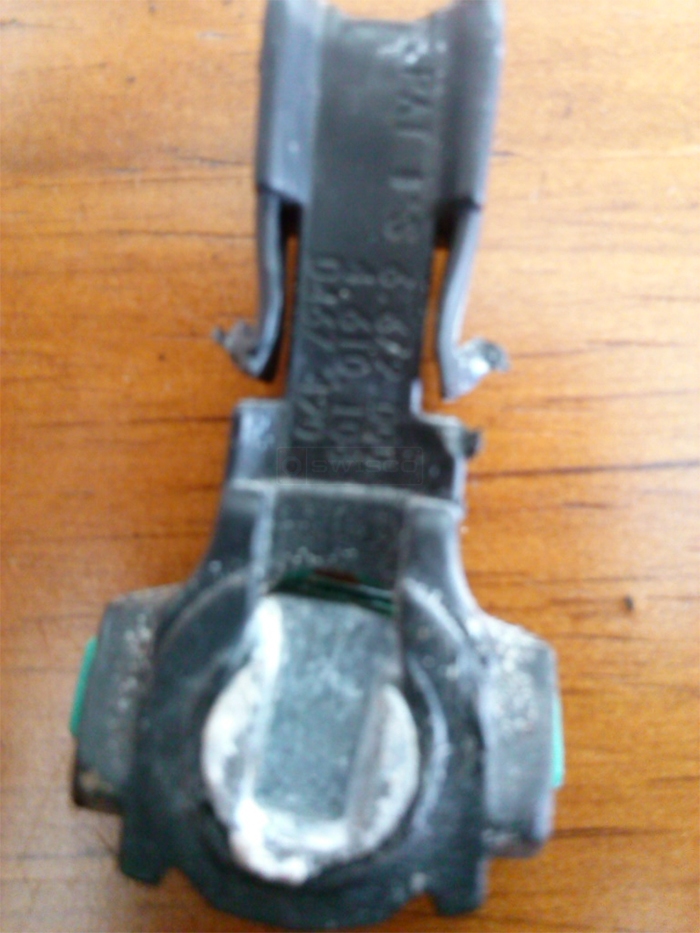

User submitted photos of a balance shoe.

Paul from SWISCO

Jan 16, 2015 12:41 pm

Thanks for the additional picture! It looks like your balance is our Series 795 channel balance, however you have the smaller 15-194 shoe. The shoe that comes with the Series 795 is larger, but you can just clip that off and clip on the 15-194. What do you think?
