Replacement balancer for Milgard window

Contractor from Southern California

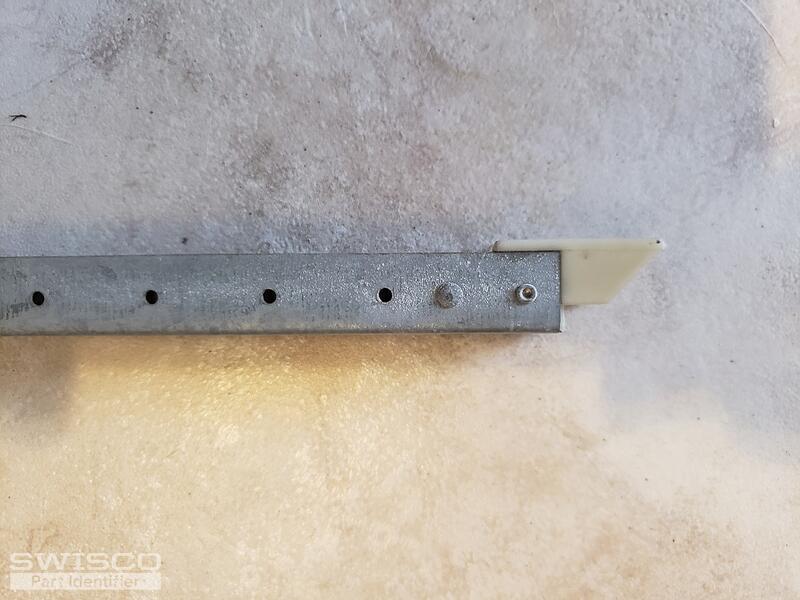

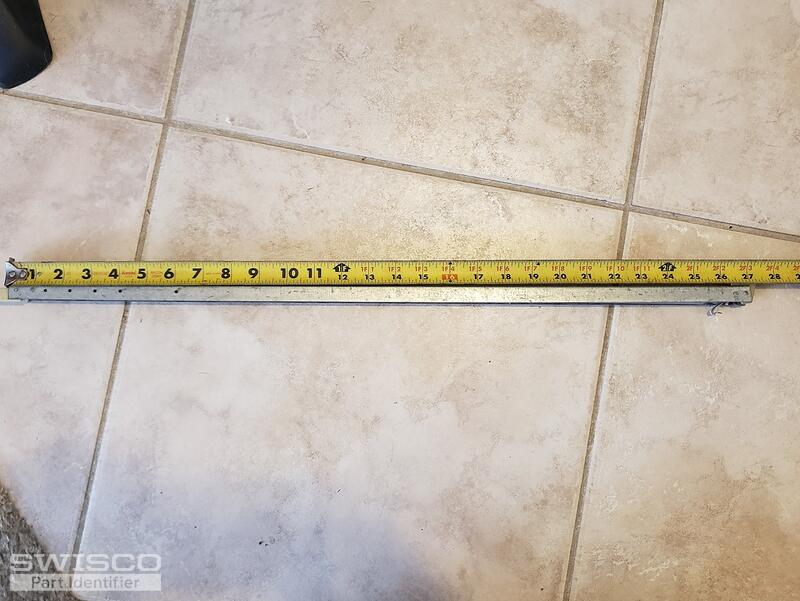

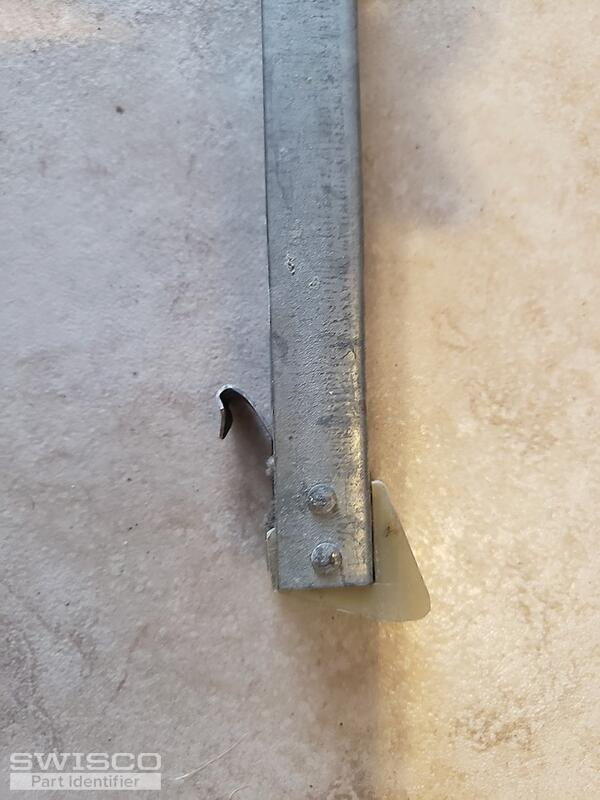

Hi ... I need to identify this 35 year old Milgard balancer. The sticker on the window frame says Series 1500 , DH-R20, MST: 4060

The only numbers on the balancer are 2603E

online I have seen 2630ec, 2630ep and 2630ex.

Could you please help me identify the correct part ?

Thank you,

Ray

4 user uploaded images
3 Replies
Contractor from Southern California

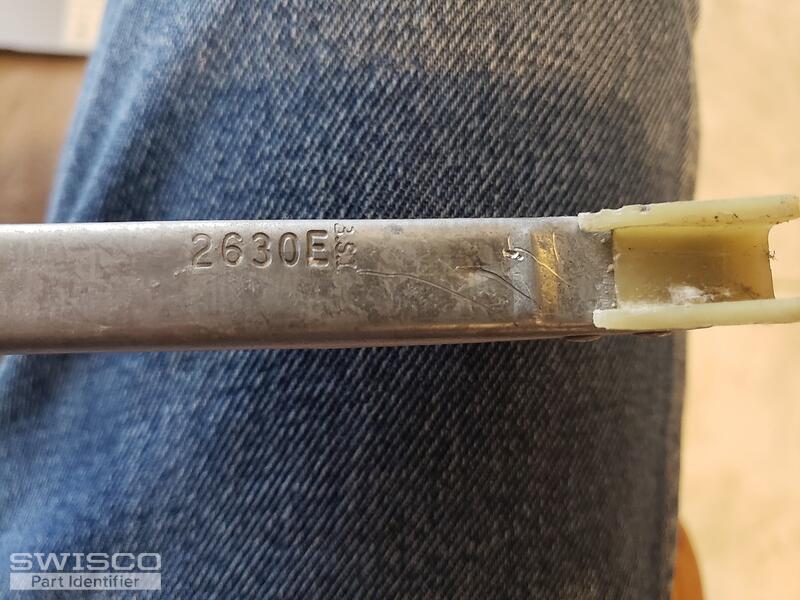

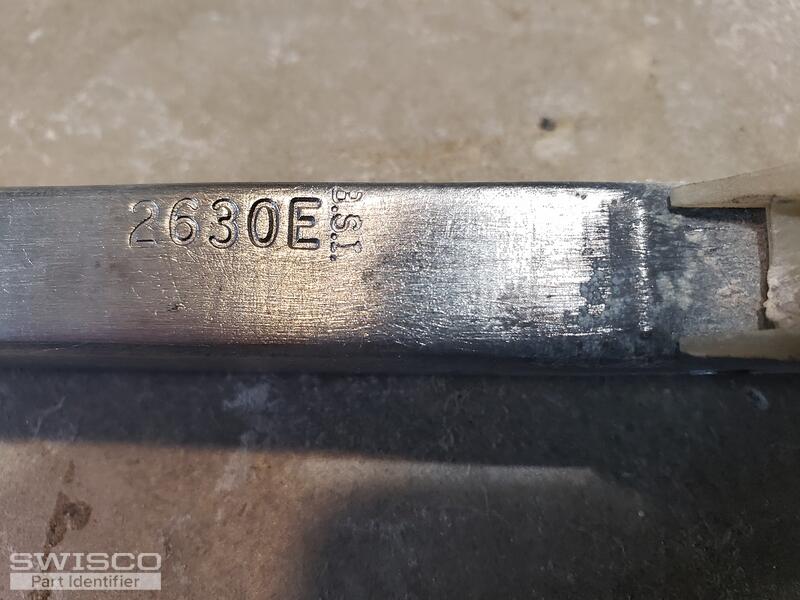

Sorry... I posted an incorrect # located on the balancer.
It is actually 2630E
There are also some very small
Letters next to it .. looks like 3.S.I.

Thanks !
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It looks like you have either our S351-27, with a 15-002 bottom attachment, or S390-27, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

You'll also need a 2630 spring strength option for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
