Replacement balancers

A quick learner says:

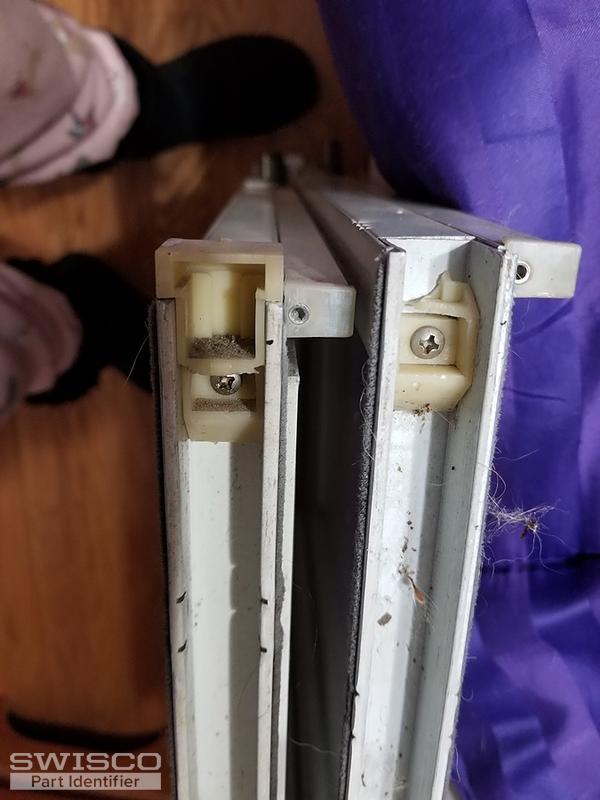

Hi. I had someone look at my windows and said I need 2 each of S745- 26 and S745-16. When I called to order they said I had to weigh the window which was almost 12 lbs. They said that did not make sense nor did needing 2 different lengths for the same windows that measure the same length were the balace goes in on both sides. Thank you
Thumbnail of the uploaded file named 16057398507072030936766765945060.jpg
Thumbnail of the uploaded file named 1605739997385807980460823952703.jpg
Thumbnail of the uploaded file named 16057403703051860870643453923596.jpg
Thumbnail of the uploaded file named 16057403996447706853306363852080.jpg
Thumbnail of the uploaded file named 16057404619315108911773562986937.jpg
A quick learner from New Jersey says:

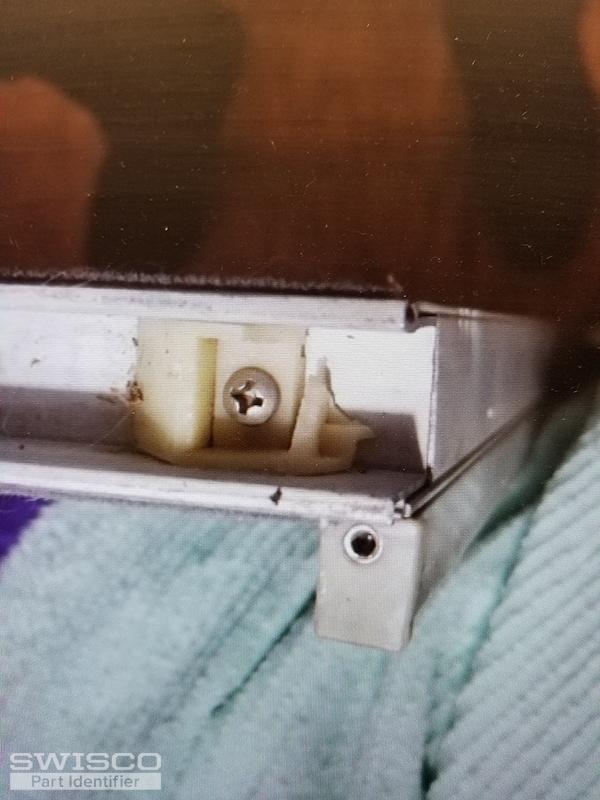

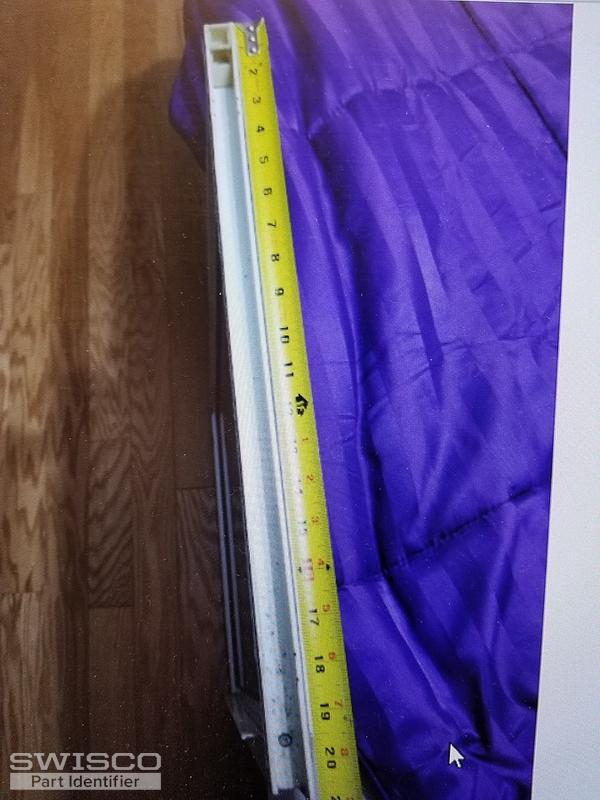

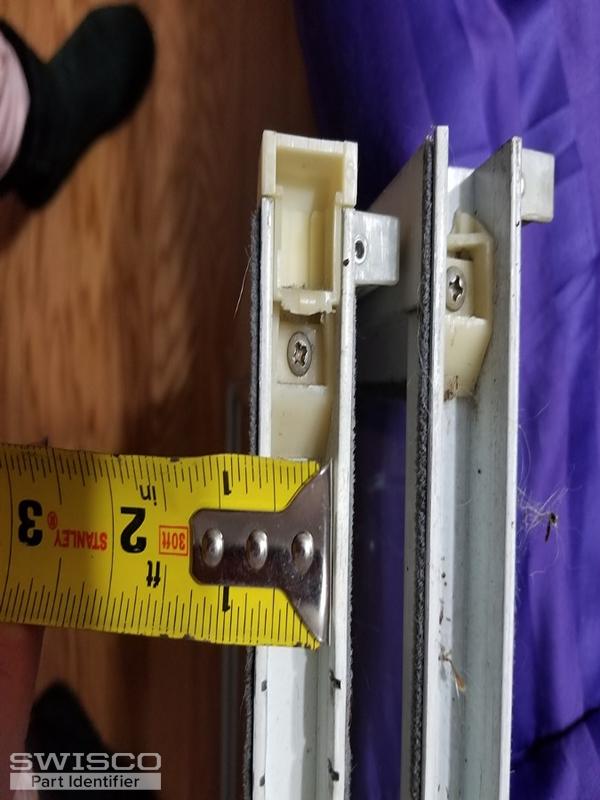

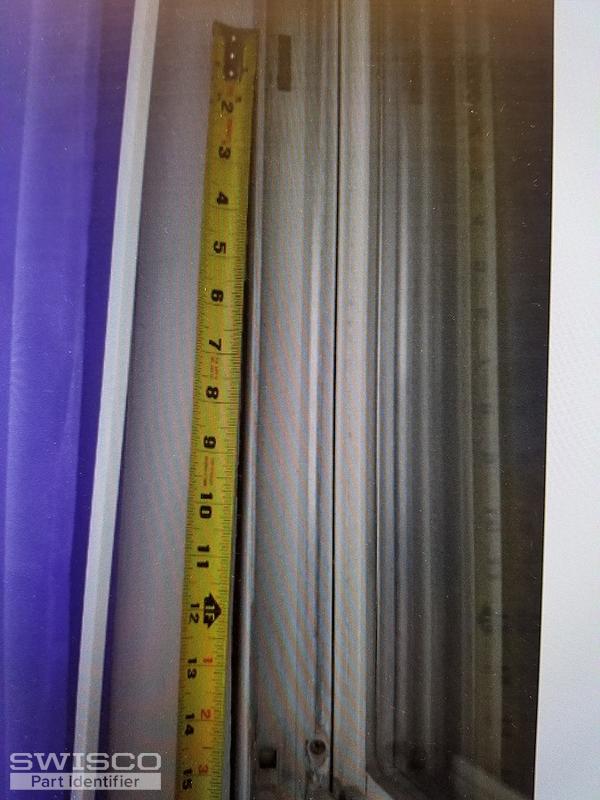

The person that looked at these windows us saying I need S745- 16. The window weighs 11 3/4 lbs. What option would I need? Also in tge 3rd pictore there is a 1 broken plastic piece is that seperate part or part of the balance. Thank you
Thumbnail of the uploaded file named 16058016110991763200993411338777.jpg
Thumbnail of the uploaded file named 16058016593412052508650744535380.jpg
Thumbnail of the uploaded file named 16058017046681800147162863336621.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! If you have confirmed that you need the 16" length for the Series 745, then you want to choose a 15.25-4 option for your sash weight. You can actually see a chart on the S745-16 store page that tells you how much weight each option is designed to support.

The plastic piece is called a top sash guide. Yours looks like our 18-110, though you should review the dimensions we show on this product's store page to confirm they align.

A quick learner says:

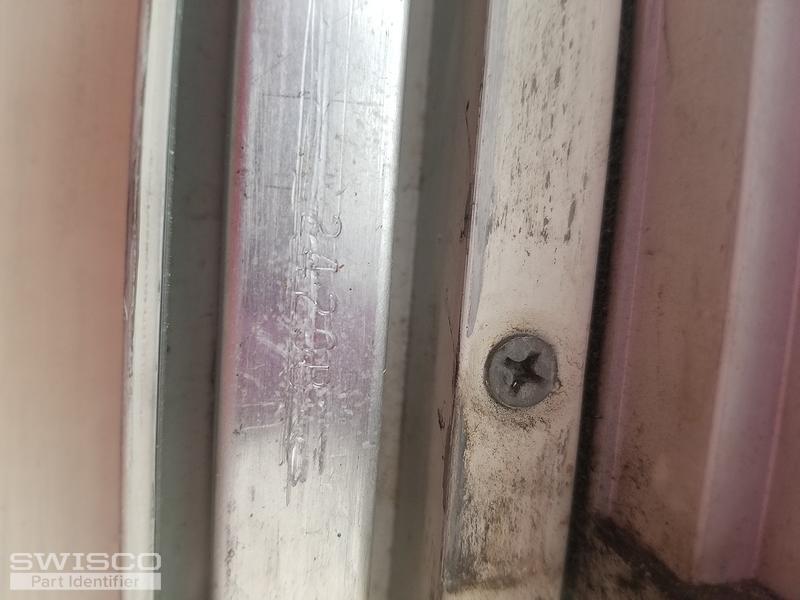

This is the adfitional picture you requested
I need 2 - 16- 1/4. You already have the other pictures.
Thumbnail of the uploaded file named 16071886281072897588526181710339.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello, Dee. I don't think I requested any other information, unless you spoke to someone other than myself. I made my recommendations to you in my prior response. Is there anything about those recommendations that you weren't sure about?

A quick learner says:
Hello,
I did speak to someone and they said I would have to send a picture of the existing balance from a different window even though the lenght was different.
Thank you for your help
Stay well
Dee
Profile picture of Tom
Tom from SWISCO responded:

Thanks for clarifying. I thought you had already decided that you needed the S745-16 for your window, as per the person you had look at your window. I didn't know the exact size was still in question. If it is, then seeing that unrelated stamp unfortunately doesn't tell me anything.

If you aren't sure that you need the 16", then let me know and I will do my best to walk you through it.
