16-1/4" Peachtree Balance

Product Code: S745-16

16-1/4" Peachtree Balance
Quantity Price
1-9 $13.79
10-24 $13.10
25-49 $12.41
50-99 $11.72
100+ $11.31
Please Note: Bulk pricing applies only to purchases of the same option
Product Description
This is a Series 745 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 16-1/4" long metal channel.
  • Comes fully assembled with a terminal plug and will be ready to install out of the box.
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • Can work for either the left or right side of the window interchangeably.
  • Used in Peachtree-Ariel non-tilt single-hung windows.
Stamp Option Sash Weight Range
15.25-4 11 to 13 lb
15.25-5 14 to 17 lb
15.25-6 18 to 22 lb
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!

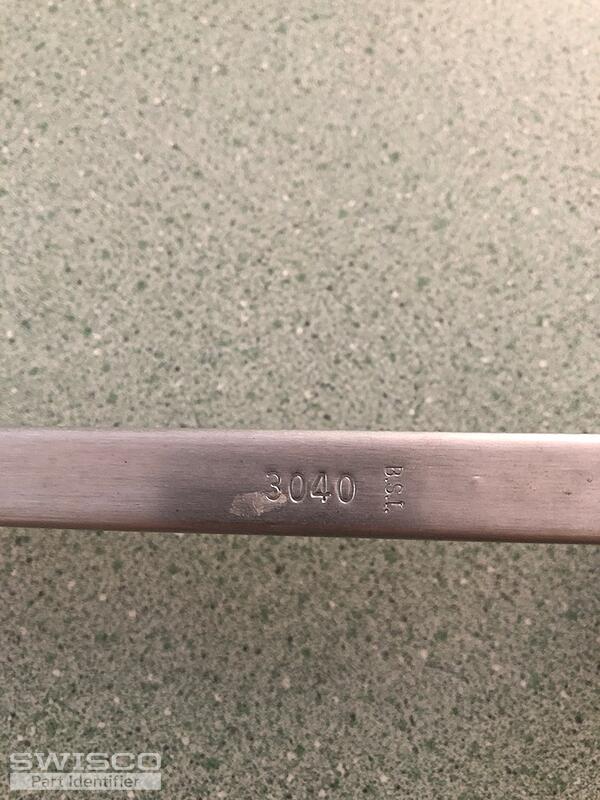

The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Related Videos
Related Item(s)
Customer Questions & Answers
Discussion # Of Replies Last Post Date
Peachtree Ariel non tilt double hungThis discussion includes image(s). 2 Jul 20, 2022
3640 Channel balanceThis discussion includes image(s). 5 Jul 3, 2021
Replacement balancersThis discussion includes image(s). 7 Nov 18, 2020
Peachtree block and tackle balanceThis discussion includes image(s). 2 Aug 10, 2020
peachtree window balance 2 Aug 15, 2017
replace springs on Peachtree windows 4 Oct 18, 2016
Block and tackelThis discussion includes image(s). 3 Aug 16, 2016
Peachtree Double Hung non tilt 4 Jul 30, 2015
