Replacement balances.

A handy person from 29316 says:
November 12, 2021
I need replacement balances for the double window pictured above. Please provide me a list of part numbers, quantities, and pricing so I can place an order to repair both sides of both windows. Parts will be shipped to area code 29316. Any other important information that you can provide will be appreciated. Thank you. Don
Thumbnail of the uploaded file named 1999885015647140307.jpg
Profile picture of Emily
Emily from SWISCO responded:
November 15, 2021

Hey, Don.

I'm afraid this sticker doesn't tell us what hardware your window uses, unfortunately. We'd be happy to help but we'll need you to remove an undamaged balance with the end fittings intact to compare to our inventory.

Thank you!
A handy person from 29316 says:
December 11, 2021

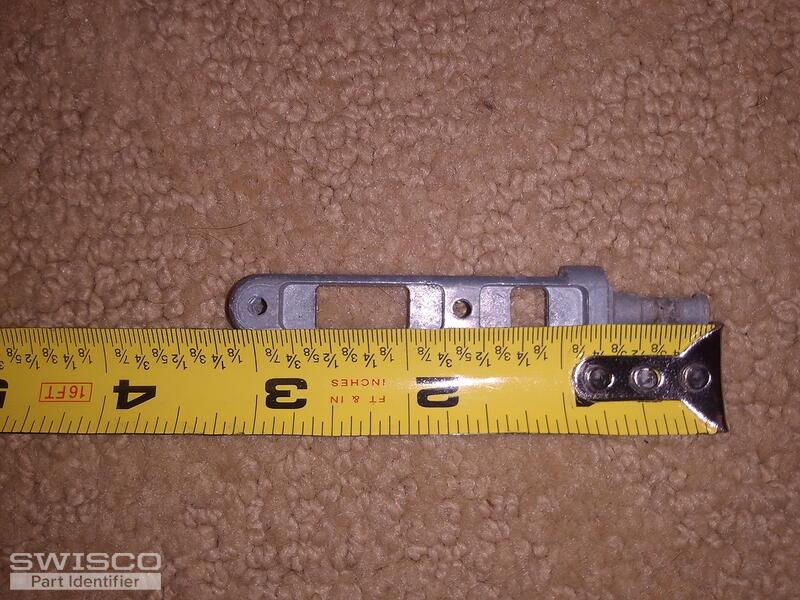

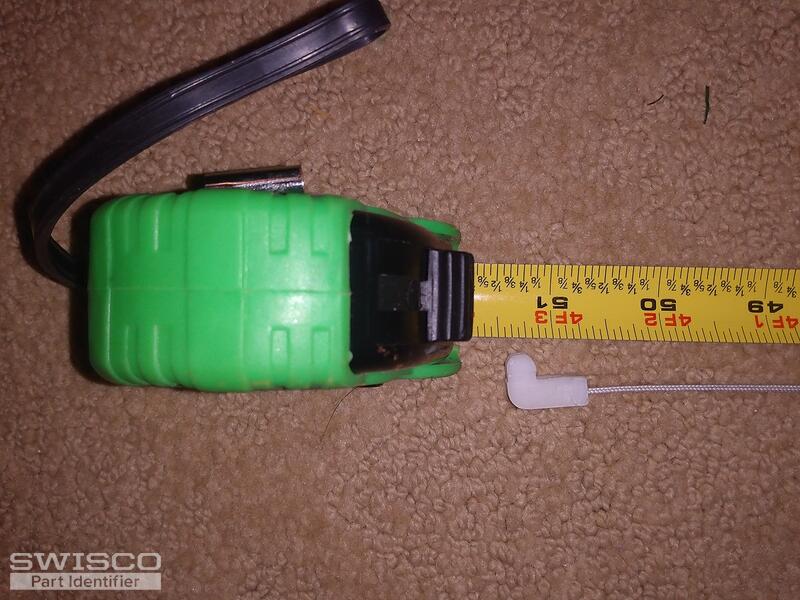

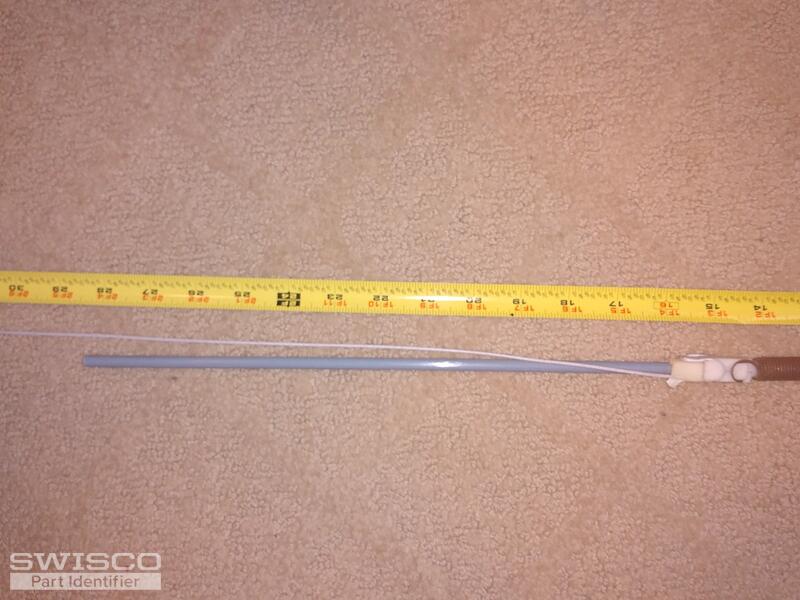

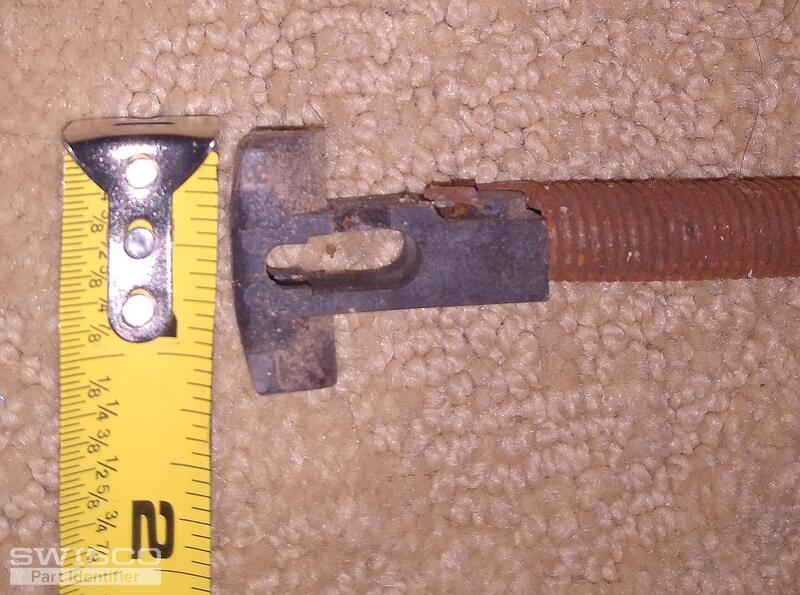

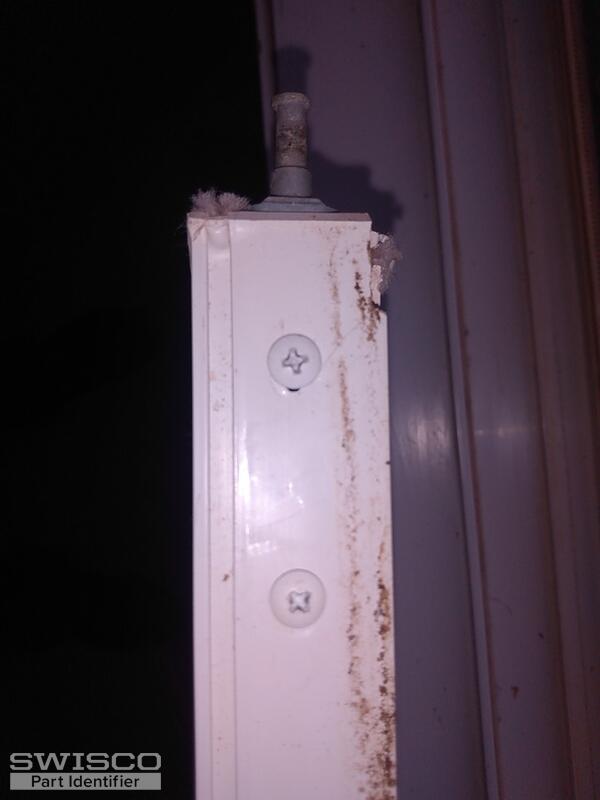

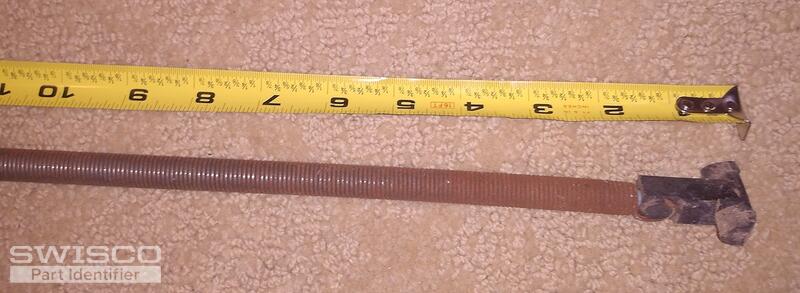

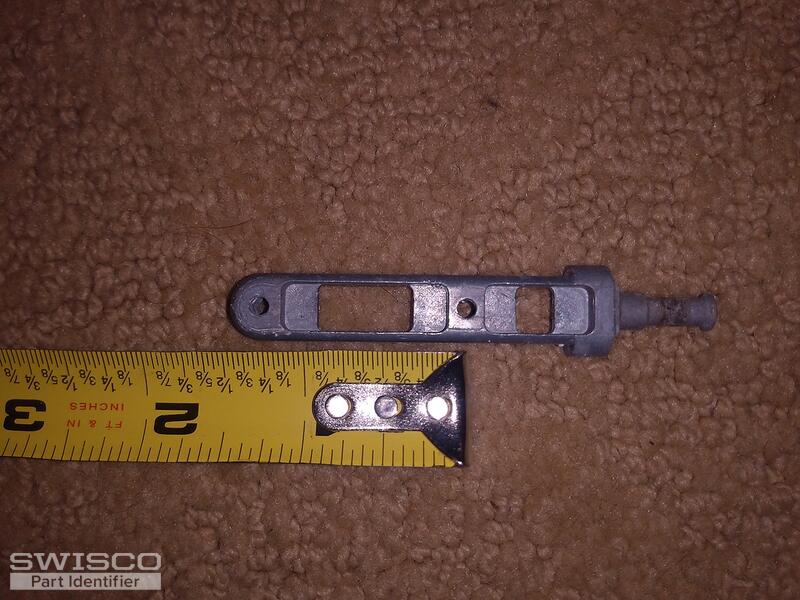

I took the window apart and unfortunately none of the balances were intact. I have attached photos with measurements in hopes they will provide enough information. The sashes both weigh 18.2 lbs.
Thumbnail of the uploaded file named IMG_20211123_152815522.jpg
Thumbnail of the uploaded file named IMG_20211123_152956224.jpg
Thumbnail of the uploaded file named IMG_20211123_153010996.jpg
Thumbnail of the uploaded file named IMG_20211123_153022858.jpg
Thumbnail of the uploaded file named IMG_20211123_153031543.jpg
A handy person from 29316 says:
December 11, 2021
I took the window apart and unfortunately none of the balances were intact. I have attached photos with measurements in hopes they will provide enough information. The sashes both weigh 18.2 lbs.
Thumbnail of the uploaded file named IMG_20211123_153054361.jpg
Thumbnail of the uploaded file named IMG_20211123_153155505.jpg
Thumbnail of the uploaded file named IMG_20211123_153217721.jpg
Thumbnail of the uploaded file named IMG_20211123_153413602.jpg
Profile picture of Emily
Emily from SWISCO responded:
December 13, 2021

Thank you for the additional pictures!

The crossbow balances in your photos are no longer available but as long as the springs have a diameter of 1/2", you can follow the video below to convert your windows to use the S795 channel balances.

Your pivot bar is an older version of our 26-366. The tip is different than your old pivot bar, because it is meant to fit the balance that has replaced the old crossbow balances your window uses, our Series 795. The video below goes into more detail.
Vinyl Window Sash Pivot Bar
Vinyl Window Sash Pivot Bar
26-366
$3.77
Balance Screw Plug
Balance Screw Plug
26-200
$0.49
28" Series 795 Channel Balance
28" Series 795 Channel Balance
S795-28
$13.61
How to Identify Replacement Channel Balances
How to Identify Replacement Channel Balances
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
