Replacement balances for vinyl windows

A contractor from Cape May CH, NJ 08210 says:

I think one of the white plastic clips are broken. Insulated Windows look fine but Balances are all beginning to break.

I hope my pics are going through. Please let my know if you need any other info.

Thanks !!

Vic

Thumbnail of the uploaded file named 74DAC57D-D756-4149-8AF8-AB3D0266863D.jpeg
Thumbnail of the uploaded file named 1C5E1F70-C3F3-4553-ABEF-4D15EF89657F.jpeg
Thumbnail of the uploaded file named E59E828A-A8F1-45FA-8259-0B76115D81A5.jpeg
Thumbnail of the uploaded file named 82823CCF-A4E7-41E8-B9F4-A26CB1C78664.jpeg
A quick learner from Cape May CH 08210 says:

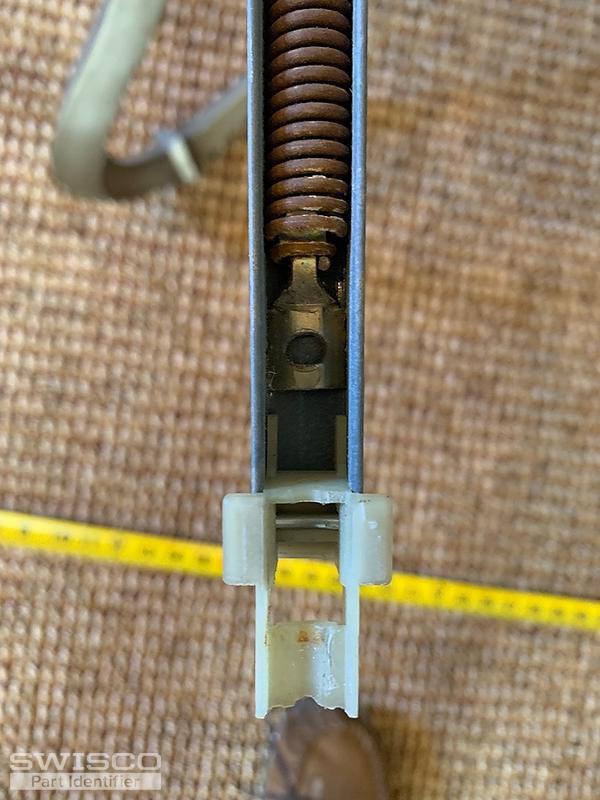

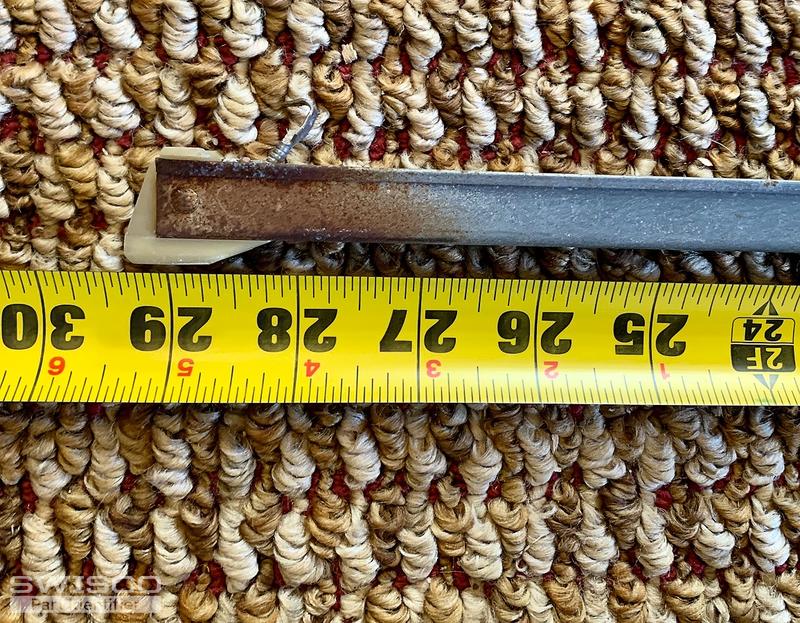

I'm not sure if all my pictures went through so imm mo adding these to what i I had just sent. Please let me know if you need anything else. As you should see in RJD pice the number stamped on the galvanized channel 27 3K 1

Thanks

Vic

Thumbnail of the uploaded file named CF96B3F0-0D0E-4B30-B8AE-4A873C0780FD.jpeg
Thumbnail of the uploaded file named 63E53782-6558-4FDD-B638-6F2C1987B35B.jpeg
Thumbnail of the uploaded file named 93AD8E9A-EDD0-4F0D-8BF9-89B567A30F2F.jpeg
Thumbnail of the uploaded file named 5A823A10-A968-458C-AB55-5C597A7243AC.jpeg
Profile picture of Casey
Casey from SWISCO responded:

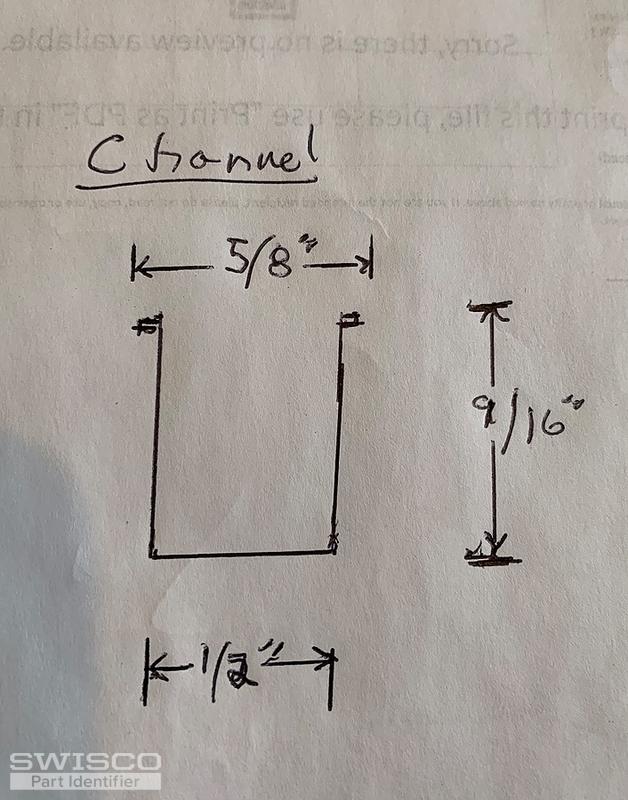

With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2730 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
