I found this post when searching for my own part that has the same numbers on the coil support.
"The numbers on the white piece above it are 5.232.208 & 5.365.638 need replacement parts."
The reply doesn't recommend a replacement coil support. The only recommendation I see is for the pivot shoe and pivot bar.

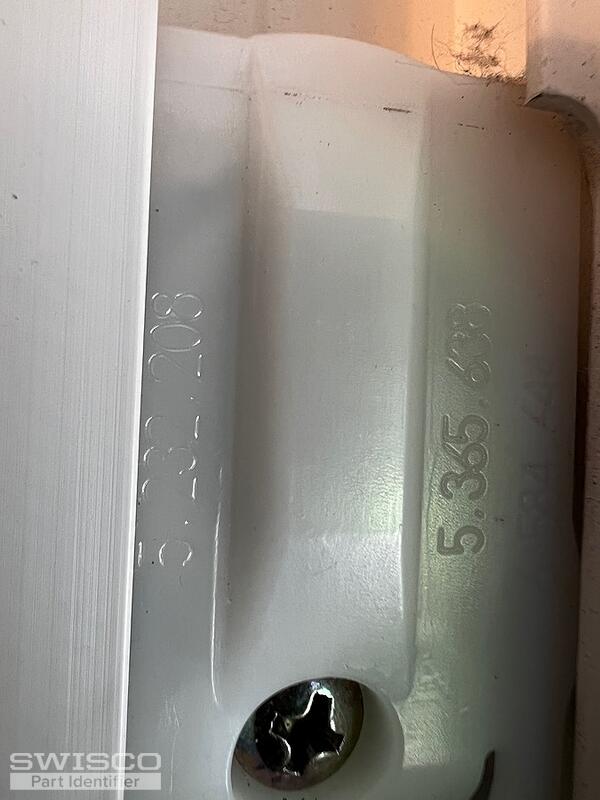

What is a replacement part for the coil support that has these numbers stamped on it? 5.232.208 & 5.365.638

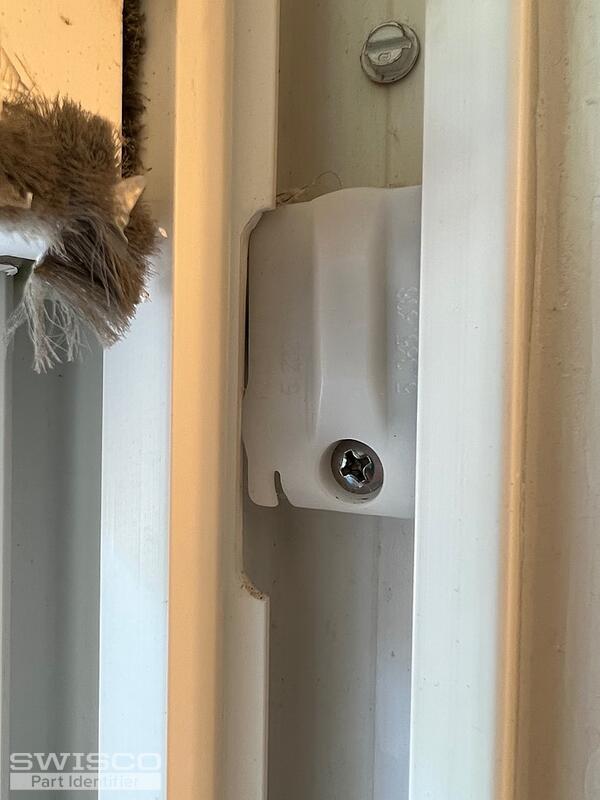

I have a small bathroom window that uses these coil supports (covers?).
Thank you
Replacement bathroom coil balances
Home Owner
Aug 3, 2022 3:58 pm

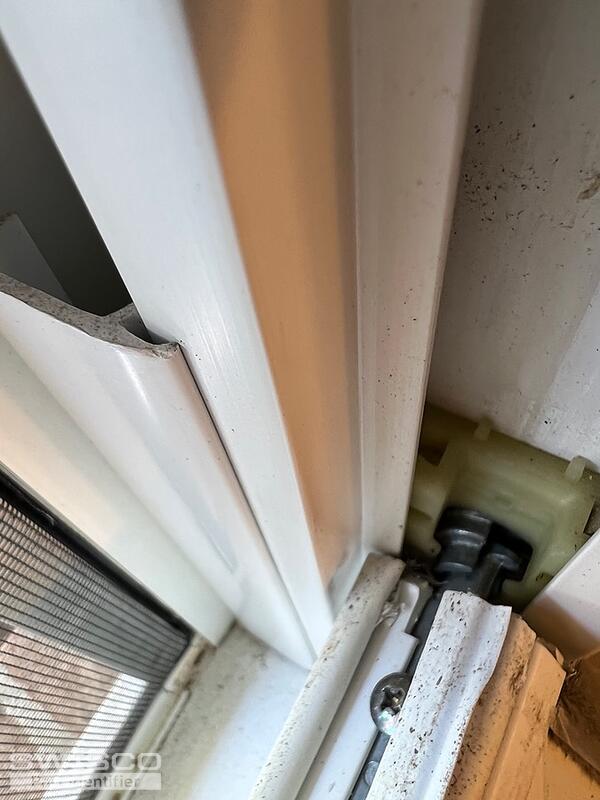

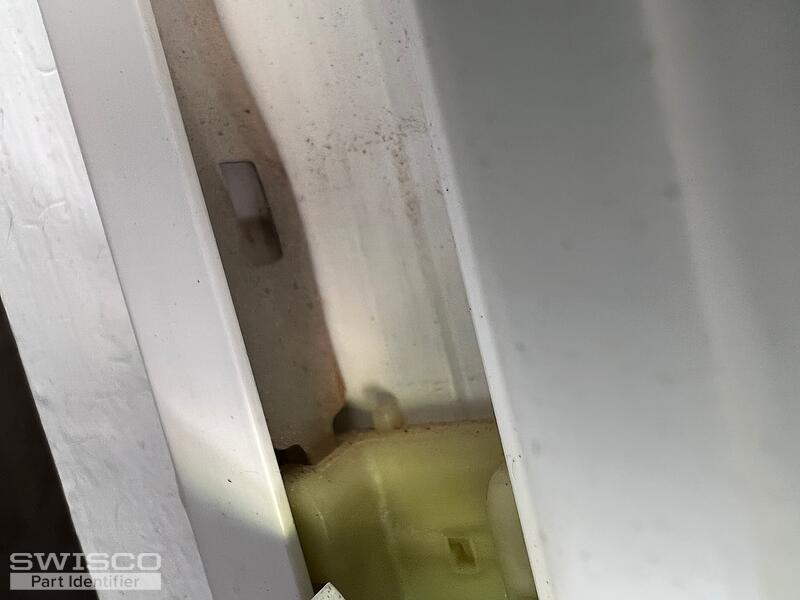

2 user uploaded images
6 Replies
Tom from SWISCO
Aug 8, 2022 2:34 pm
I'm afraid those numbers don't tell me much about the support itself, or even the balance assembly. In order to make a recommendation for you, I will need two pieces of information:
- A photo of the pivot shoe
- The width of the coil spring band
Once I know that, I can tell you what plastic cover would be best for this project.
Home Owner
Aug 20, 2022 5:01 pm
Coil appears to be 1/2.

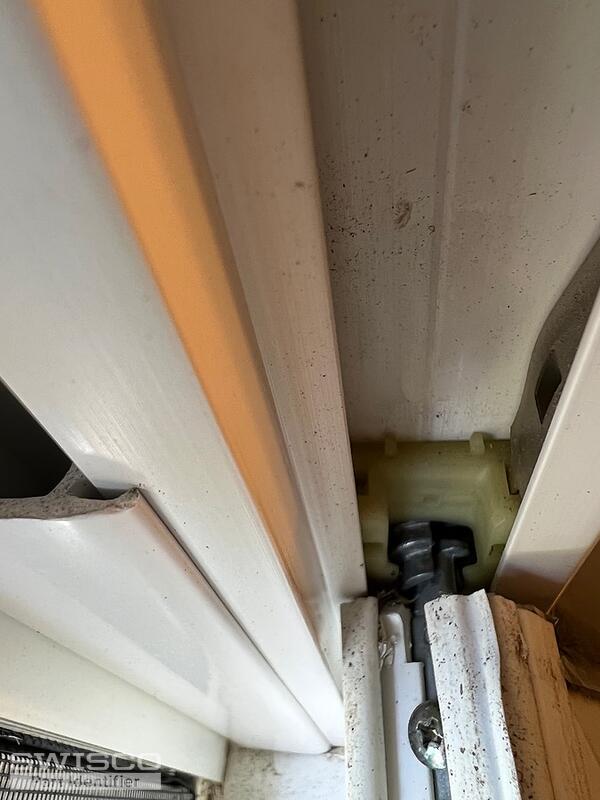

4 user uploaded images
Tom from SWISCO
Aug 22, 2022 8:34 am
Thanks! This pivot shoe appears to be a match for our 15-199. Since your spring is also 1/2", I recommend the Series 160 to replace it, along with the 15-150S single spring retainer.
Please let me know if you need anything else!
Home Owner
Aug 22, 2022 9:59 am
This still doesn't address the replacement of the coil support cover. That's what I originally asked about.
Tom from SWISCO
Aug 22, 2022 10:17 am
That would be the 15-150S single spring retainer that I mentioned. This is designed to work with the Series 160 coil spring, so as long as that matches then the 15-150S will work perfectly well for your application.
