Replacement channel balance 25 5 AU CMC 2

Start a new Discussion

Quick Learner from California

Sep 22, 2024 5:29 pm

Hello, need help identifying correct replacement channel balance for our window. Thanks.

Maribel

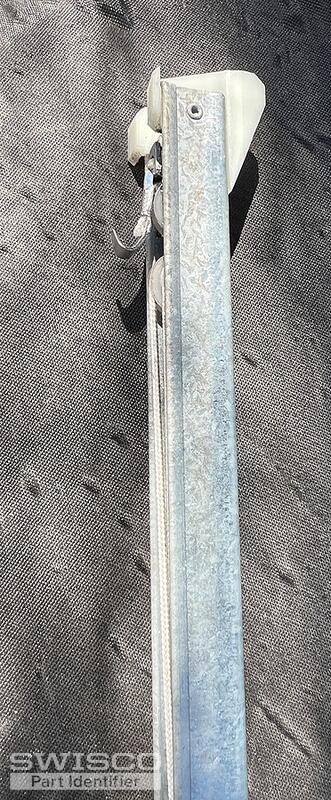

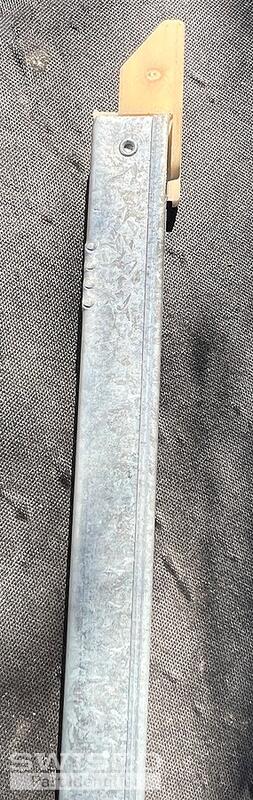

5 user uploaded images

4 Replies

Bob from SWISCO

Sep 22, 2024 8:36 pm

Hey Maribel. This looks like either an S380-26 or S385-26 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both balances with your old hardware to see what matches best. For a stamp option choose 2550.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from California

Sep 23, 2024 1:10 pm

Thank you for your reply. We will double-check the measurement on the bottom nylon shoe and then order the one we think matches best.

Bob from SWISCO

Sep 24, 2024 11:31 am

No problem! Please let us know if you have any future hardware questions.
