Replacement channel balance for non-tilting window

A quick learner from Vista, California 92084 says:

Identifying numbers printed on the unit: 32-3 FA2 CMC 19

The metal channel is 33" long, the back of the channel is 1/2" wide, the open side of the channel's slot is 9/16"

One side of the window is also missing the little clip that pops out to catch the channel balance so that it can be removed. Fortunately the ends of the broken one had disintegrated enough for me to get the window apart. The two little slots where that clip normally would go are 1" apart vertically. I'll need one of those too, and I would order a few more so I have spares. I would order 4 of these channel balances since I have another window that is just like it and I want to replace them in pairs.

Best regards,

David

Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_1443.jpg
Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_1444.jpg
Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_1445.jpg

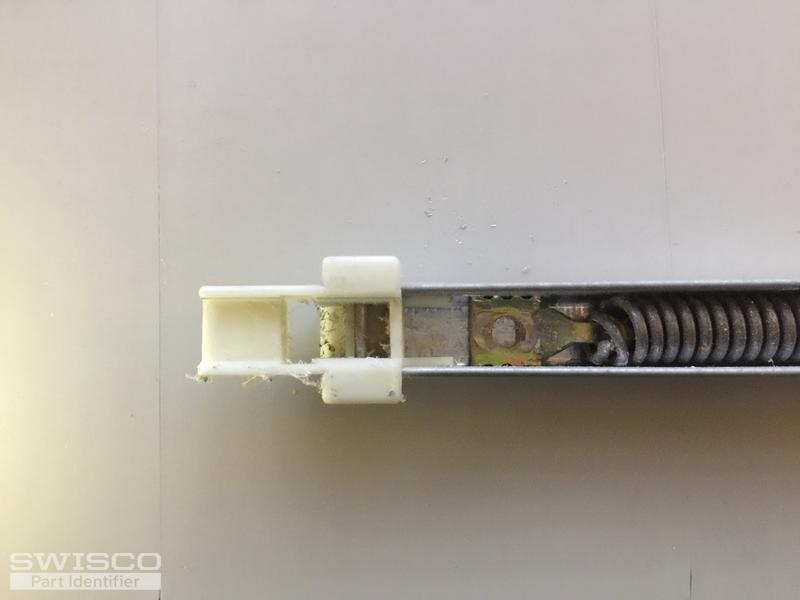

Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_1446.jpg

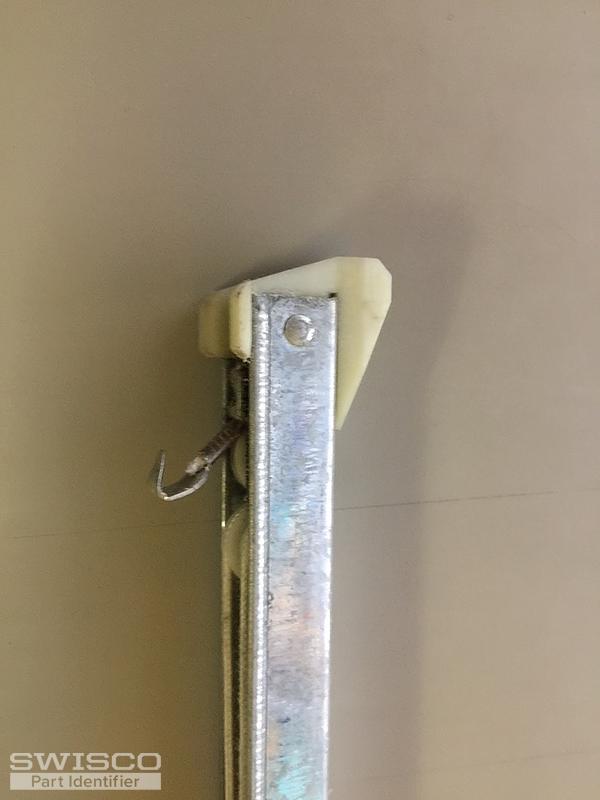

Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_1442.jpg
A quick learner from Vista, California 92084 says:
Here are the pics for the missing clip that catches the balance channel:

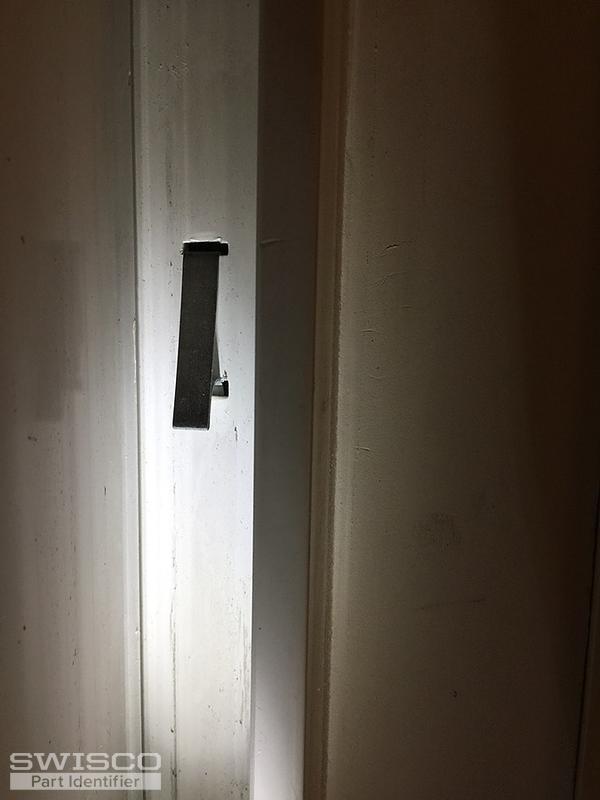

Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_1448.jpg

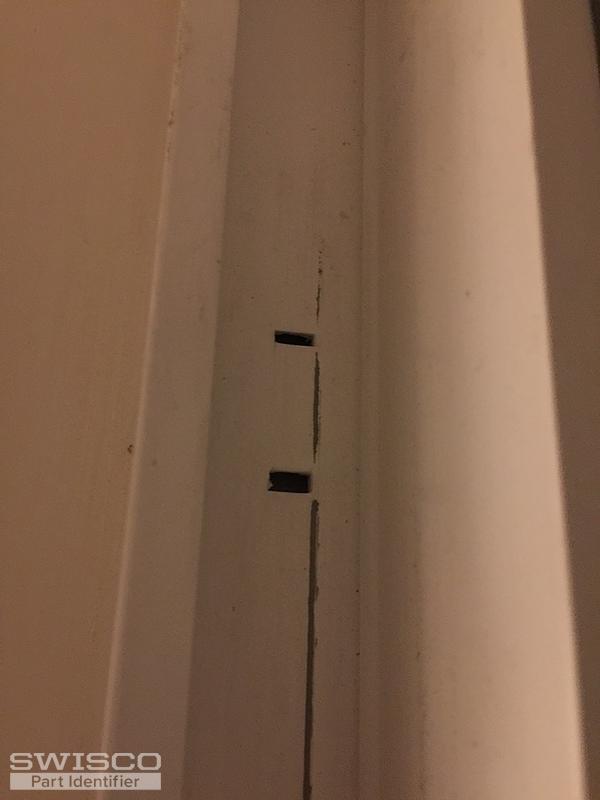

Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_1449.jpg

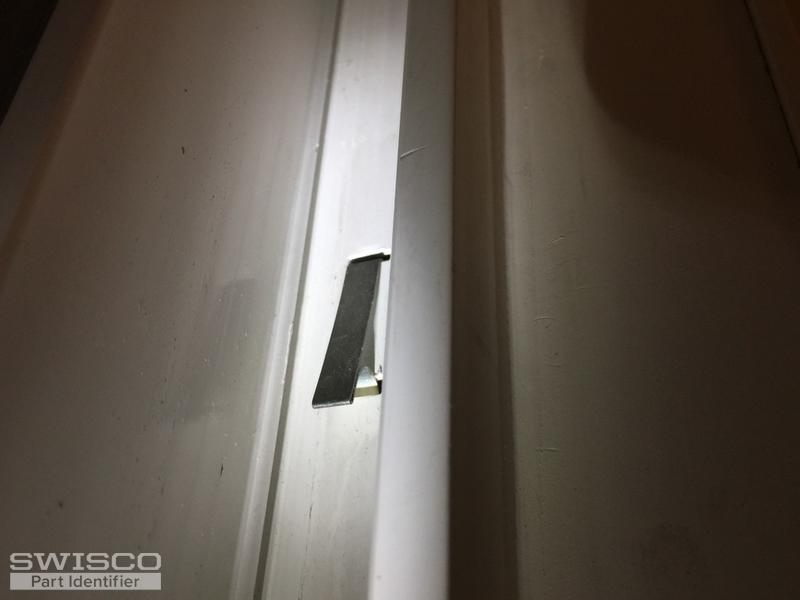

Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_1447.jpg
Profile picture of Casey
Casey from SWISCO responded:

With this combination of attachments, you could have either an S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3230 spring strength options for your replacement balances.

Also, take a look at our 16-002 take out clips used to remove the balances.

Thank you and let us know if you have any other questions or concerns.
