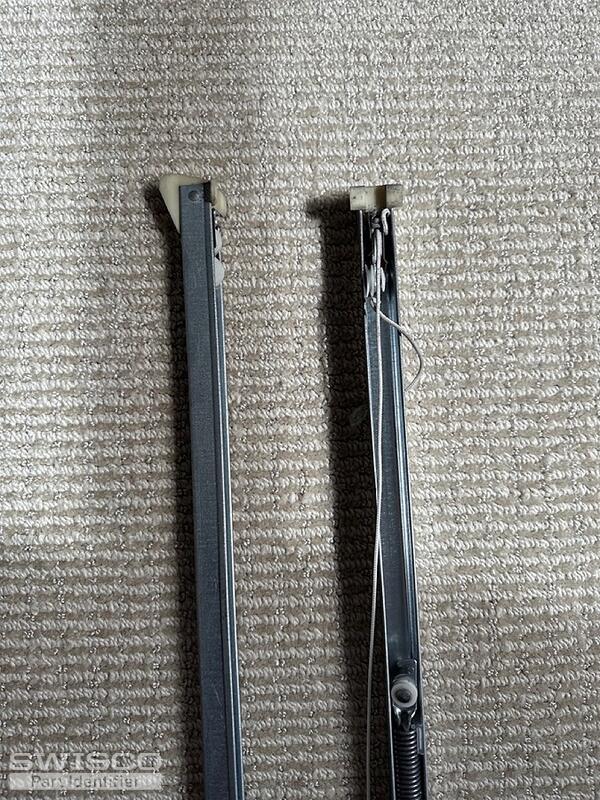

Please help me identify replacement channel balances.
Markings: 25 9 FV CMC 7
Width: 1/2"
Length: 26"
Thanks!
Replacement channel balances
Quick Learner from Alameda, CA
Apr 8, 2023 2:23 pm
4 user uploaded images
4 Replies
Emily from SWISCO
Apr 10, 2023 3:49 pm
Hi there!
Thanks for reaching out to us. It looks like our S380-26 or S385-26 channel balance matches what you have here. The important difference between these parts is the depth of the bottom fitting as shown below.
Your "25 9" stamp is outdated, though. With that said, you'll need to weigh your sash and refer to the chart under the product description on the S380 and S385 store pages to determine the appropriate spring strength option for your balance.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Alameda, CA
Apr 11, 2023 1:38 am
Thanks Emily!
The depth of my existing channel balance is 1 3/32". So that means I should purchase the S385-26 (with the correct weight range), correct?
The depth of my existing channel balance is 1 3/32". So that means I should purchase the S385-26 (with the correct weight range), correct?
Emily from SWISCO
Apr 11, 2023 8:21 am
Yep, you got it! The correct strength option will depend on the weight of the window sash.
