Replacement channel guides for an outside door window

Quick Learner from Davie, FL

Mar 21, 2021 7:49 pm

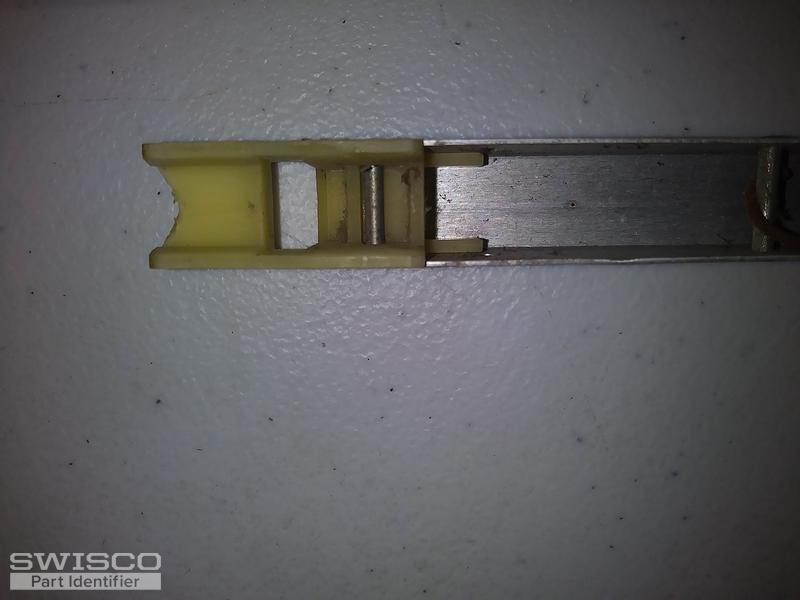

Need to ID channel guides:
1) metal length isx17"
2) stamping is "1610"
3) plastic top appears to be dimensionally like your 19-002
4)plastic shoe appears to be dimensionally like your 15-001

Also...will need 2 of plastic 'top plates" which have a screw hole and a sliding plastic piece which slides horizontally to open or close.

4 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Mar 23, 2021 2:03 pm

EXPERT

Thanks for posting! I'd say our 17" Series 390 Channel Balance S390-17 with stamp option 1610 looks like it would be a good match for what you need. As for the 'top plates' you're looking for, could you please upload a photo of that?

Quick Learner from Davie, FL

Mar 23, 2021 2:55 pm

Thanks Emily!

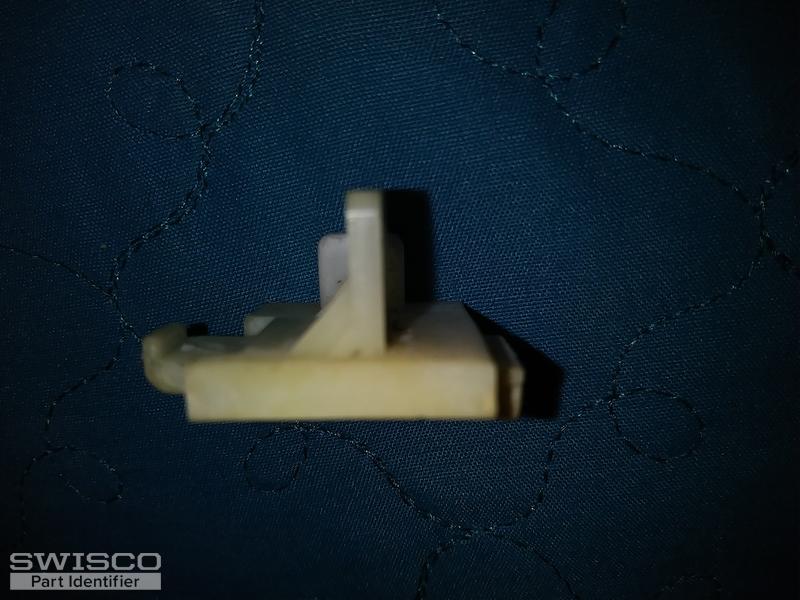

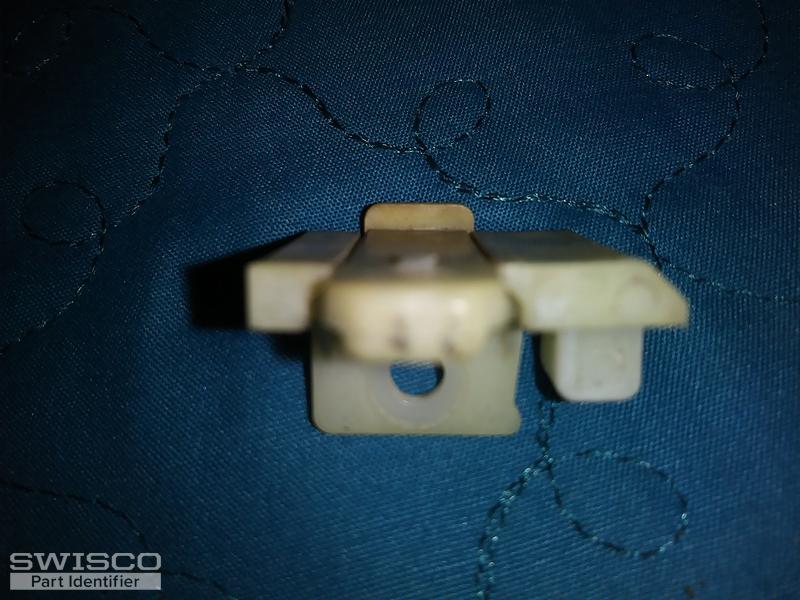

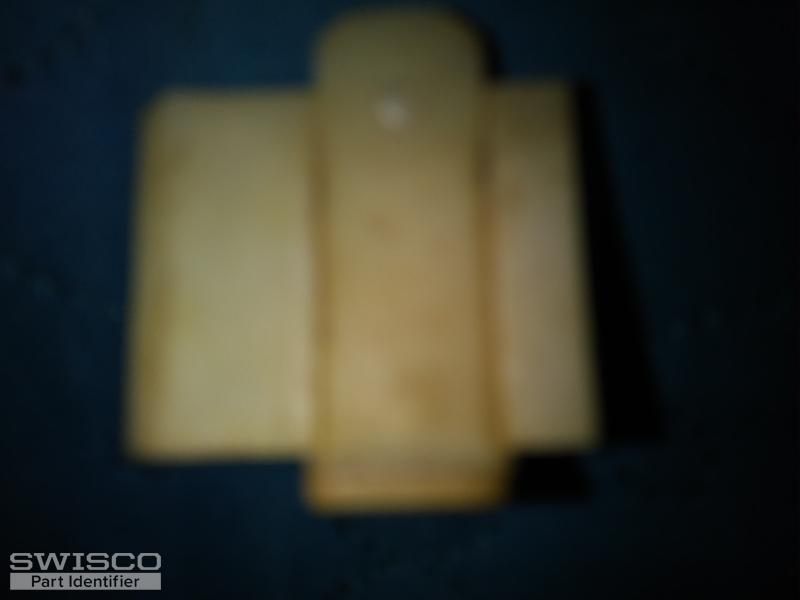

Here are some photos of the plastic top piece that fit into both the top sides of the channel in the widow itself.

BB

3 user uploaded images

Emily from SWISCO

Mar 24, 2021 10:24 am

EXPERT

Check out our Top Sash Guide Latch Pair 18-187 and compare the dimensions to what you currently have. Let me know what you think and if you have any other questions!
