Replacement coil assembly

A home owner from Indianapolis says:
September 4, 2021

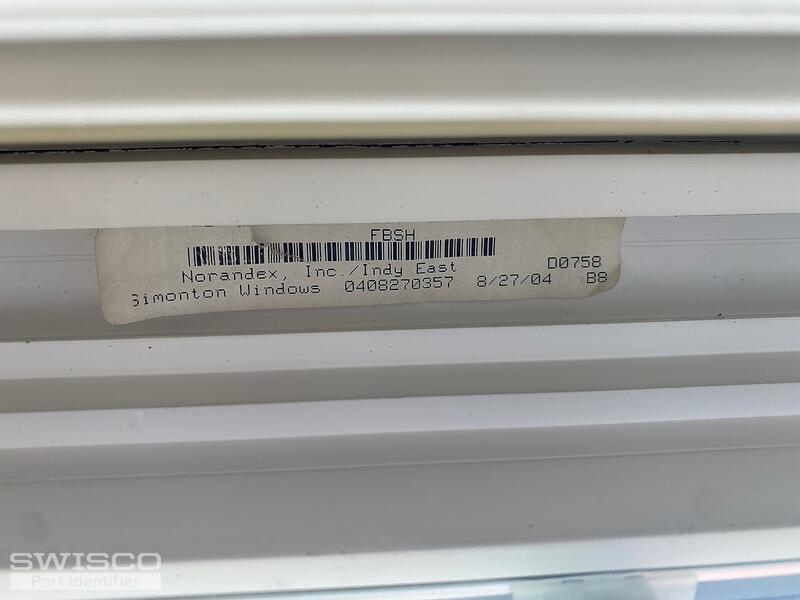

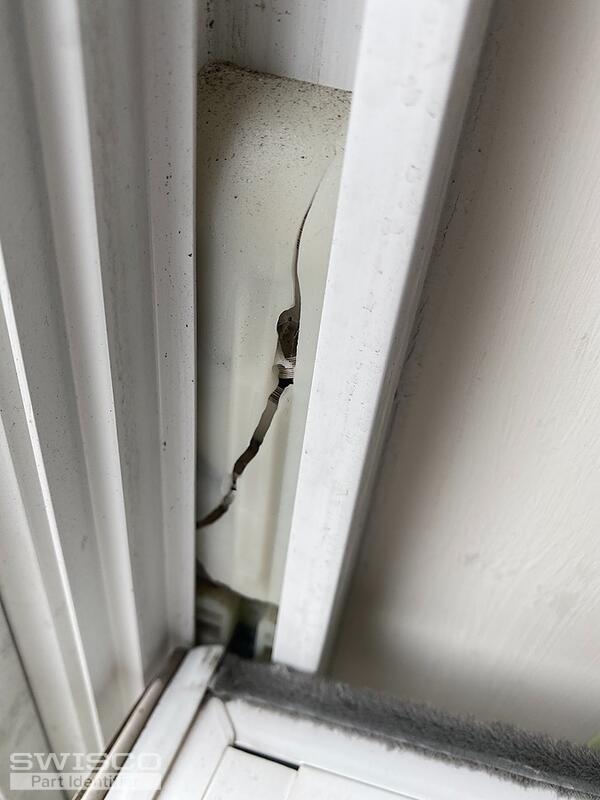

Both the left and right coil balances need replacing. The pictures are attached. I am needing to know which patient need. The window weighs about 8-10 lbs. There is a photo of the window model number. I can repair it without issue I just need the correct part. Thanks.
Thumbnail of the uploaded file named FCA0D522-182F-4527-AFA6-1918291F3687.jpeg
Thumbnail of the uploaded file named 5C0CDD59-EFCF-4074-9084-A7226BC0F14A.jpeg
Thumbnail of the uploaded file named 0377B48A-1A01-4517-B339-F04D1921B2BF.jpeg
Thumbnail of the uploaded file named 2ABB5D25-ED23-45AF-A826-B35E0E745DC0.jpeg
Thumbnail of the uploaded file named C302194D-C725-4FBD-BCB5-C1A31BF8EB48.jpeg
Profile picture of Tom
Tom from SWISCO responded:
September 10, 2021

Your pivot shoe appears to match our 15-199, which is compatible with two different sized coil springs: the 1/2" thick Series 160 and the 3/8" thick Series 165. I will need you to remove the old springs and measure them to confirm which size is necessary. That will also determine what plastic cover will fit best.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
