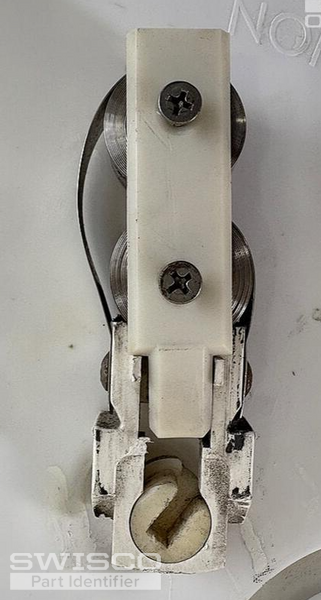

Replacement coil looks like series 190

Question

Hello, I have a broken coil spring I need to replace but I also need a stronger spring than the original because I had the window panes replaced and the new glass is thicker than the old. Im not sure how much the old sashes wieghed but the heaviest of the new ones are 25lbs. If I'm reading the numbers correctly the s190 series only goes up to 9 lbs...is there a 190 series that will do 12.5? Thanks in advance for your help. Regards, Patrick

Emily · Accepted Answer

Thank you for reaching out to us. We don't have this kind of weight rating for the Series 190, I'm afraid. However, if the window sash is 25 pounds, you can use two S190-640 6-pound springs on each side of the window. This totals 24 pounds of overall support, which should be fine for the window sash since the weights are within a pound of the actual sash weight. Note that you would also need the 15-181 to accommodate the double spring setup.

Please let us know if you have any questions!
