Replacement internal lock and handle set

A quick learner from NJ says:
I purchased the 82-217A and it did not work. but it doesn't fit. It's smaller than I need.
> I am attaching a picture of the current door handle and lock that is broken. I need help to find the right replacement either for the lock or the whole door handle.
Thumbnail of the uploaded file named image0.jpeg
Thumbnail of the uploaded file named image1.jpeg
Thumbnail of the uploaded file named image2.jpeg

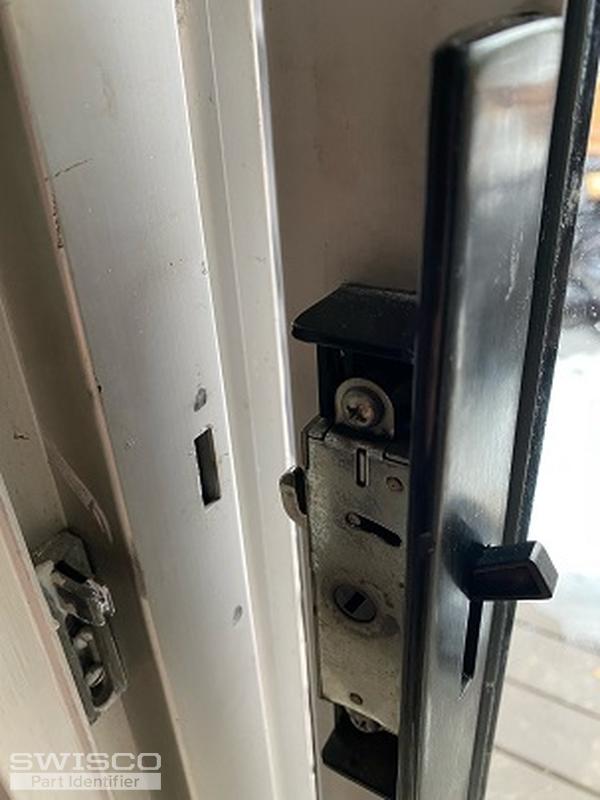

Thumbnail of the uploaded file named image3.jpeg

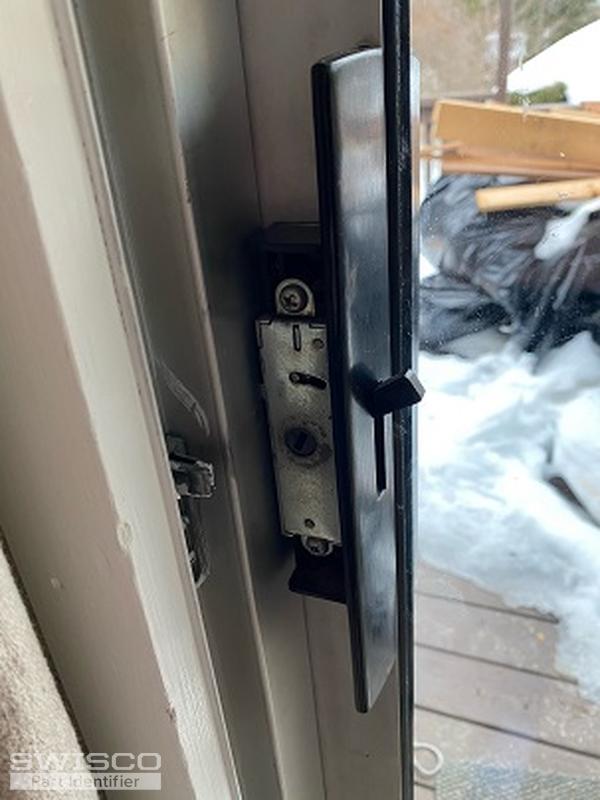

Thumbnail of the uploaded file named image4.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Sorry to hear the 82-217A didn't quite work. See our Return Policy here. Your old style handle is no longer available. I would suggest installing the surface type handle 82-005 handle set. I believe you might need to drill new mounting holes. Take a look at the suggested handle and related parts along with the related information and videos.

82-005 : Surface Mount Sliding Door Handle Assembly, 4-15/16
Surface Mount Sliding Door Handle Assembly, 4-15/16"
82-005
$23.54
VIEW >
82-042 : Outside Pull
Outside Pull
82-042
$10.74
VIEW >
82-217A : Patio Door Inside Latch, 2-11/16
Patio Door Inside Latch, 2-11/16"
82-217A
$11.25
VIEW >
Reversing the thumb lock on the Swisco 82-005 Sliding Door Handle
Reversing the thumb lock on the Swisco 82-005 Sliding Door Handle
VIDEO
WATCH >
How to Replace a Surface Mount Handle Assembly
How to Replace a Surface Mount Handle Assembly
VIDEO
WATCH >
How to maintain a sliding glass door
How to maintain a sliding glass door
GUIDE
READ >
