Replacement lock for BF Rich patio door : SWISCO.com

Quick Learner from USA

Oct 30, 2022 11:38 am

Hi,

I need to replace the lock on a BF Rich patio door. The handle and all hardware is fine. I just need to re-key the lock. Do you have a replacement lock?

5 user uploaded images

10 Replies

Casey from SWISCO

Nov 3, 2022 10:09 am

Hello,

I suspect that you may be able to use the 82-310 key lock for your repair but I would like to see a straight-on photo of the mortise lock in the center of the door to confirm. Thank you.

Quick Learner from USA

Nov 3, 2022 11:03 am

lock picture

2 user uploaded images

Casey from SWISCO

Nov 3, 2022 11:19 am

Thanks for getting back to us. Your mortise lock resembles the 82-265, which would be compatible with the 82-310 key lock.

Alternate image for 82-265

Alternate view of 82-310

Quick Learner from USA

Nov 3, 2022 11:46 am

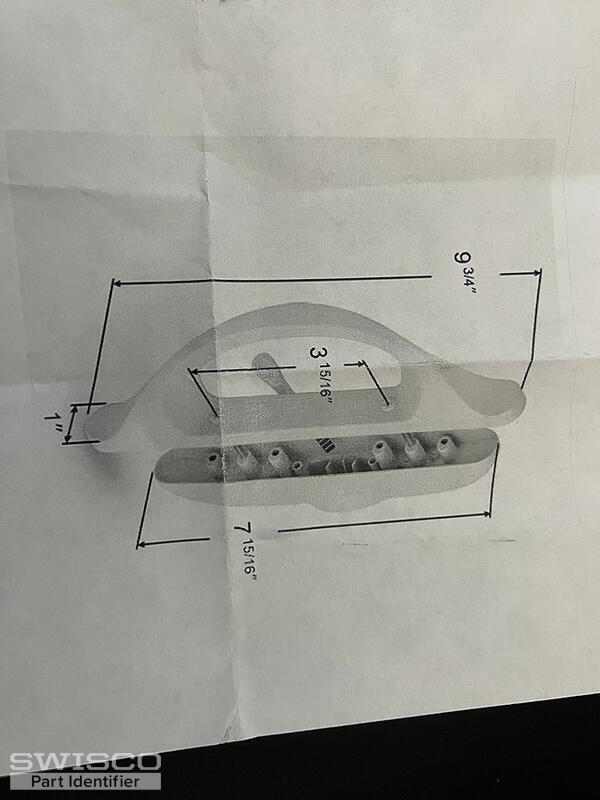

Thank you. The 82-310 keylock will fit into your 82-091 handle, the handle which measures the same as the door handle I have?

1 user uploaded image

Casey from SWISCO

Nov 3, 2022 12:36 pm

If your specifications match the 82-091 handle set, then you would use the 82-092 key lock, which is also compatible with the 82-265 mortise lock.

Quick Learner from USA

Nov 3, 2022 1:02 pm

Hi Casey, sorry for all the back and forth but I want to make sure I order the correct replacement key lock.

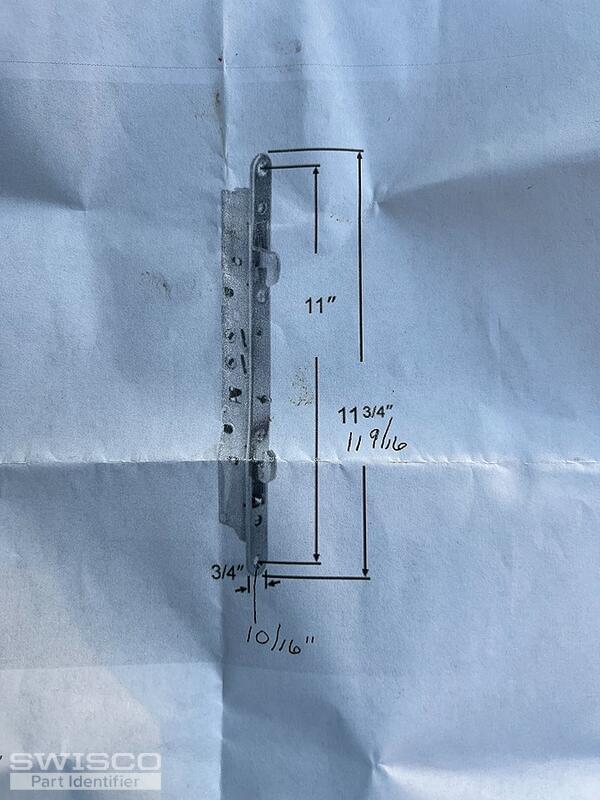

The mortise lock I have isn't exactly like your 82-265 as I showed on the image I sent. Although the height between the top and bottom screws matches the 11" of the 82-265, the total height is smaller - mine measures 11 9/16" (your 82-265 is 11 3/4")and the width of mine is 10/16" (your 82-265 measures 3/4").

Are you still sure that 82-092 key lock will work with my handle and the mortise lock I have?

Tom from SWISCO

Nov 3, 2022 1:49 pm

We're sorry for the confusion. Let me see if I can clarify. I agree with Casey's original recommendation of the 82-030 and 82-310 key lock since the 82-091 handle set that you were looking at is for a very specific application, while the 82-030 is a more versatile replacement.

I understand that you are concerned about some differences in the dimensions of your mortise lock but since the style is very similar to the 82-265 and you are not ultimately replacing the mortise lock, the 82-310 would be our best replacement option for your repair. You are welcome to try the 82-310 with your original handle and if it doesn't fit for some reason, the next best option would be to replace the entire handle set with the 82-030 and 82-310. If you decide to give it a try and it doesn't work out for some reason, our return policy can be found here.

Quick Learner from USA

Nov 29, 2023 9:14 am

Back on 11/3/2022 I replaced the key lock on my BF Rich door and your item 82-310 was the correct key lock replacement. I now have to replace the patio door handle and was about to order your 82-030 (this is what you suggested to replace mine with if replacing the key lock in the original door lock didn't work) however, I don't see that it is a keyed door handle. Could you please confirm the 82-030 is a keyed patio door handle or let me know which handle I should order? All the pictures previously submitted on this thread are the same door handles that I am working with and have to replace. The plastic between the screws on the inside of the door handle on the one patio door cracked and came off.

Casey from SWISCO

Nov 30, 2023 8:04 am

The 82-030 does not come with a key lock but we do offer the 82-030A keyed handle set with a centered thumb latch. Take a look and let us know if you need anything else.

Dimensions for 82-030A
