Replacement of Tilt Hardware
Quick Learner from Seaford, DE
Jul 31, 2023 4:46 pm

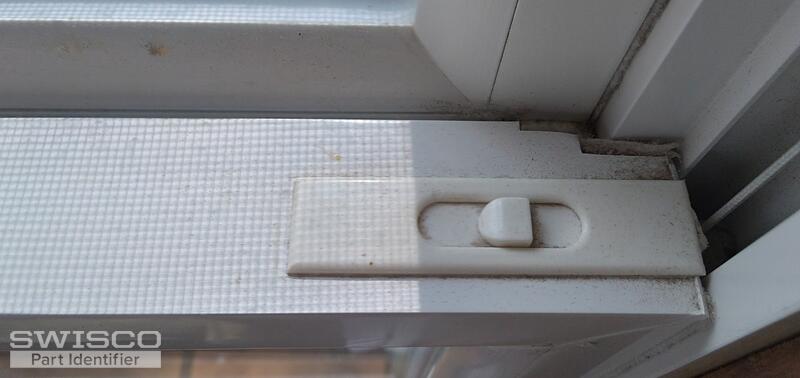

I would like to replace the broken external tilt latch for Series: 5000 Double Hung, Type: VSDH, Code DVW - K - 7 window. Pictures attached. I would like 3 right and 3 left replacements.
2 user uploaded images
4 Replies
Jasmine from SWISCO
Aug 1, 2023 12:28 pm
Thanks for reaching out! It is a bit difficult to tell based on the photo of the the top of the latch alone, however, I believe you may have our 26-393B Tilt Latch Pair. To confirm if these are the correct replacement, carefully review and compare the design and dimensions from the diagram below to your existing latches. You'll want to pay attention to the little nubs on the side of the tilt latches as well. Take a look and see what you think.

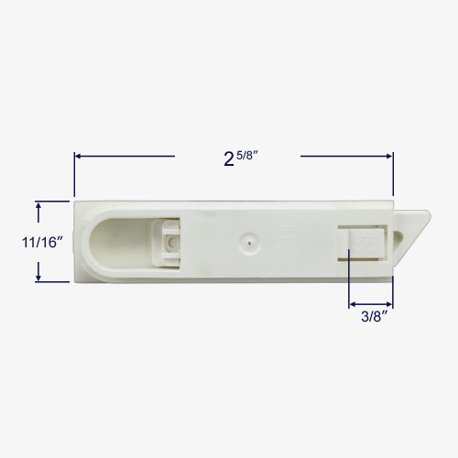

Dimensions for 26-393B

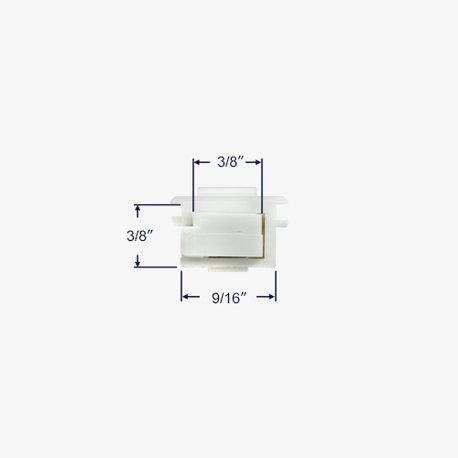

Alternate view of 26-393B
Quick Learner from Seaford, DE
Aug 2, 2023 6:34 pm

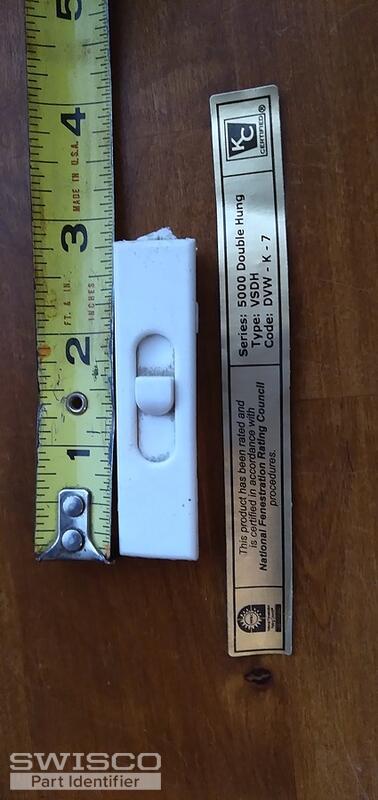

Thanks for getting back to me so quickly. My tilt latach has all of the same dimensions as the one that you have shown and looks exactly the same except for the length. Mine measures 2 and 11/16 inches long. Do you have a Tilt latch pair that is this length?
