Replacement of Window Casement Operators

Handy Person from California

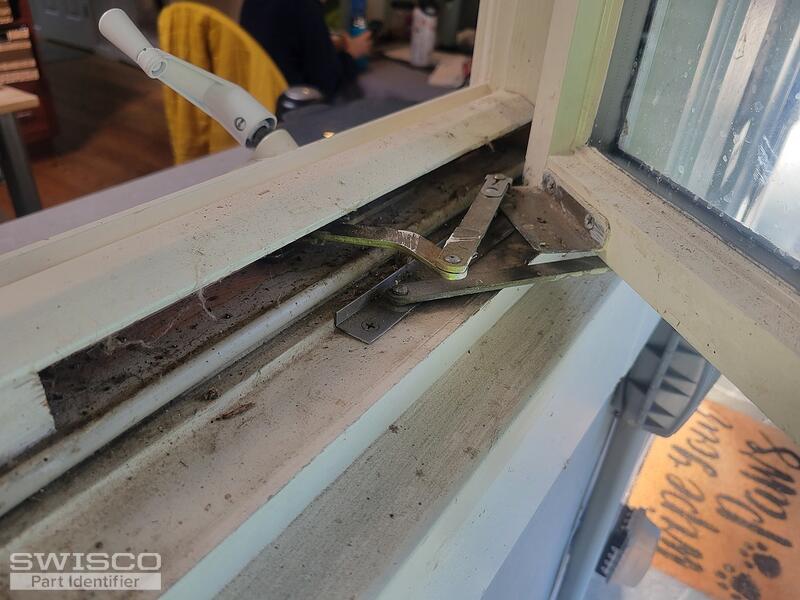

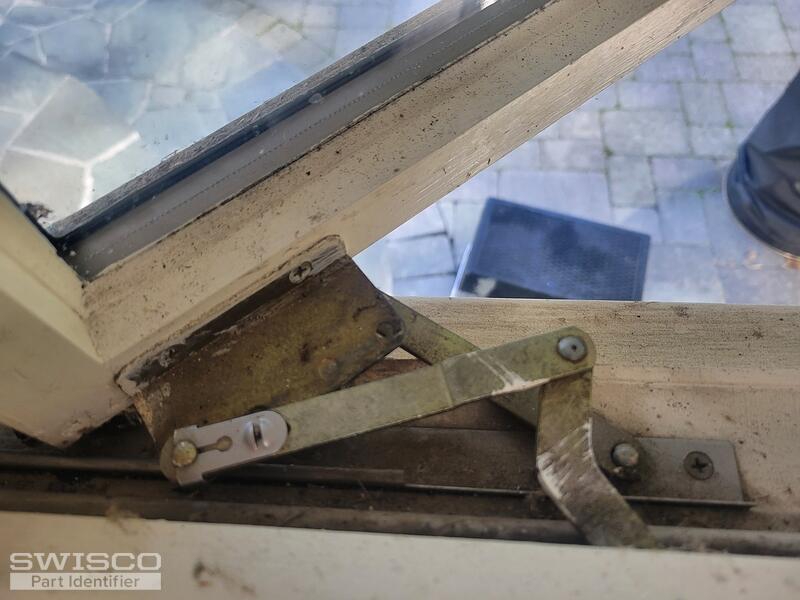

Hi, I am replacing two Truth casement operators.  One is a dual-arm operator (39-02); the other is a single-arm operator (39-06).  Before I ordered them, I wante do make sure that I am ordering the right parts.  I attached a few pictures of the current operators.  I would appreciate your advice.
Thanks,
Dan
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

For your dual arm operator, your photos resemble the Entrygard 39-031 and 39-032. Note that the shorter link arm measures 4-7/16" as shown below.

Dimensions for 39-032
Dimensions for 39-032

For the single split arm operator, see the 39-056 and 39-036 shown below. Take a look and confirm the specifications match yours. We also offer the 39-107FK handle and cover kit for both pairs. Thanks for posting!

Dimensions for 39-036
Dimensions for 39-036
