Replacement of sliding glass door handle

Quick Learner from Miami

Apr 28, 2022 11:38 am

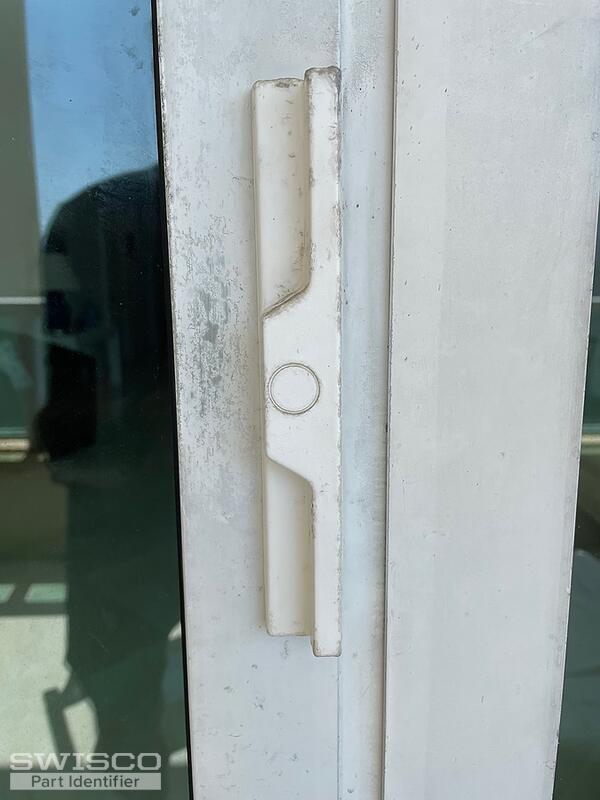

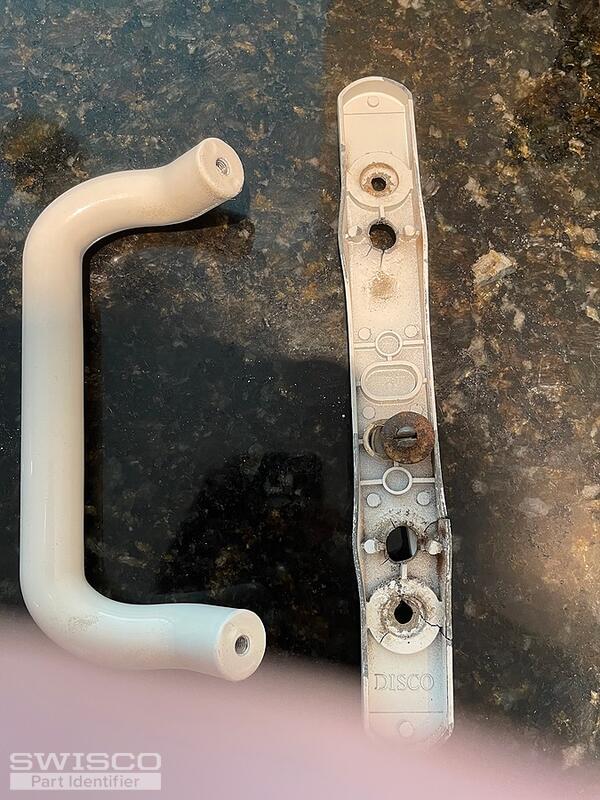

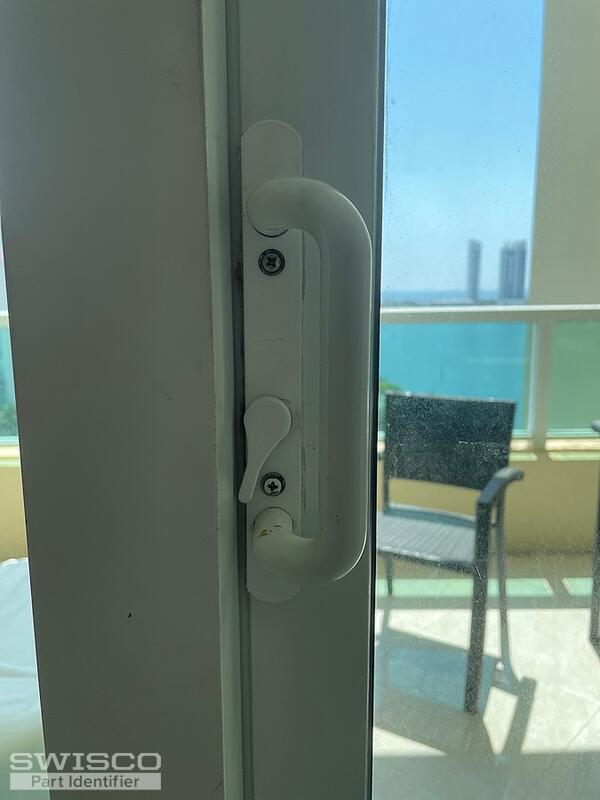

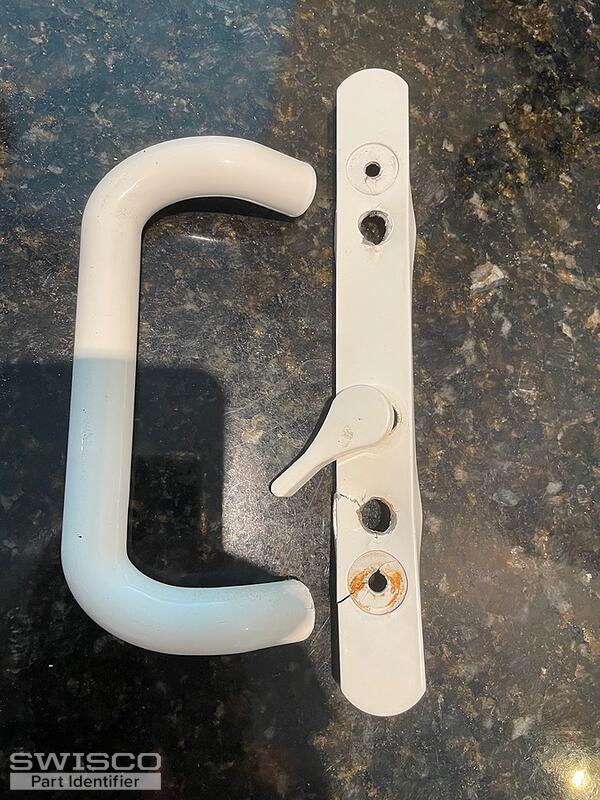

Old part brand DISCO. 5.5 inch center line handle holes. 4.0 inch center line door connection holes. Pull from left to right to open. White color.

4 user uploaded images

4 Replies

Emily from SWISCO

May 2, 2022 10:50 am

Hello!

Your handle reminds me of our 82-089 with 3-15/16" hole center spacing, but it's not exact. Look over our photos and dimensions and see what you think. Note, this handle set is designed to work with a mortise lock like our 82-218 or 82-265. If yours differs, I'd like to see it to confirm if it's compatible.

Quick Learner from Miami

May 2, 2022 11:29 am

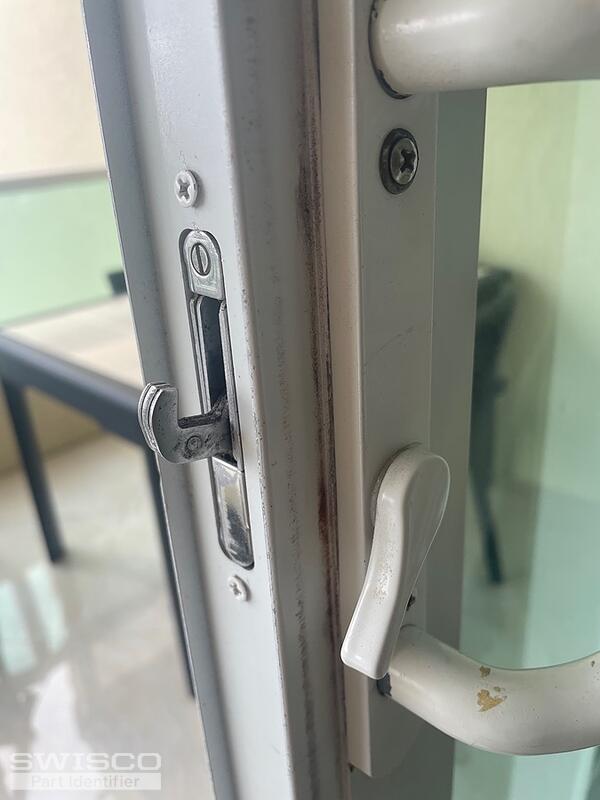

This door slides from right to left. Door thickness is 1.5 inches. Here's a picture if the lock

1 user uploaded image

Emily from SWISCO

May 2, 2022 12:34 pm

Great! Your mortise lock looks like a dead ringer for our 82-218 which is fully compatible with the 82-089 handle set.
