Replacement part

A quick learner from Napa Valley, California says:
Looking for the following. The markings on the channel balance are:

28-3 AG5 CMC 54

It is 1/2 inch wide and 29 inches long
Profile picture of Casey
Casey from SWISCO responded:

The number you're referring to only indicates the spring strength on the balance and does not help with the identification of the balance. If you have not done so already, you will need to remove the balance completely out of the window. From there, send us some photos showing the complete balance including the nylon fittings on both sides. This will help us determine which balance can work for your windows.

A quick learner from Napa Valley, California says:
Pls see attached and advise.
Thumbnail of the uploaded file named 5E463091-AB5F-45FC-A346-D9F560873A65.jpeg
Thumbnail of the uploaded file named 8D9AE467-FF4A-41B7-AC60-721B3A00E437.jpeg
Thumbnail of the uploaded file named E0C39C8F-69FE-420A-AC2B-57B3DD9C3BD8.jpeg

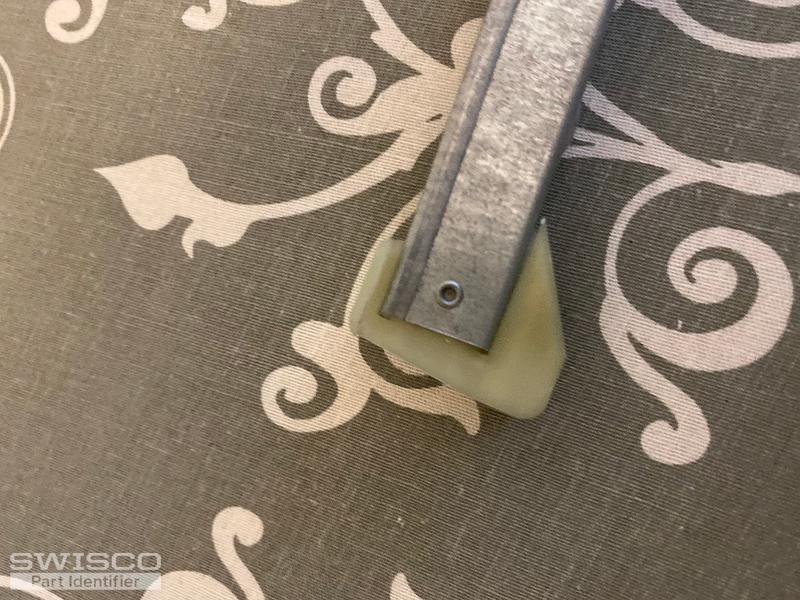

Thumbnail of the uploaded file named A4104488-B896-4B50-B6E6-496A671C01A5.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Thanks for your photos. Your balance looks close to both our S380-29 and S385-29. The difference between these two is the depth measurement of the bottom balance shoe. For the Series 380, the depth of the bottom shoe measures 1" and for the Series 385, it's 1-3/32". Measure the depth of your bottom balance shoe, like in the diagram below, to determine which balance would make the best match. Whichever one chosen will go with the 2830 option.

Alternate view of 15-004
Alternate view of 15-004
A quick learner from Napa Valley, California says:
It's 1 inch
Profile picture of Casey
Casey from SWISCO responded:

Ok, great. If your depth measures 1", then you can go with the Series 380 balance that we mentioned in our previous reply.
