Replacement part for Awning Window rotor mechanism

Home Owner from San Francisco
Sep 24, 2020 2:23 pm
Hi,
I need a replacement Awning window dual arm operator. The manufacturer of the window and awning operator is not known. What would be the replacement Awning operator for my window Width 18.5in x Height 19.5 in.

Awning window dual arm crank operator with single pull lock. The operator measures 16 inches (measured by homeowner) in overall length for an approximate (measured by not approximate since mechanism is broken and does not operate for exact overall length measurement) sash opening of 10inches

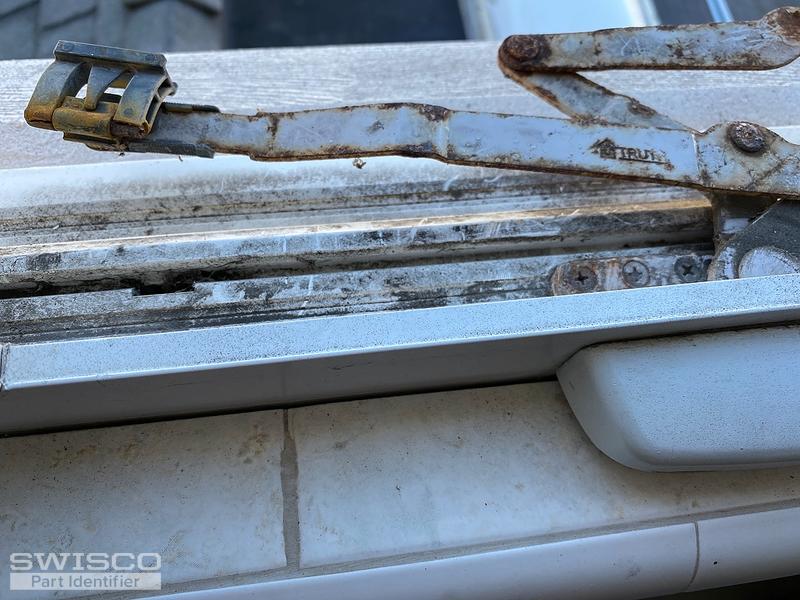

The awning operator does have the word barely legible - "Trut" as show in pic IMG_6402.

The glass manufacturer is HARTUNG GLASS has serial number AN21Z971.1-198416CFR 1201.II
The inside of the Window seal has date 27FEB2003 written likely date of window manufacturer.
IMG_6399 IMG_6400 IMG_6401 IMG_6402 IMG_6404
5 user uploaded images
2 Replies
Home Owner from San Francisco
Sep 24, 2020 5:31 pm
Additional Info:

1. Upon closer inspection, the manufacturer is TRUTH.
2. To clarify the operator overall length is 16inches with each ARM about 8 inches.

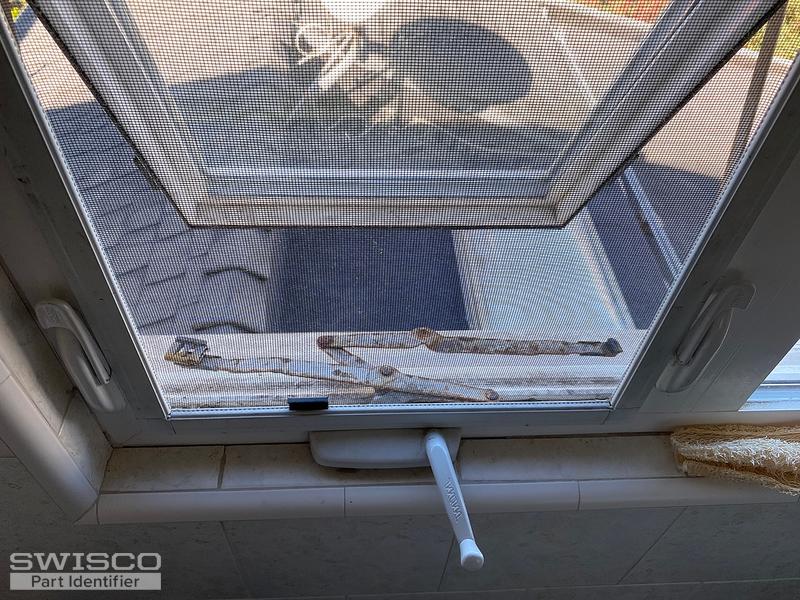

3. New Picture IMG_6404 shows how the Dual ARM operator worked when fully extended to about 10inches of opening.
4. My TRUTH AWNING operator seems to be a mix of Product Code: 39-140 and Product Code: 39-453 with Pivot Shoe Roto with each ARM length is 8in for overall ARM length 16inches.

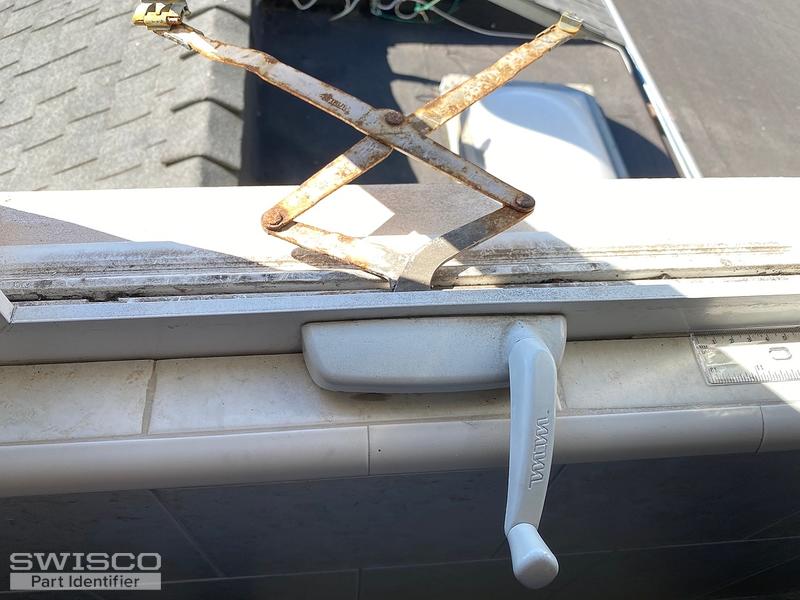

IMG_6405
1 user uploaded images
Tom
Tom from SWISCO
Sep 29, 2020 10:54 am
SWISCO
EXPERT

Based on your most recent photo, I am very confident that you have an older version of our 39-239B awning operator. Look it over and let me know if you agree. We also sell the 39-451 cover separately.
