Casey from SWISCO responded:
June 6, 2022

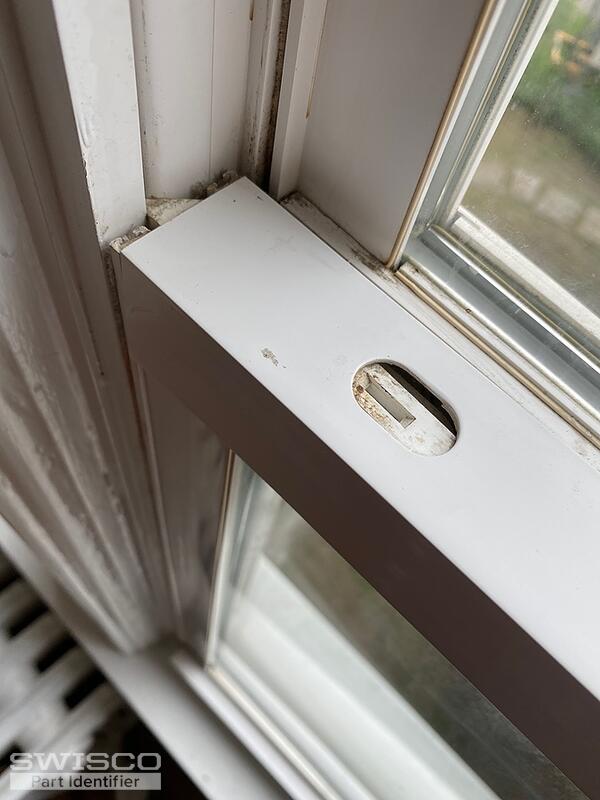

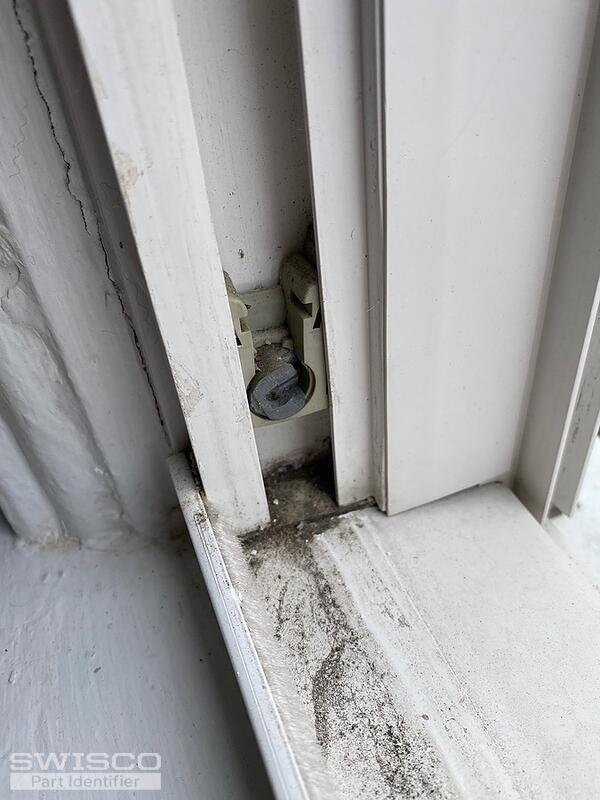

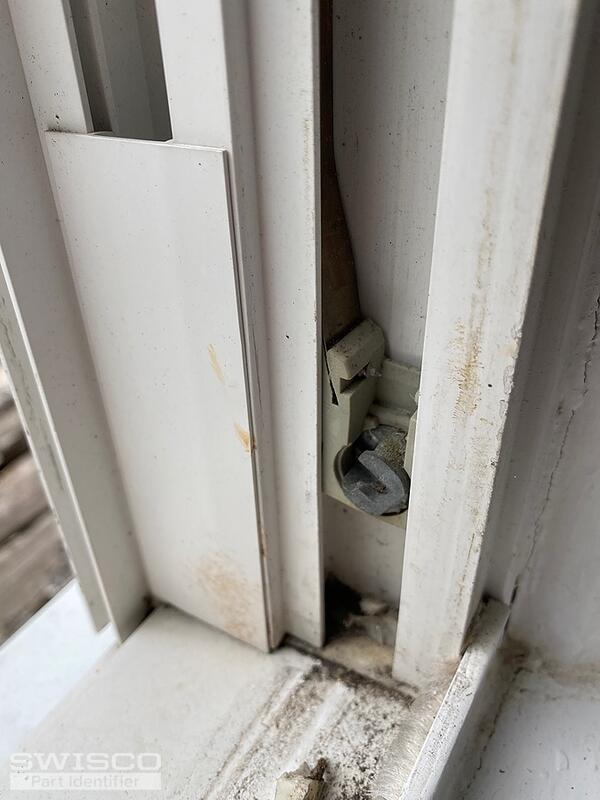

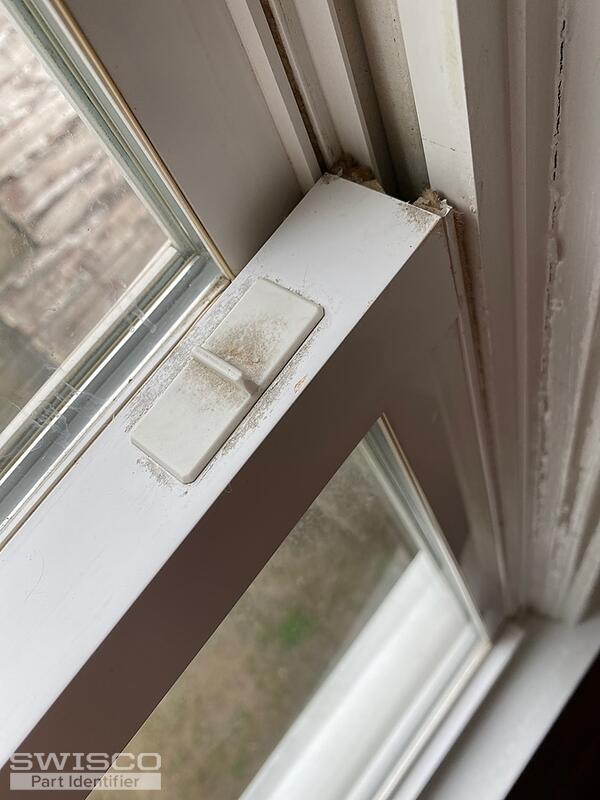

Hello, We'd be happy to help but we would need to see your tilt latch and actuator completely removed from the window, along with written out dimensions, to compare to our inventory. What I can see of your pivot shoe resembles the 15-177, but you'd need to remove it from the window to confirm that the style and dimensions match up to ours. As for the pivot bar, I don't see an exact match in our inventory but I'm going to show this to one of our senior experts to research while we wait for more photos of your tilt latches. Thank you! |
Paul from SWISCO responded:
June 7, 2022

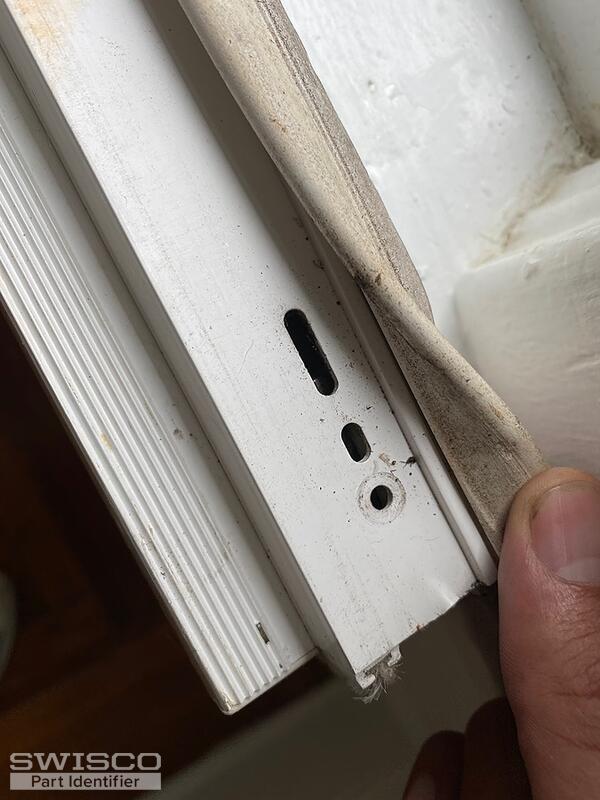

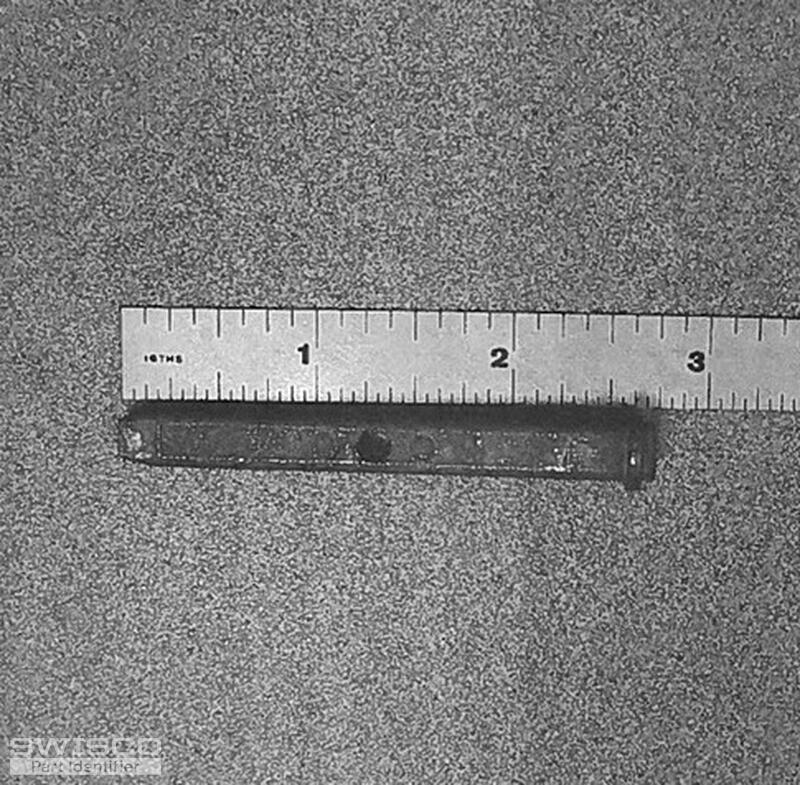

I agree with Casey's recommendation since most Alside vinyl windows do use the 15-177 pivot shoe with 1/2" wide Series 152 coil springs. The closest tilt bar we can find would be the 26-226 but you'll need to determine if the backset of the installation hole will align with your sash. The overall length isn't as important since there is room inside the sash to compensate. Unfortunately, your internal tilt latches are no longer available. We suggest the 26-132P where you use the cut-out to tilt in the window sash. Take a look and see what you think. |
