Replacement parts

A quick learner from California says:
June 7, 2019

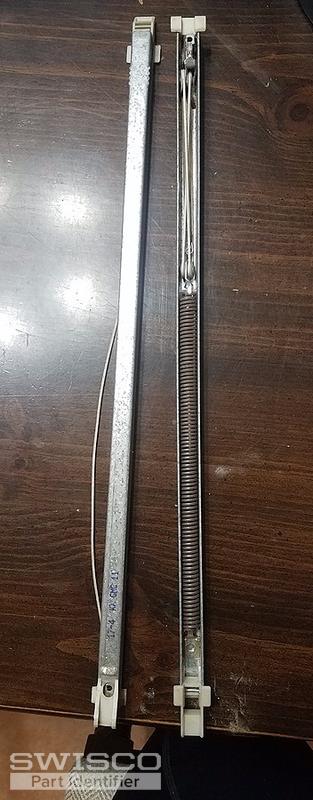

My single hung window needs the balance springs replaced. The metal portion measures 18". The stamp says 17-4 KX CMC 11. I do not know the weight of the sash and I do not know how to remove them from the window panes. I was hoping the 17-4 would be equivalent to the 18" Series 385 Channel Balance 1740?
Thumbnail of the uploaded file named 20190607_101014.jpg
Profile picture of Bob
Bob from SWISCO responded:
June 7, 2019

Thanks for posting. This looks like either the S380-18 or S385-18. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see which matches best. You are right, 17-4 conforms to our stamp option of 1740.
18" Series 380 Channel Balance
18" Series 380 Channel Balance
S380-18
$9.34
18" Series 385 Channel Balance
18" Series 385 Channel Balance
S385-18
$9.34
