Replacement parts

A contractor from California says:

May 6, 2021

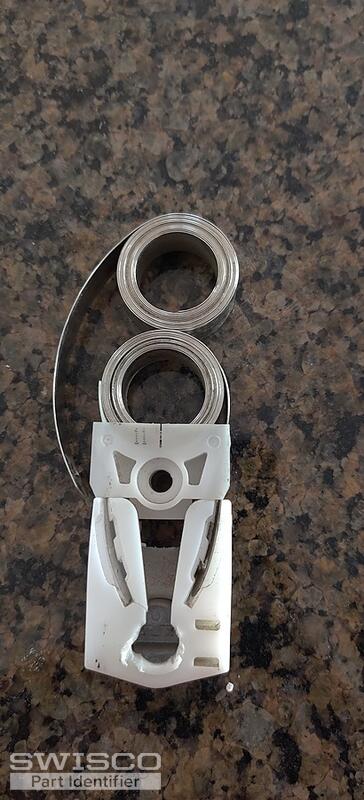

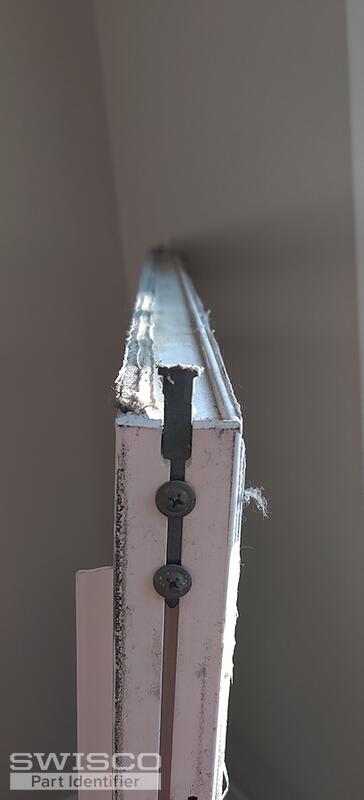

Hi guys , would like to know if your parts are alike to the ones on the picture; tks.

Thumbnail of the uploaded file named 16203511302663750183576274196402.jpg

Thumbnail of the uploaded file named 16203512080557365494771097785525.jpg

Paul from SWISCO responded:

May 10, 2021

Hello,

The manufacturer discontinued the coil balance system in your photos and replaced it with the new S140-11 . We also suggest changing the pivot bar to the 26-405 , which should cause less damage to the metal pivot cam. Thanks for posting!

A quick learner from New Jersey says:

November 21, 2021

Hi,

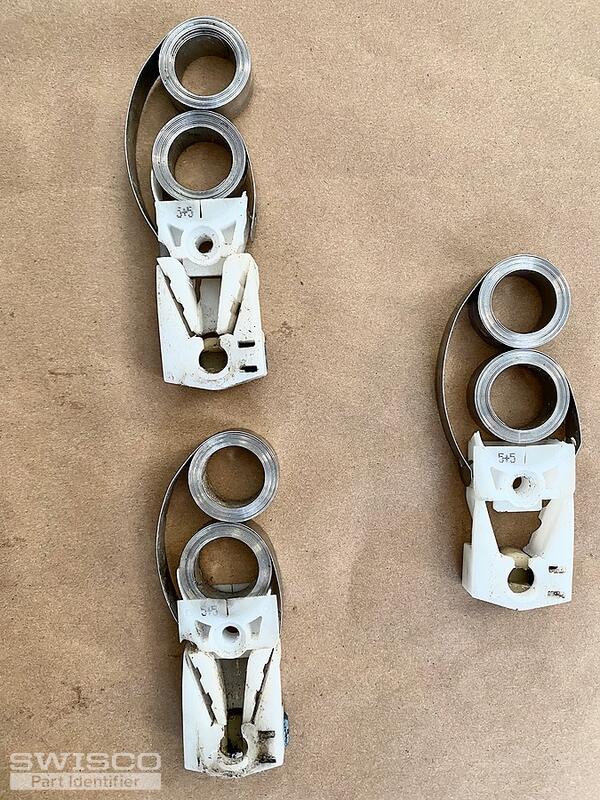

Please see attached image, and tell me what kind of coil balance will fit my window, I need order two for left side, and one for right side. Or they work for both side?

David

Thumbnail of the uploaded file named 38A1F886-8AF9-44A6-8C03-C2C1CF473856.jpeg

Paul from SWISCO responded:

November 22, 2021

Hello,

It looks like you have the same coil balances as the customer that started this thread, so the S140 quick-tilt assembly should work for you as well. Based on the 5+5 stamp on your housing, you may need the S140-10 for your window as long as the sash weighs 19-20.99 lbs.

11 lb Series 140 Quick-Tilt, Dual

S140-11

$11.45

Rounded End Pivot Bar, 2-7/8"

26-405

$1.72
