Replacement parts

A handy person from PA says:

I believe I need 8lb Series 140 quick Tilt. Not sure if I need the single coil or double coil blocks. My window is 34 x 53.

The inside depth is 5/8" and the inside width is  1 5/8"

Thank you

Greg G

Thumbnail of the uploaded file named 42C569CE-4063-4FB0-9E2B-ECF7681064F5.jpeg
Thumbnail of the uploaded file named F0BD109B-4D27-47E2-8B33-7106D8A2021F.png
Profile picture of Tom
Tom from SWISCO responded:

Hey, Greg. I cannot confirm if the Series 140 is what you want without seeing the complete assembly, but based on just the cover I would say it is a good bet. You will need to compare the photos and dimensions we show on its store page to your whole assembly to know for sure, though.

A handy person from PA says:
Here are more photos of my window parts I need.
Not sure if I need a one coil or two cool series 140 . Window size is 34"W x 53"H

Thank you

Greg G
Thumbnail of the uploaded file named D768B508-1564-421B-AED6-7656B1B53EF8.jpeg
Thumbnail of the uploaded file named 004E3214-D6C1-4C92-A860-F28ABD9A8BFF.jpeg

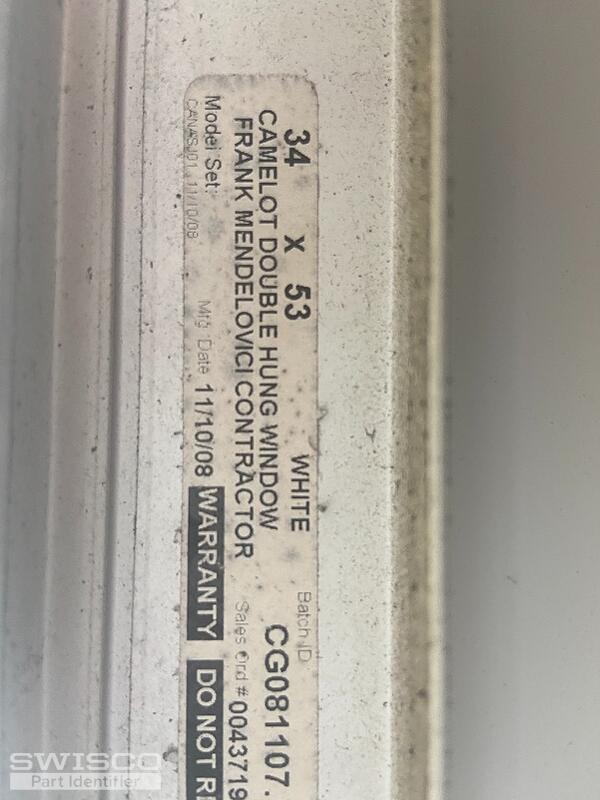

Thumbnail of the uploaded file named AB06AF27-D46F-44EA-B230-E580AE0E7232.jpeg
Profile picture of Tom
Tom from SWISCO responded:

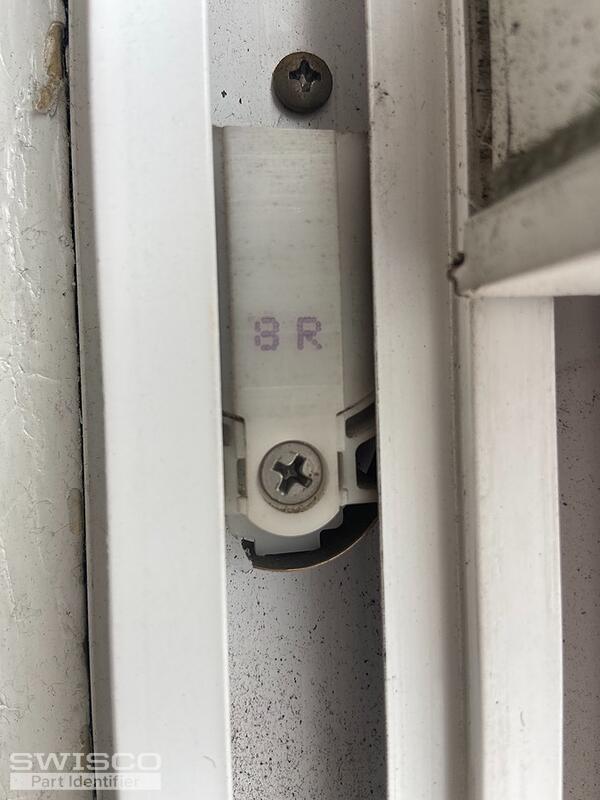

Thanks, Greg. Seeing these new photos, I do think our Series 140 is just what you're looking for. Since the old stamp reads "8" then you want the S140-8 .

A handy person from PA says:
Tom
Thanks for your reply. I will order a L and R S140-8 . But do I need a single coil or a double coil for my size window?

Thanks

Greg G
Profile picture of Tom
Tom from SWISCO responded:

Your photos only show a single coil assembly, but to tell the truth it doesn't really matter. Your old assembly is rated to carry 8 pounds, same as our S140-8 . As long as it can hold 8 pounds per side then it doesn't matter if you have a single coil setup, double, or more. What's important is tension, not the number of springs.

A handy person from PA says:
Thank you
