Friend from los angeles

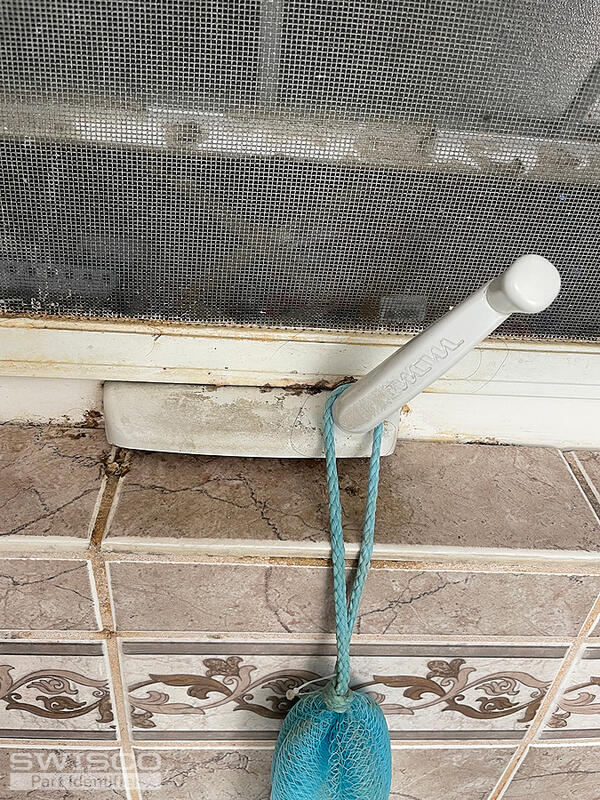

Hi, I am looking for a replacement dual arm operator mount with cover an handle for an old window. I don't know what replacement part to get.
4 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

Thanks for writing in! From what I can see in your photos, I believe we can provide you with a replacement for the awning window operator you need. To confirm this, I'll need to see a photo of the entire operator. Especially the arms and how the operator attaches to the bottom of the swinging window sash.

Please don't hesitate to reach out with any questions in the meantime.

Friend from los angeles

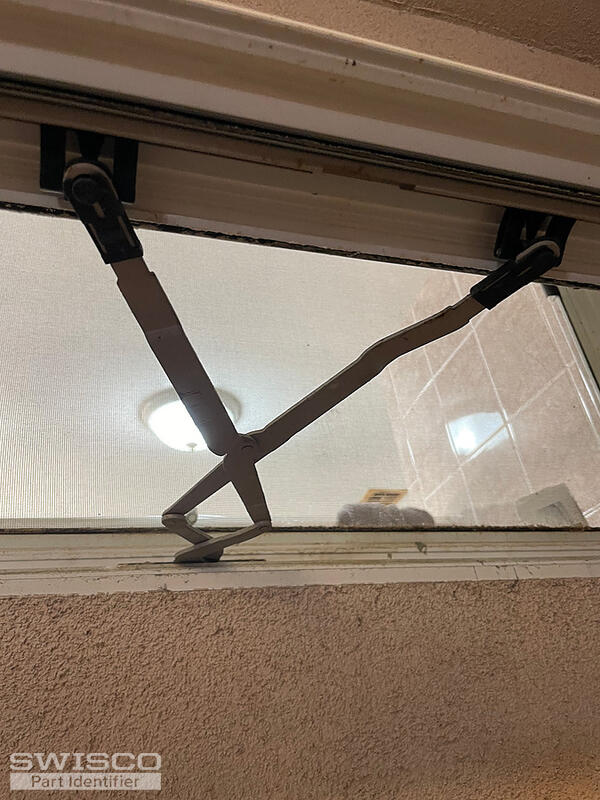

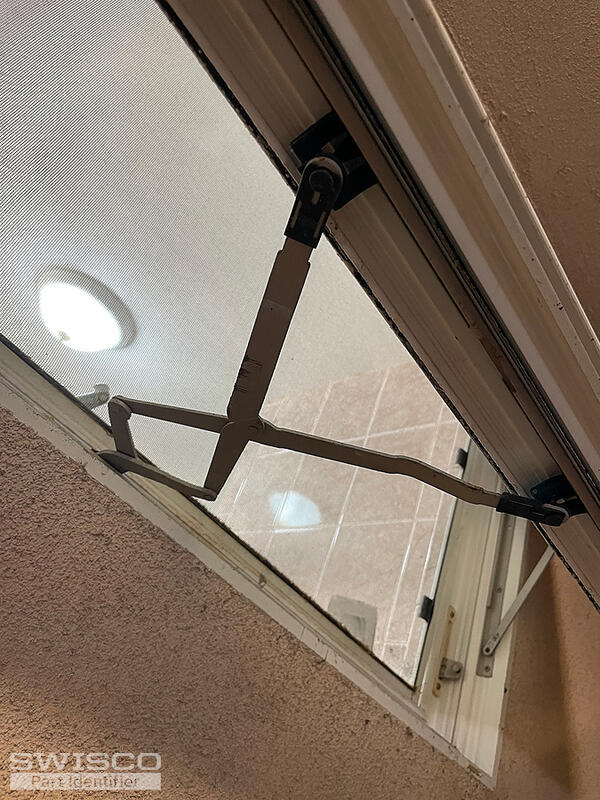

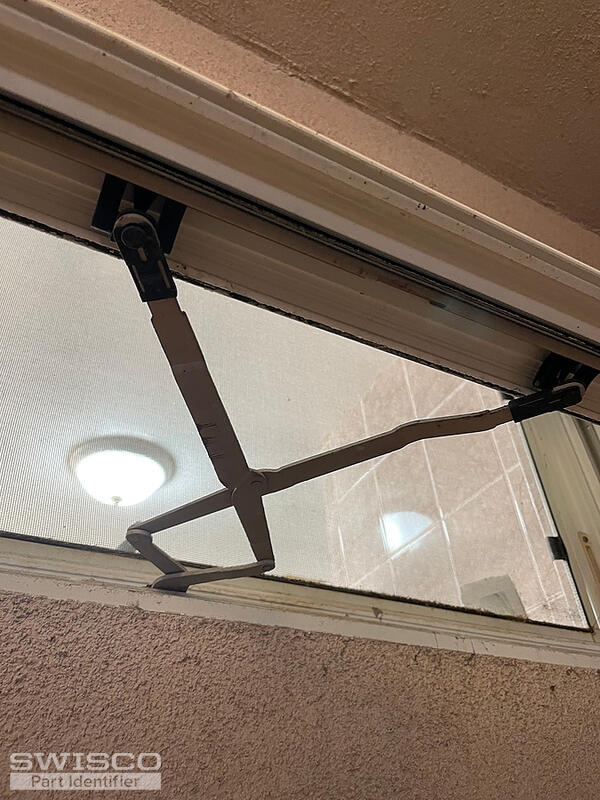

Thank you for the reply. I hope these pictures help.
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. Your operator appears to be a much older version of the 39-239B Encore Awning Operator we have; the stainless steel version is the 39-239C. To determine if this is the right replacement for your window, carefully compare the dimensions and design.

This operator is sold with the compatible detach clips but the 39-536 Truth Hardware Pivot Slide Assemblies are sold separately. This slide on the 39-556 Maxim Awning Stainless Steel Track.

Please note the cover is sold separately, as well. You'll need either the 39-375 folding kit or the 39-451 non-folding kit.

Dimensions for 39-239B
Dimensions for 39-239B

Alternate view and dimensions for 39-239B
Alternate view and dimensions for 39-239B

Alternate view and dimensions for 39-239B
Alternate view and dimensions for 39-239B
