Replacement parts dual coil constant force balance

Quick Learner from Bellefontaine, OH
Aug 30, 2024 12:03 pm

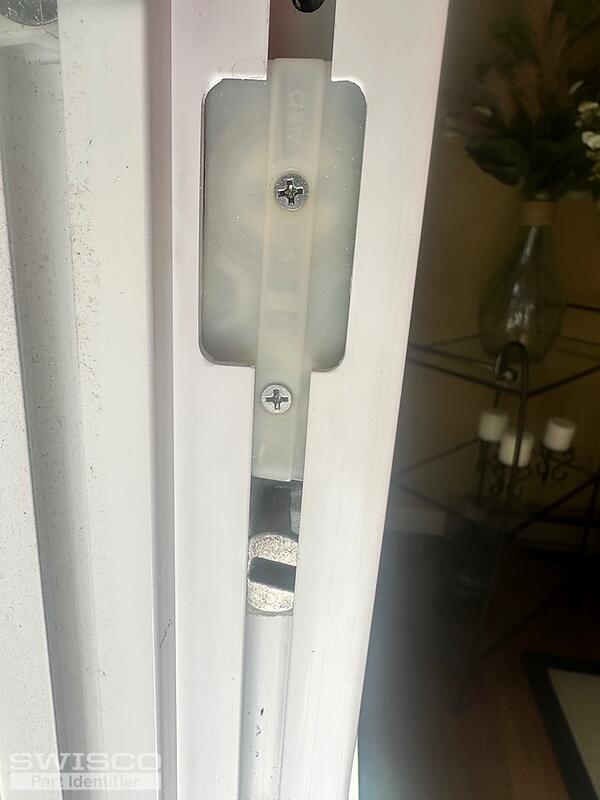

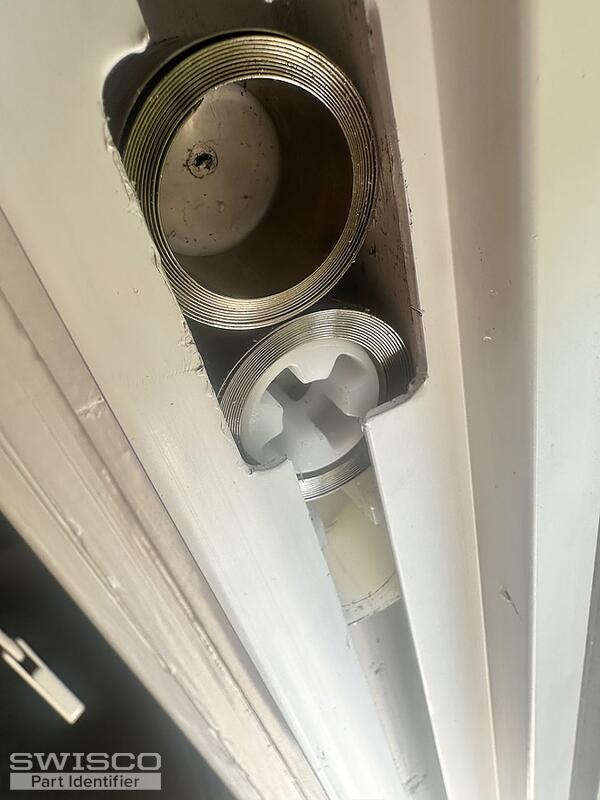

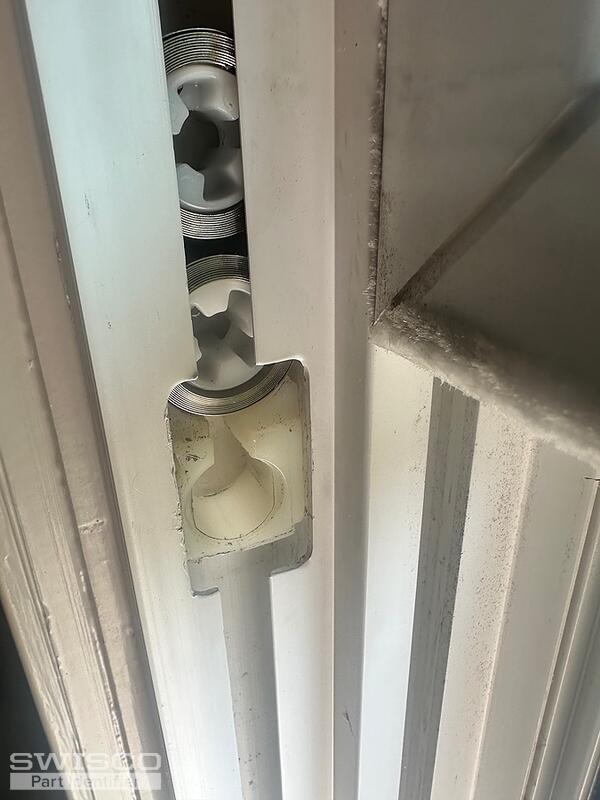

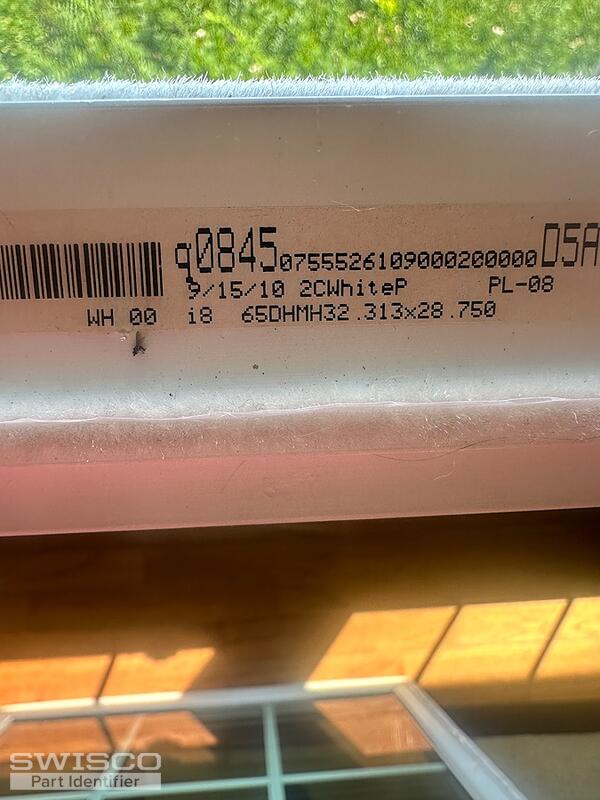

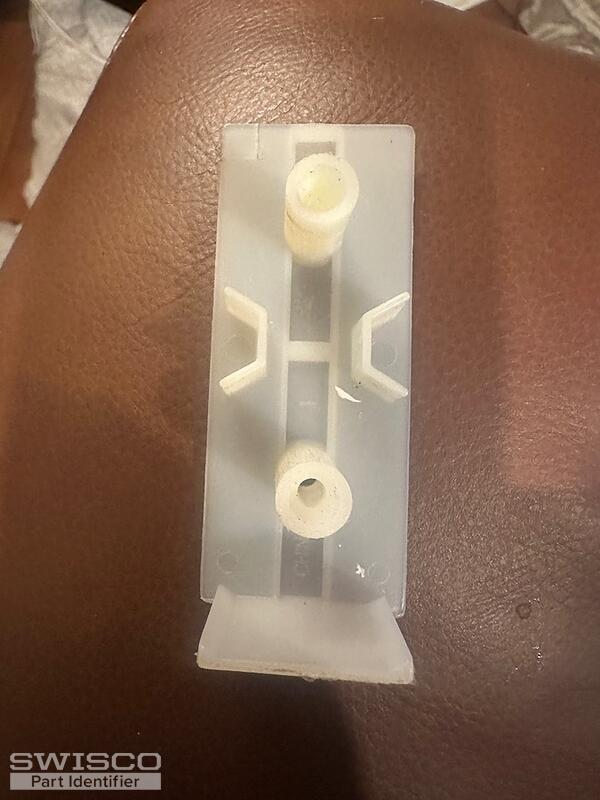

Hello, I'm trying to identify proper replacement shoes for dual coil balances. I've attached photos and an OD tag on the window which are double hung tilt windows. Also trying to determine best way to remove balance as the is only an access in the middle of the side fram and not at top. I know I can cut in access at top of side rail but wondered if there was a tip to getting out of existing access spot without causing damage.
IMG_9848 IMG_9854 IMG_9849 IMG_9850 IMG_9852
5 user uploaded images
1 Replies
Bob
Bob from SWISCO
Aug 30, 2024 10:08 pm
SWISCO
EXPERT

Thanks for writing in. This is a Simonton Coil balance assembly that is no longer made. However you can replace it with our 15-259 Pivot Shoe and Series 159 Coil Balances. We have a video that explains the conversion process. Take a look and let me know if you have any questions.
