Replacement parts for a Stanley mirror closet door

Quick Learner

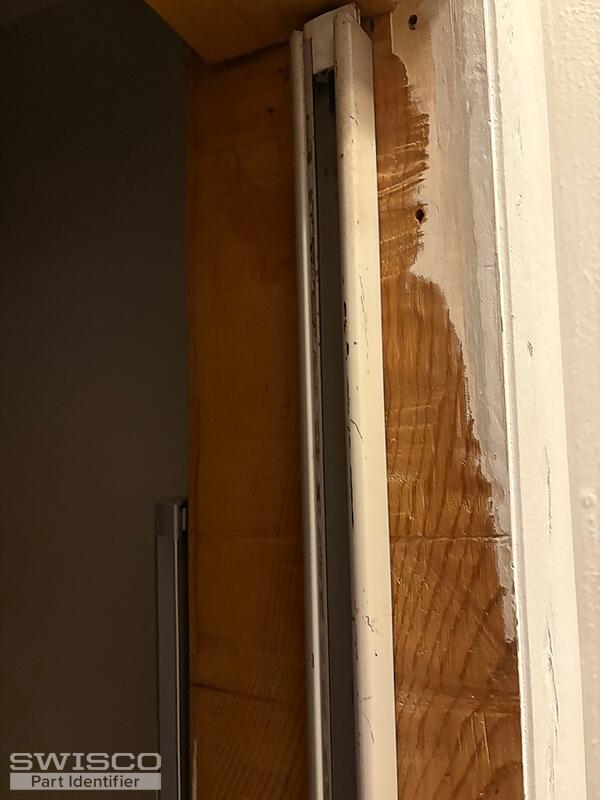

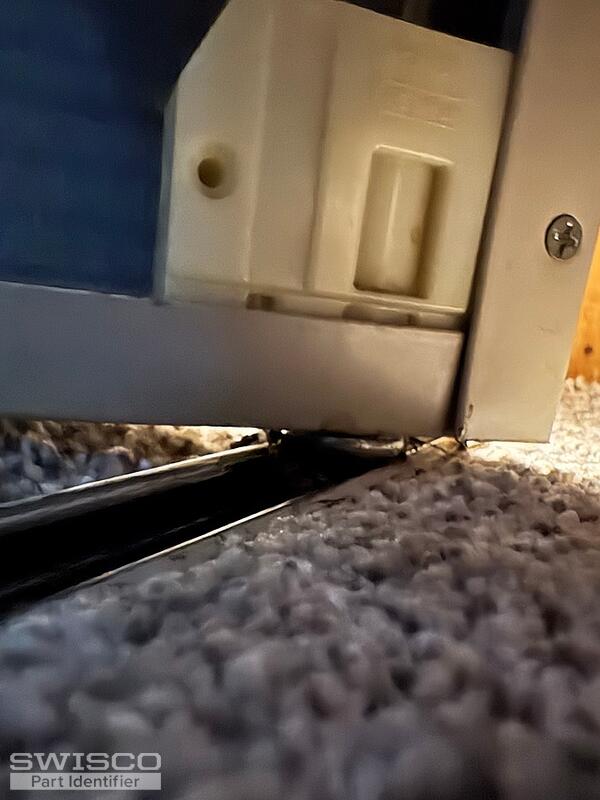

I need assistance with finding the parts in the image.
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Thank you for reaching out to us. Please allow us to look into this. We'll reach back out as soon as we have more information.

Paul
Paul from SWISCO
SWISCO
Expert

For your Stanley closet door you might need the 21-174 roll guides that ride along the track with the 23-112 spring loaded pins. You would also use the 23-112 pin for the top pivot and the 23-113 adjusting pin for the bottom pivot. This pin raises, lowers and squares up your door. Review the specifications and see how they compare with your old hardware.

Dimensions for 21-174
Dimensions for 21-174

Dimensions for 23-112
Dimensions for 23-112

Dimensions for 23-113
Dimensions for 23-113
