Replacement parts for single hung window.

Quick Learner from Nevada
Can you help me find this replacement part. Windows are about 17 Years old.

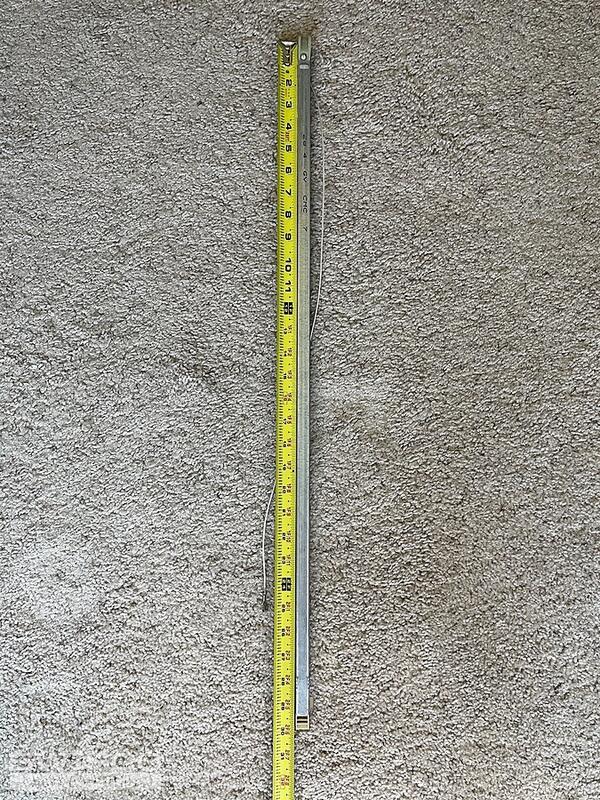

2 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello, thank you for writing in! We would be happy to help you find replacement channel balances. The stamp that you indicate tells us the necessary spring strength, but we will still need to determine what series you have. In order to do this we will need to see clear images of the plastic fittings at either end of the channel. I would preferably like to see them from above with the open side of the channel, where the spring is revealed, facing up. Thanks!

Quick Learner from Nevada
Sorry it took so long to get back to you. I will attach more photos in my next reply.

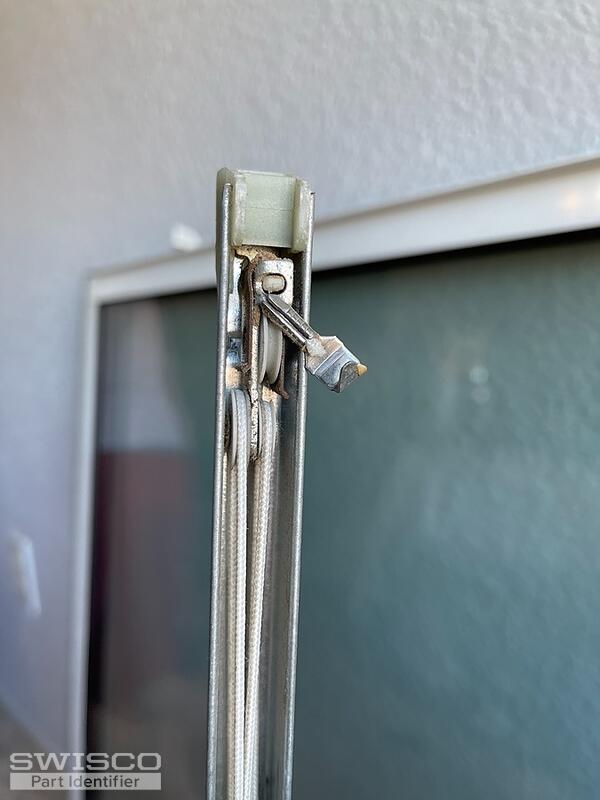

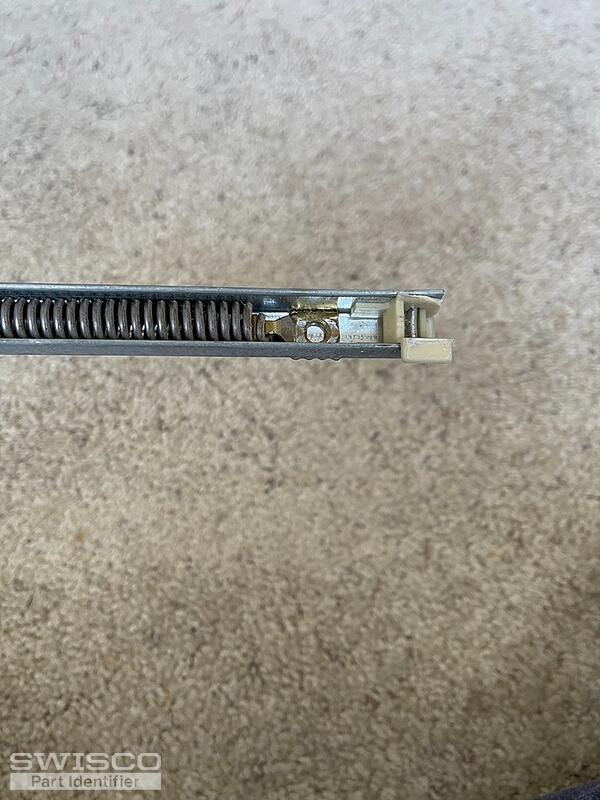

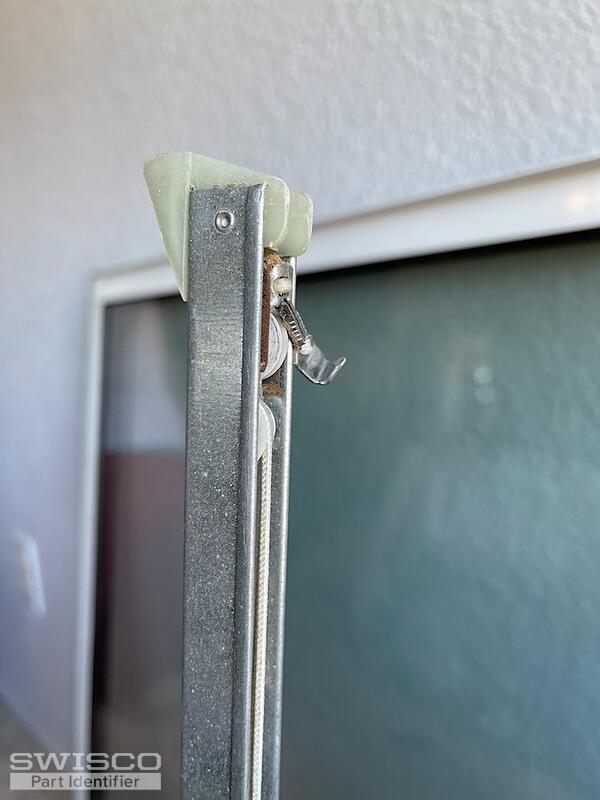

5 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! Based on these photos, I think you could use our Series 395 channel balance. This has a 19-005 top and 15-001 bottom nylon fitting, so as long as these match up then you should be good to go. I think they will, but you can never be too safe.
