Replacement screens

A handy person from Honolulu, HI says:
December 5, 2016
I need set of replacement screens for a tilt-out window that weighs 16lbs. I'm not sure which screens to order. I would greatly appreciate your help. Thank you

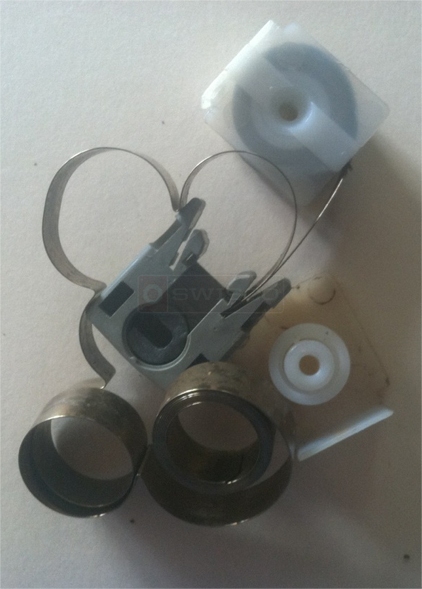

User submitted image of their window hardware.
Profile picture of Paul
Paul from SWISCO responded:
December 7, 2016
The pivot shoe looks a lot like our 15-177, which is made to use our Series 152 coil balance. The nylon spring housings look fine, so you can likely reuse it.

Now, if your sash is 16 pounds, and you currently use two springs on each side, I would recommend our S152-4. Each of these springs can carry 4 pounds each.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
#6 x 3/8 SS Pan Head Screw
#6 x 3/8 SS Pan Head Screw
33-071
$0.21
8 lb Series 152 Coil Balance
8 lb Series 152 Coil Balance
S152-8
$4.90
