Replacement shoe pivots for single tilt window

A quick learner from Winchester, VA says:
May 7, 2020
I'm trying to replace my shoe pivots and want to make sure I get the correct one. I've included pictures and was wondering if you could tell me the correct one that I need. I got thrown off by the different colored cams and wasn't sure if that made a difference.
I need 16 of theses plus the tool for tightening the spiral chambers in a single tilt window.
Let me know what you come up with and price and how long it would take to ship them to WINCHESTER VA
Thanks
Thumbnail of the uploaded file named 211F96F2-1E3B-4CE2-8890-B3F4DF46DFE0.jpeg
Thumbnail of the uploaded file named D0074B04-9784-4849-A4B2-CD89E5840752.jpeg
Thumbnail of the uploaded file named 156DEB42-1936-460D-9573-9C1819F65EBC.jpeg

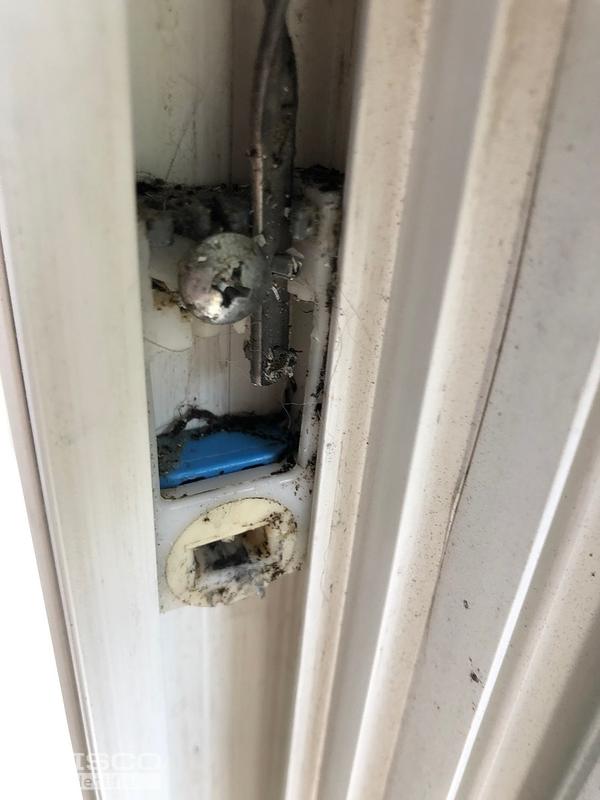

Thumbnail of the uploaded file named 556B6F71-DF22-4EE7-A2A9-9815FC26AE95.jpeg
Profile picture of Bob
Bob from SWISCO responded:
May 11, 2020

Don't worry about the color of the cam as much as the width and thickness of the pivot shoe. Compare to our 15-046, 15-047, and 15-118 to see if one of these match what you need. For a charging tool for tilt window spiral balances, see our 75-006.
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Pivot Shoe, 5/8" Thick
Pivot Shoe, 5/8" Thick
15-047
$2.20
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-118
$2.20
