Replacement size help needed

Home Owner from 01518
Hi,

Attached are 2 photos of a crank I'd like to replace. The arm has an offset bend. Can you tell me if you'd have a replacement part and also how I should measure this?

Thank you
3 user uploaded images
8 Replies
Tom
Tom from SWISCO
SWISCO
Expert

There's a very good chance we can replace this, but I can't quite make out what you have. There are a lot of possibilities that come to mind, but in order to narrow it down I'd like you to remove the operator from the window and show me a photo of it by itself. Let me know if that will be possible!

Home Owner from 01518

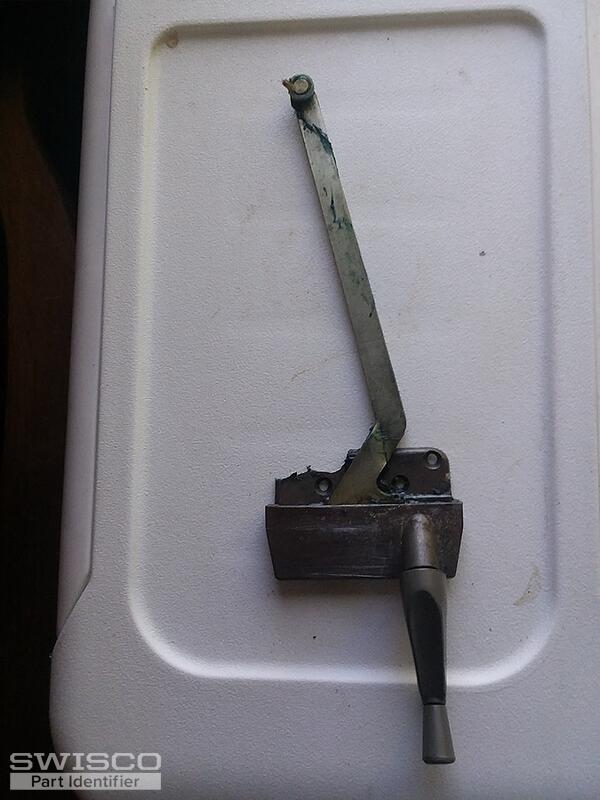

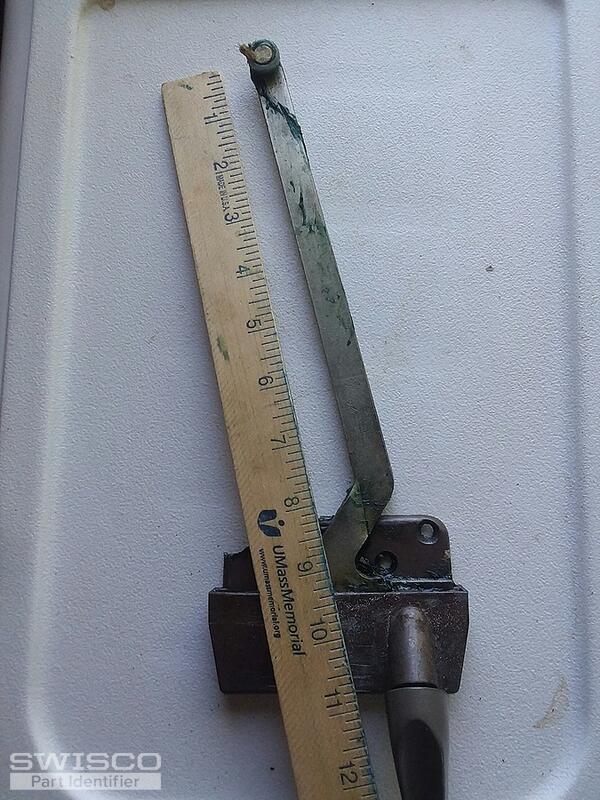

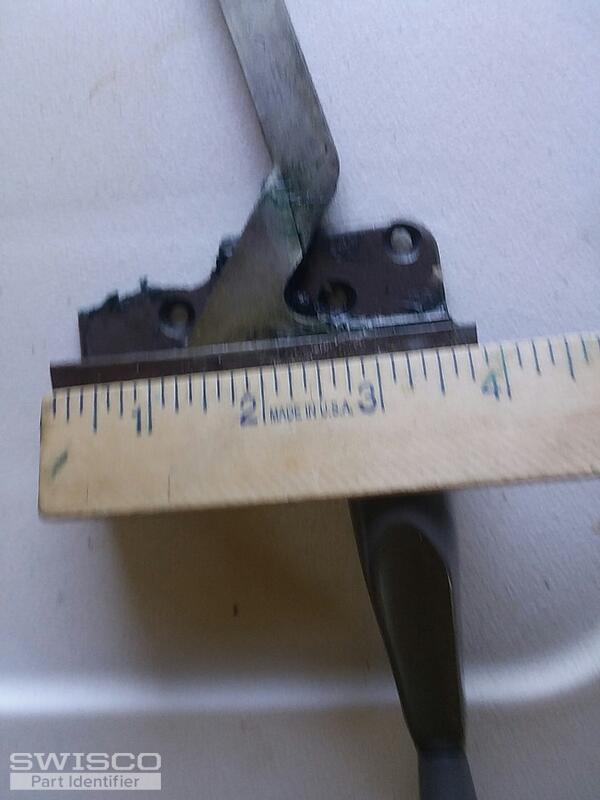

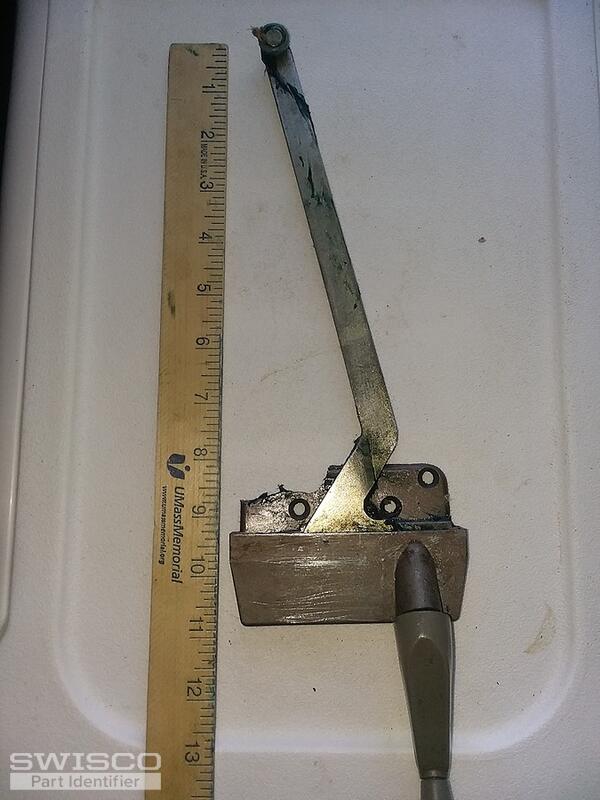

Thanks for your help, additional photos attached, I hope they help determine a suitable replacement.

Thanks again
4 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thank you! This is a huge help. I recommend the 39-027E and 39-028E. I think these may be more modern versions of your older part here, but look them over and let me know what you think.

Dimensions for 39-027e
Dimensions for 39-027e
Home Owner from 01518
Tom,

Thanks again for your help. I ordered the two parts that you recommended, and am looking forward to receiving and installing them.

Keep up the good work,
Paul
Tom
Tom from SWISCO
SWISCO
Expert

Excellent, thank you so much for your order! We really appreciate it.

Please let me know how it goes or if you had any further questions and I would be happy to help.

Home Owner from 01518
Parts arrived today and installed easily. New item is a bit taller than old, so I have to enlarge opening a little.

I was expecting handles with the cranks, but now see that they are sold separately.

Cranks work great,thanks again for your help
Tom
Tom from SWISCO
SWISCO
Expert

I'm glad to hear that you got everything working. I'm here to help with any other issues or concerns you may have in the future.
