Replacement sliding door handle w keyed lock
Quick Learner from Sacramento CA USA
Feb 8, 2024 4:19 pm

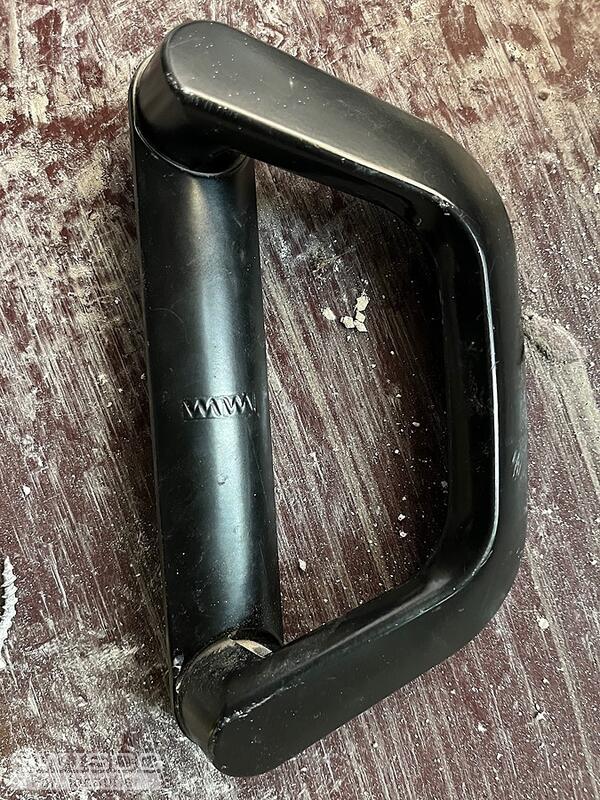

I would like to replace my sliding glass door handle/lock with one that has a keyed lock so that it can be unlocked from outside. Can you direct me to suitable replacement?
4 user uploaded images
6 Replies
Lauren from SWISCO
Feb 9, 2024 8:34 am
Hello, thank you for posting,
Please start by reviewing the style and dimensions of the 82-081 keyed handle set. This set has a 4-15/16" installation hole spacing from center to center. Let us know what you think and if you have any additional questions!
Dimensions for 82-081
Quick Learner from Sacramento CA USA
Feb 9, 2024 10:54 am
Yes, I believe this will work. Is there a replacement mortise?
Lauren from SWISCO
Feb 9, 2024 12:21 pm
Take a look and compare the dimensions of the 82-268B mortise lock to see how it compares to your original. Please let us know if you have any additional questions!
Dimensions for 82-268B
Quick Learner from Sacramento CA USA
Feb 9, 2024 2:37 pm

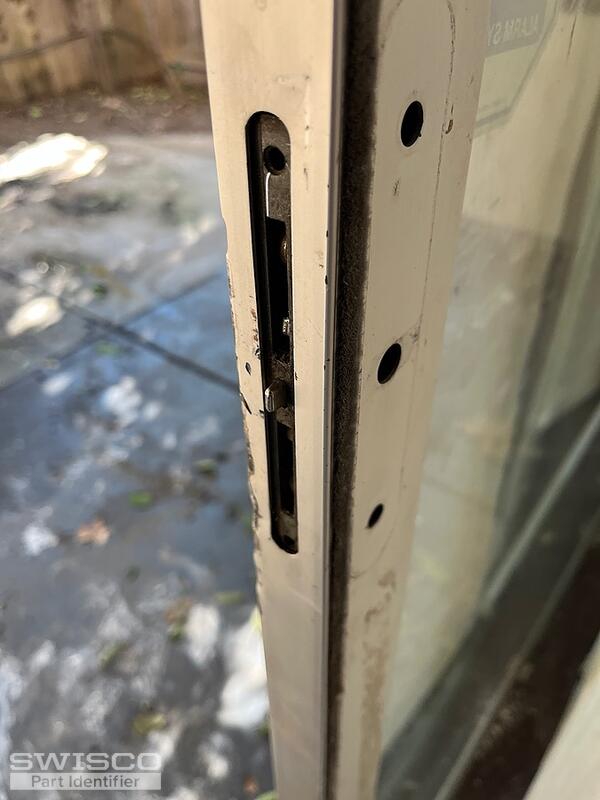

Maybe a stupid question but how do I remove the mortise? It seems to be internal to the door stile.
1 user uploaded image
Lauren from SWISCO
Feb 9, 2024 3:04 pm
This door should have removable trim on the face of the door where the lock is, where once taken off the lock will be accessible. Be careful as it may be brittle from sun exposure.
Let me know if this does not work!
