Replacement sliding glass door handle oil rubbed 2pt lock 2 pt handle

Home Owner from Lockport, IL

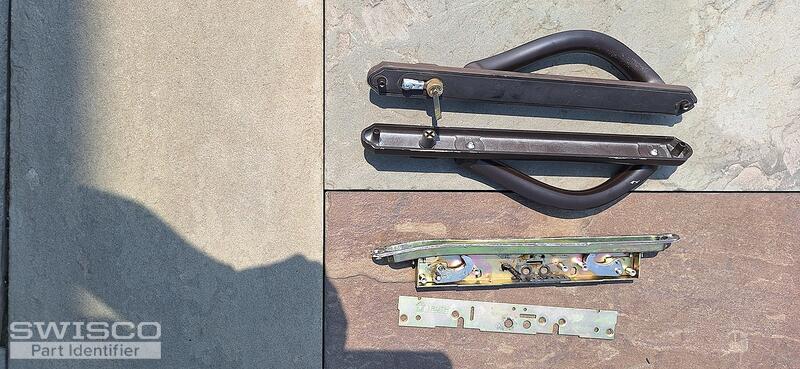

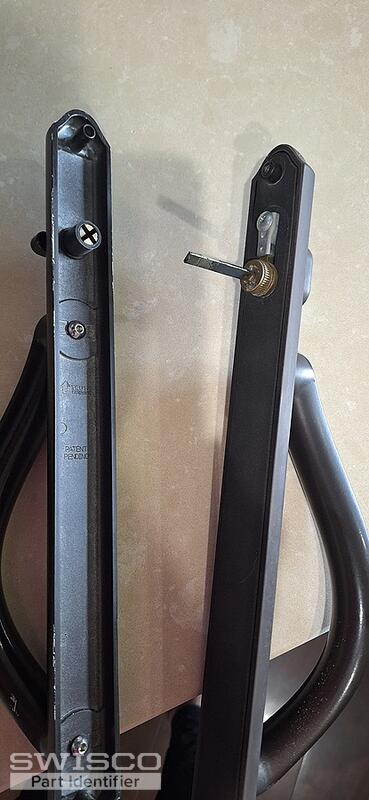

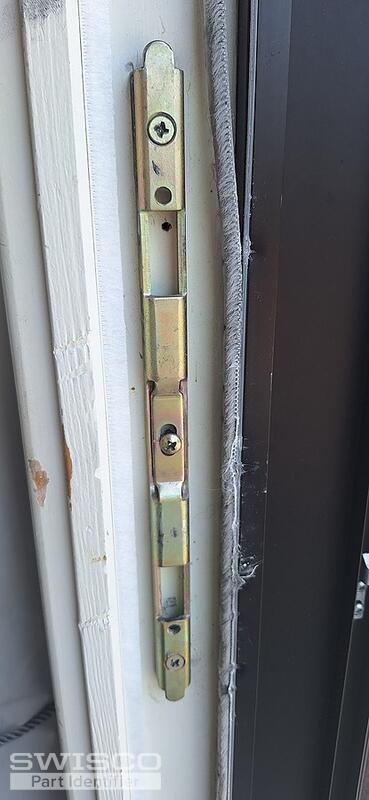

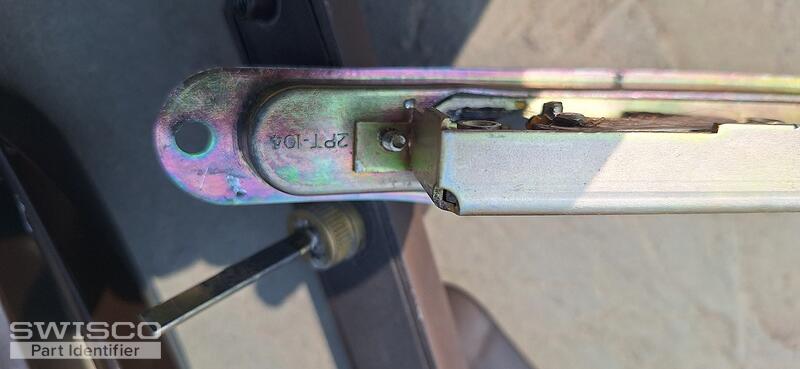

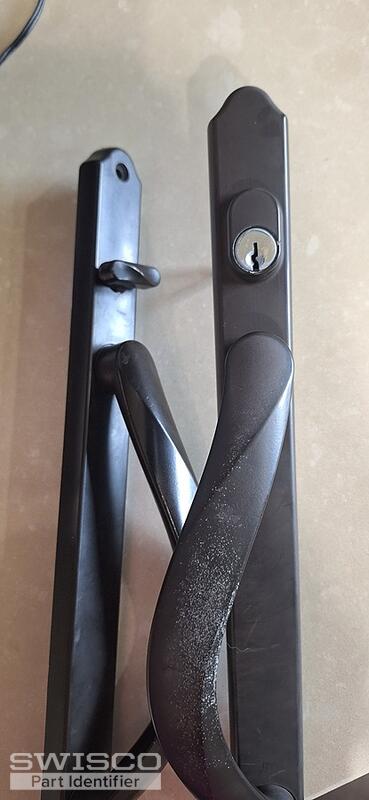

We had our door and handle installed in 2009. The TRUTH lock broke and we need a full replacement. I don't have an image of it installed because the repair guy yanked it out of the door before I could get a picture. The piece says Truth Hardware, Patent Pending, 2PT-104. Thanks for your help! Stephania
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Stephania,

Thanks for writing in. This mortise lock has a similar appearance to our 82-260 Multi-Point Mortise Lock with Pocket Plate. Carefully review and compare the dimensions below to confirm that this is the right fit.

Alternate image for 82-260
Alternate image for 82-260

Alternate view of 82-260
Alternate view of 82-260

It would also be a good idea to compare the 82-249 to ensure it is a match, as well. There is a chance yours may not be compatible with our mortise.

Alternate image for 82-249
Alternate image for 82-249

Home Owner from Lockport, IL
Thank you for the info, but I need a full package - handle and all. I don't know what part is broken, and it's now in 100 pieces.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

The handle set looks like it would be a match for the 82-093 Signature Keyed Handle Set. Carefully look over the dimensions and compare them to confirm.

This set is available in white, black, or faux bronze.

Additional dimensions for 82-093
Additional dimensions for 82-093

Dimensions for 82-093
Dimensions for 82-093

All of these parts are sold separately, so we wouldn't be able to provide you with a complete kit. They can be added to the cart together so that they'll all ship in one order.
