Replacement spring assist slider deibert

Handy Person from Freeport fl

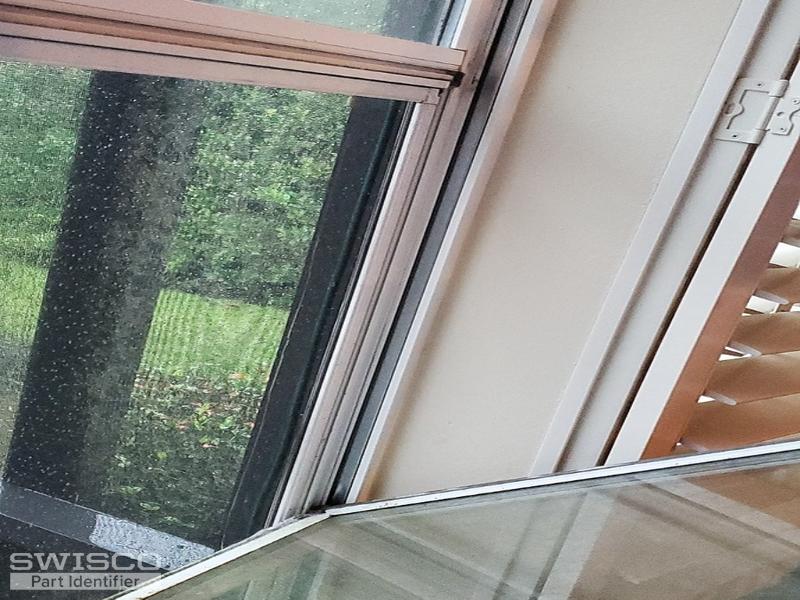

Looking for a replacement slider for window. Part has T-shape plastic guide on bottom. Window has rectangle tab that engages and rotates with window when tilted back into installed position.

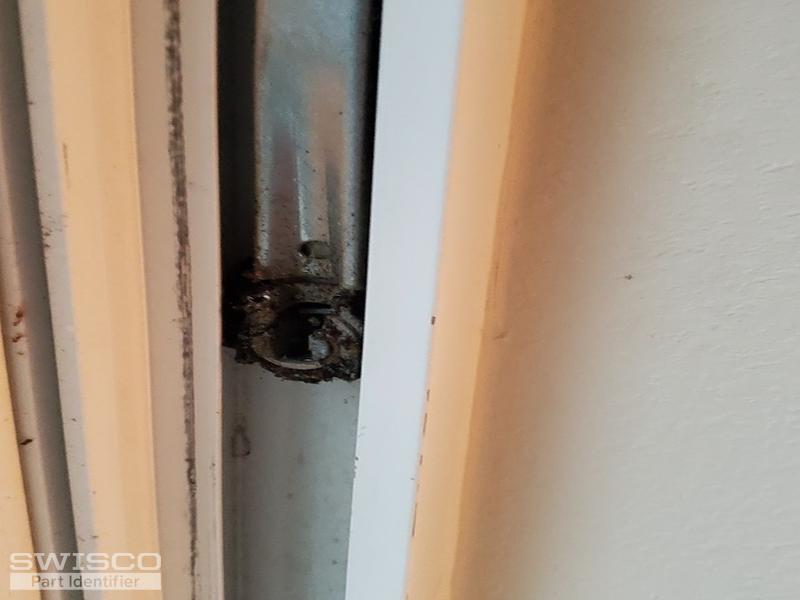

Top has small angle fitting to hold string. Inside channel is a long spring and pulley.
Metal channel is 34 inches long. Not including plastic T On bottom. 1/2 in wide and 1/2 in deep.
Has a code stamped. 34D
Window weighs 30lbs
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Take a look at our S795-34 channel balance with a 34D spring strength option to support your 30-pound sash. Thanks for posting!
