Replacement window

Home Owner from Paxton Massachusetts

Mar 22, 2026 8:22 am

Hi two of my windows will not stay up this piece is broken on the lower shash trying to identify what part I need to replace? thank you
Candice Adams

2 user uploaded images

4 Replies

Bob from SWISCO

Mar 22, 2026 1:16 pm

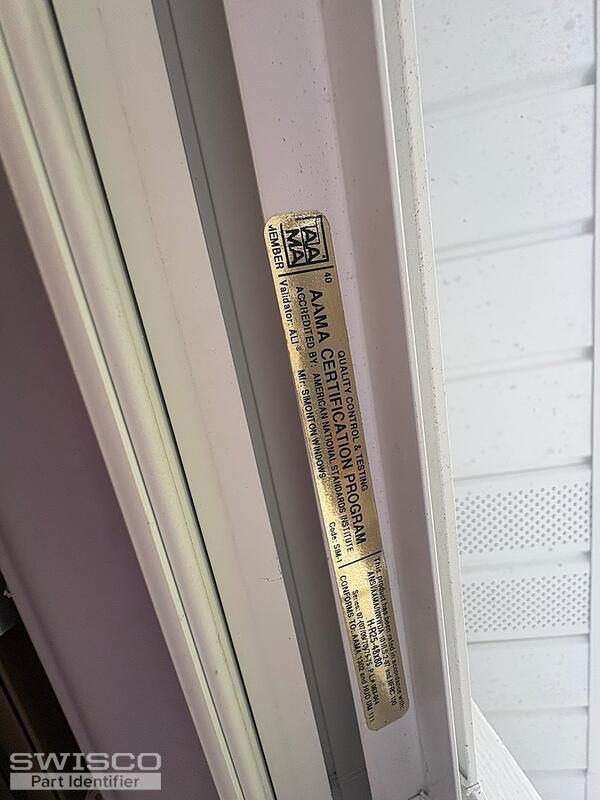

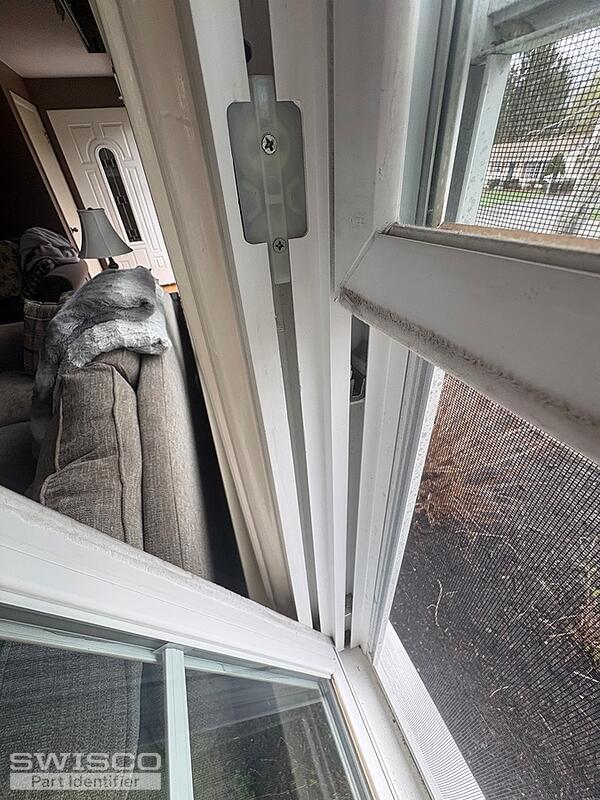

Hi Candice. I recognize this pivot shoe, and I am pretty confident we could help, but I need to verify one thing before proceeding. Can you show me the coil balance springs further up the window track that this shoe attaches to? Also, is there any label on the window that indicates what make it is? Is this a 'Simonton' window? We'll narrow it down from there. Thanks.

Handy Person from Paxton MA

Apr 17, 2026 8:44 am

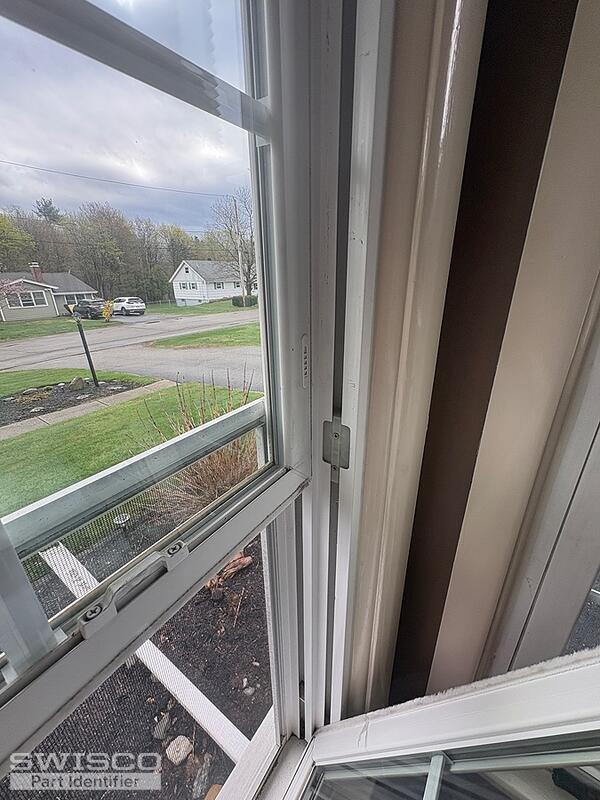

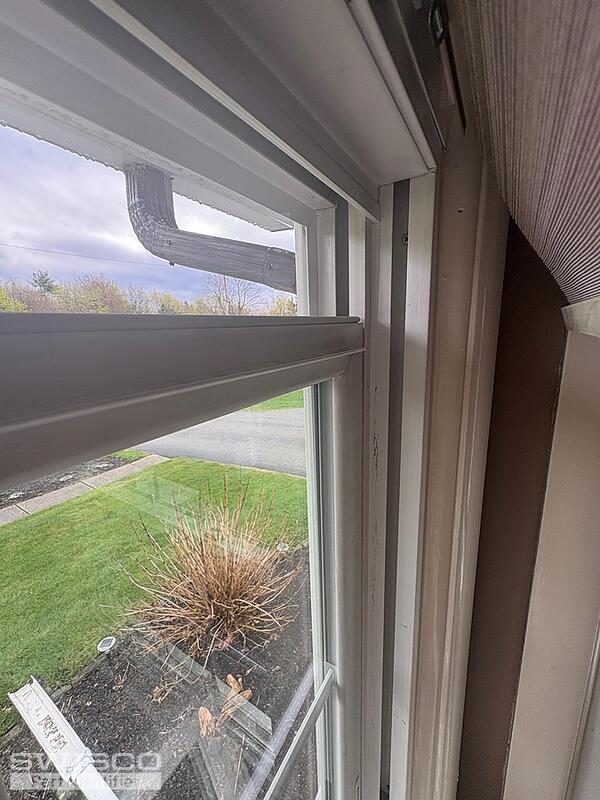

I am in need of replacement parts for some of my windows. They will not stay open and one of the widow's tilt latch broke. Can you help me find the parts I need? There are three windows that will not open and tilt right and one that the tilt latch is broken. Any help you have I would appreciate.

thank you

Candice

5 user uploaded images

Bob from SWISCO

Apr 23, 2026 2:56 pm

Hi Candice, thanks for the new photos. This is a Simonton Coil Balance system that is no longer made, but our 15-259 Pivot Shoe and Series 159 Coil Balance springs can replace it. The video below shows how. Let us know if you have further questions.
