Replacement window balance

A quick learner from CA says:
October 18, 2021
I believe the balances I need are 18" Caldwell series. Metal measures 18" long. The stamped numbers/ letters are 17-4 DI5 CMC 34 on the units. I have 3 vinyl windows 4 feet wide and none of them work properly, I'm guessing the balances are not strong enough because they won't stay open. I'm wondering if I should just replace the balances with a 17-5 or ? to help with this situation. See attached photos.

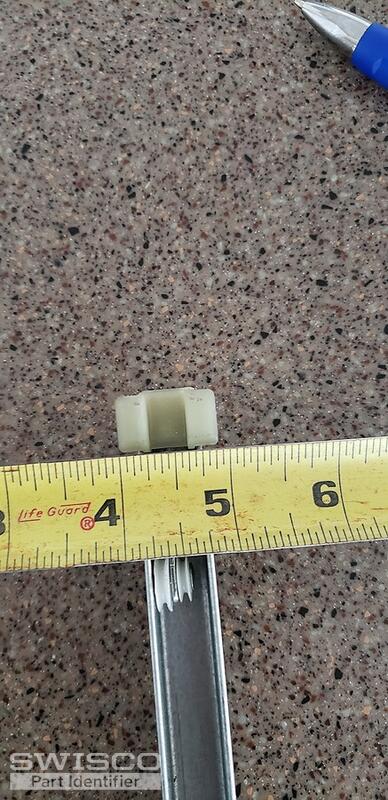

Thumbnail of the uploaded file named 15_16ths wide.jpg

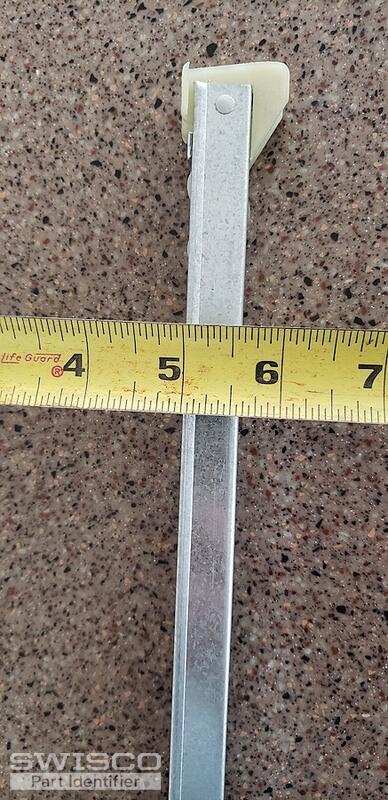

Thumbnail of the uploaded file named Balance depth.jpg

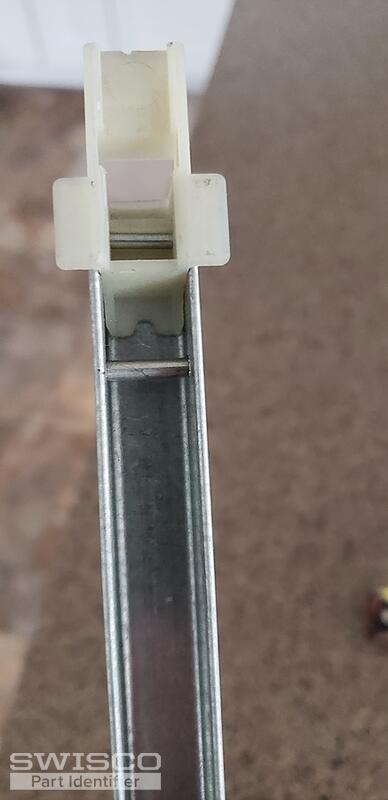

Thumbnail of the uploaded file named Pulley end view inside.jpg

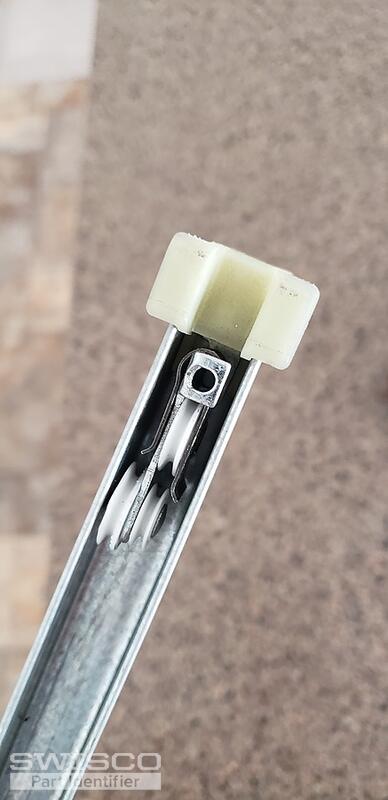

Thumbnail of the uploaded file named End inside view.jpg

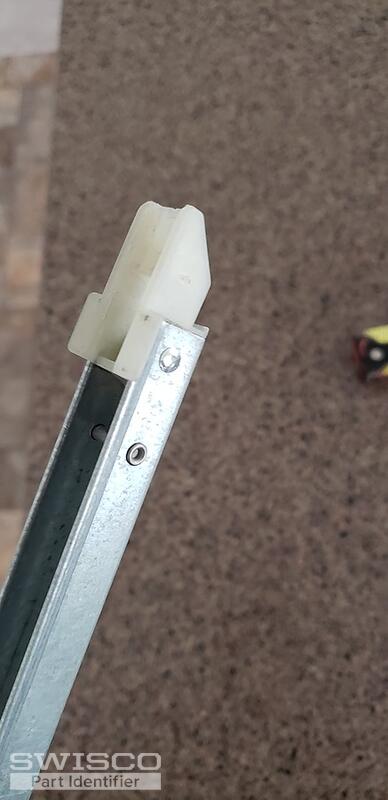

Thumbnail of the uploaded file named End side view.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 25, 2021

Hello,

With this combination of attachments, you could have either an S380-18 or S385-18 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

Your stamp code would normally indicate that you need 1740 spring strength options for your replacement balances. Since you said that none of your windows are being properly supported, I would recommend weighing the window sash and following the chart under the balance product description to confirm that you choose the correct strength option for your windows.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
18" Series 380 Channel Balance
18" Series 380 Channel Balance
S380-18
$9.34
18" Series 385 Channel Balance
18" Series 385 Channel Balance
S385-18
$9.34
