Replacement window balancer

A contractor from Pine hill nj says:

March 30, 2021

I need to replace window balancers in old wooden windows. Not sure if you would have replacements. I thought they went up through the top of the frame but I could be mistaken.

Thumbnail of the uploaded file named 75948E76-3134-4F13-91E2-67B0AA64C2D5.jpeg

Thumbnail of the uploaded file named 960A95C4-EA78-4635-BE2B-97B011F57D14.jpeg

Casey from SWISCO responded:

April 1, 2021

Hello,

It looks like you might need either our S400 or S500 spiral balances for non-tilt windows but you'll need to remove yours and measure the tube length and diameter to choose the correct replacement. Thank you!

A contractor from Pine hill nj says:

April 8, 2021

Hello.

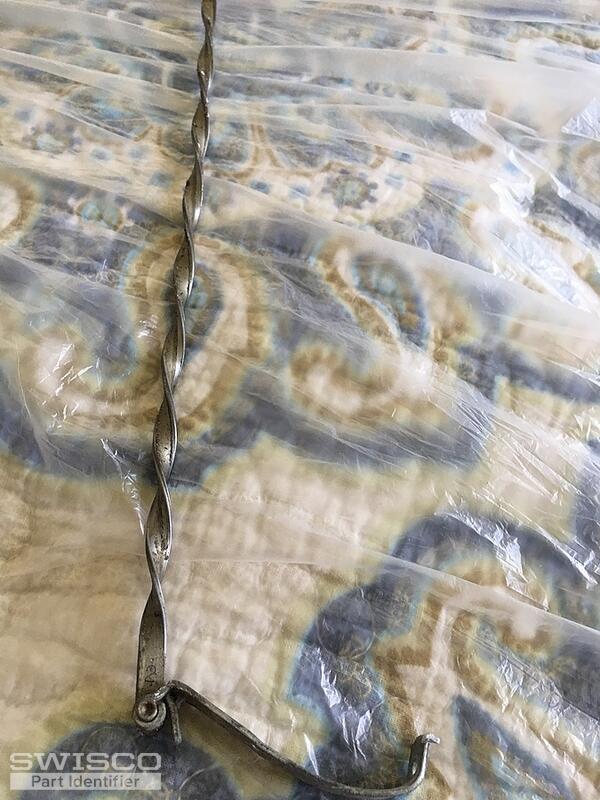

Tube is 23 1/6 long (plastic)
Yellow bushing
Appears to be a tiny bit over 1/2 inch wide

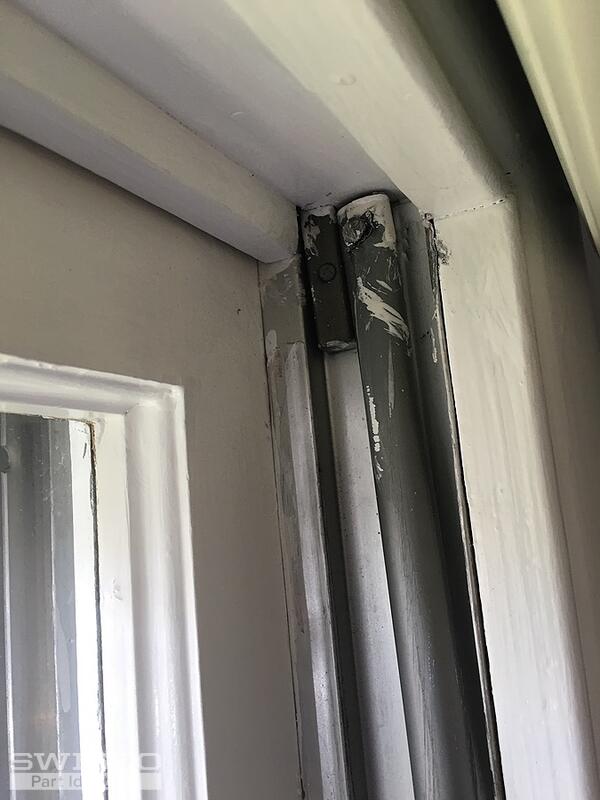

Lower mount bracket about 2 1/2 long under window

Thumbnail of the uploaded file named BF9DB53E-CEB3-40DE-A756-B24972E1F0CD.jpeg

Thumbnail of the uploaded file named 4374BE56-9984-4F94-B5A7-CF55B429ED18.jpeg

Thumbnail of the uploaded file named B505720D-A3A6-4041-90FD-86B017B6FD26.jpeg

Casey from SWISCO responded:

April 8, 2021

Take a look and compare our S500-23 spiral balance with a 5/8" diameter tube, as well as the 17-012 bracket. Thanks for posting!

23" Series 500 Spiral Balance

Window Lock & Keeper, 1-15/16"

90-027

$4.25
