Hello,

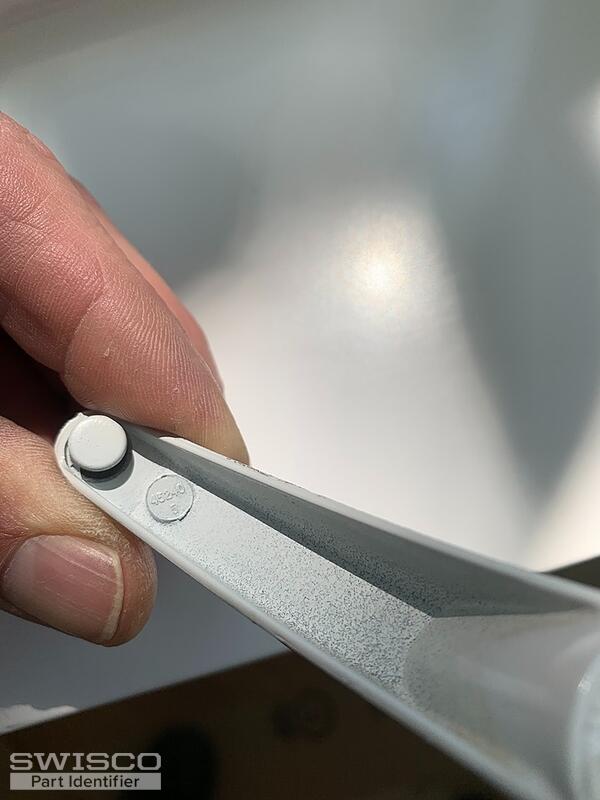

I am managing a remodel project in Seattle that has some older vinyl casement windows (Possibly Andersens?) and they are missing a crank and would like to get new crank gear covers as well if possible. I attached pic of one of the cranks off, hope that is enough. I can provide more photos later if you needed. I popped one of the covers off but did not see a part number, assumed it corresponds with the crank?
Please advise.
Thanks!
Derek
Hi, Derek.
We'd be happy to help but we'd like to see a photo of your operator with the window open so that the arms that move the sash are fully visible. Once we can identify the operator, we can determine which handles are compatible with your assembly.
Thank you!
Hi Emily,
Thanks for the response! It would be great if we could locate some replacement parts for this client!

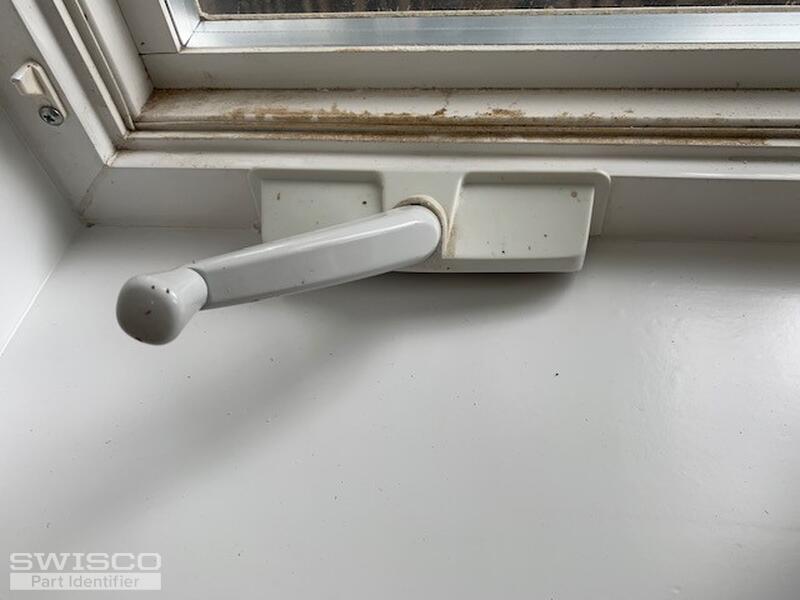

I am attaching the other phots of the hardware that I already had from my last visit here, but none of them are with the window open as you are asking for above. I will get those in the next few hours and send them along as well.
Thanks!
Derek R.

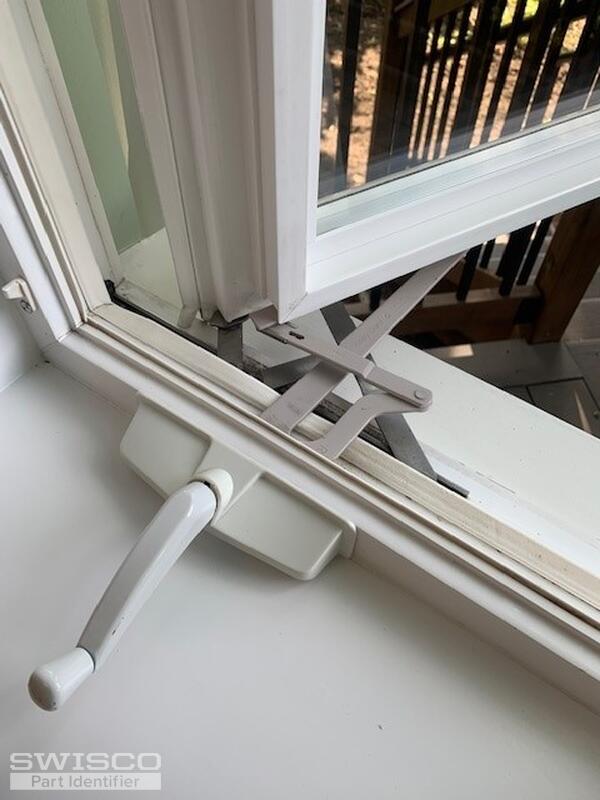

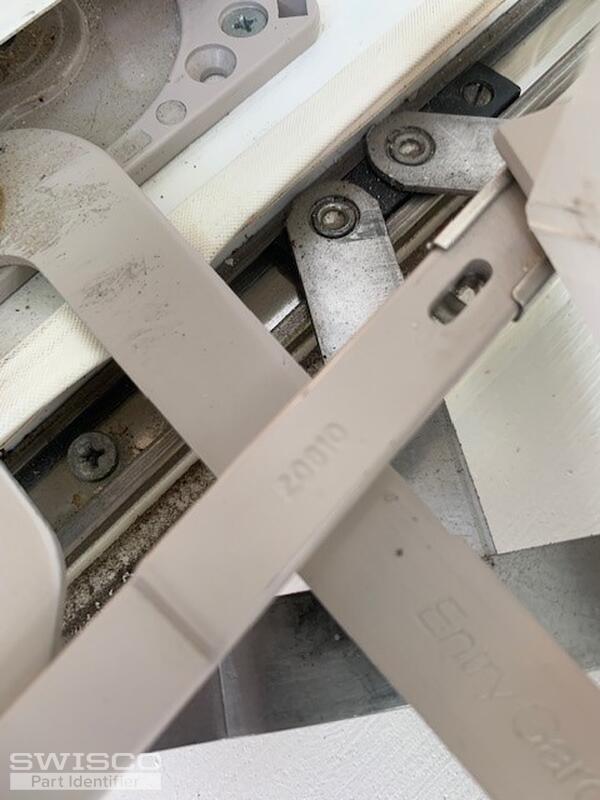

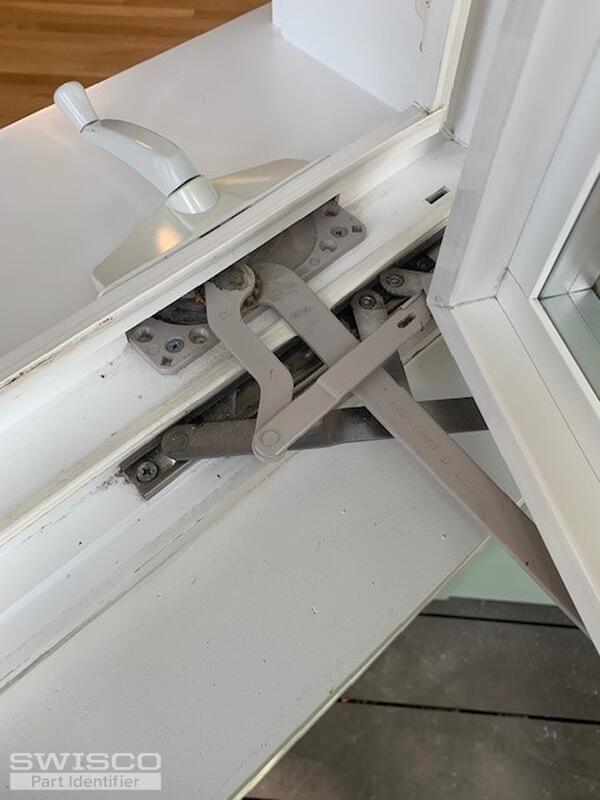

Here you go! Hope it helps!
If you can pinpoint replacement cranks and covers that will work with this let me know and I can send you a count and handing on those, or whatever you need...
You can always just call me as well.
Thanks again!
Derek R.
Thanks for the pictures, Derek! They help a lot.
Take a look at the following two sets of operators: our 39-031 & 39-032 or 39-155 & 39-156. Carefully look over the dimensions for each set and see which ones match up for what you need.
If you need a handle as well, please see our 39-114L or 39-205, depending on the style you prefer. For a new cover, see our 39-107.
If you have any further questions just let us know!
