Replacing parts

A quick learner from Baton Rouge, Louisiana says:
Good morning!

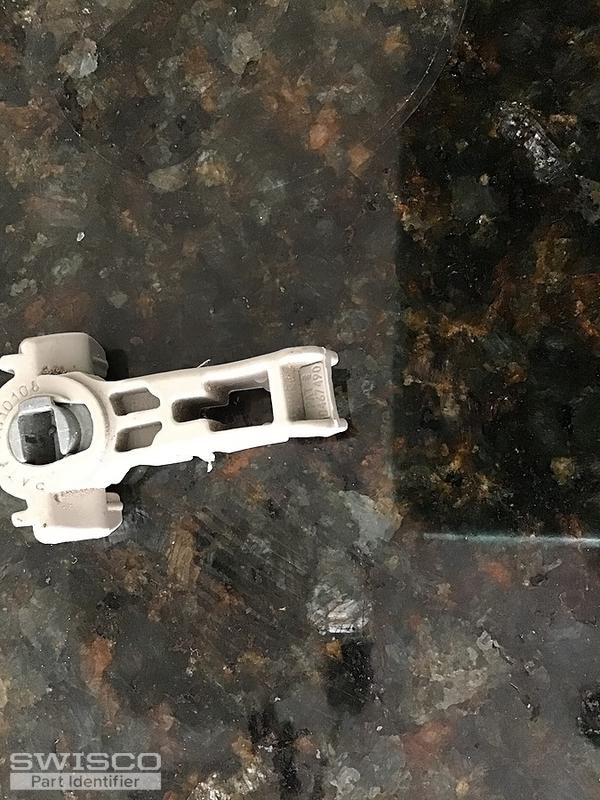

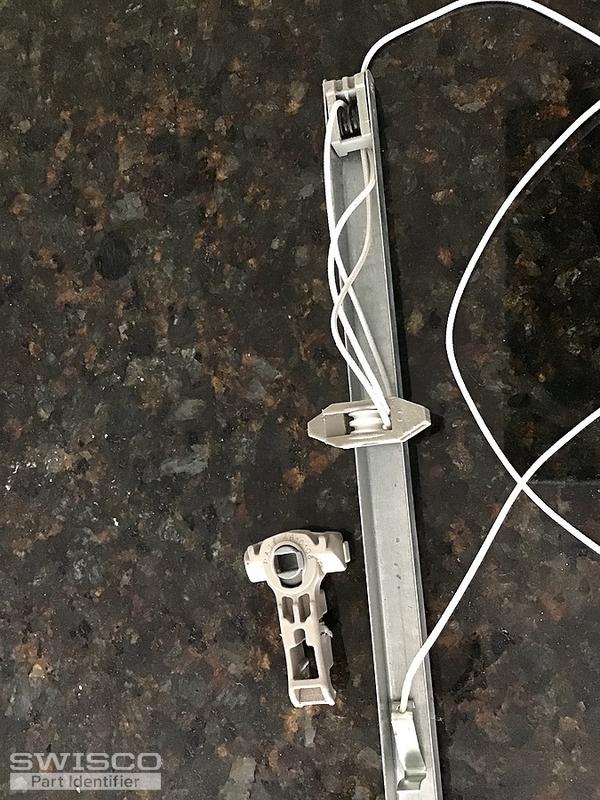

We built the house in 2004. Hopefully you have parts for the old model. There are 4 windows that have problems. There's no number except one that looks like "pat D467490".

Which parts and what kind to buy?

Please let me know if you need more pictures. Thank you so much for your help.

Julia
Thumbnail of the uploaded file named 1D3FE796-1AA6-4F51-9DC6-EC585082CD4A.jpeg
Thumbnail of the uploaded file named 7B499DD5-3D98-4552-884B-7DC4FB5BD4B5.jpeg
Thumbnail of the uploaded file named EFA2516A-4A00-4CAA-9B51-D33382483F58.jpeg
Thumbnail of the uploaded file named EAB325BB-6EF0-46AD-8F5F-E54EBA456395.jpeg
Thumbnail of the uploaded file named A59A3847-B9B4-45B1-8721-2A7B5C0D5E3B.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Hi Julia. This looks like a Series 795 Channel Balance. By default this balance uses our 15-195 Shoe, which appears to match the T-Lock Shoe your old balance had. Measure the length of the metal channel, not including the shoe, to determine the length you need. Look for a stamp code on the channel to determine the stamp option you need. Finally, your balance seems to use a hook to attach to the window jamb; ours uses a screw clip instead. Please show us the hole in the window track to which that hook attaches to, and that will clue us in as to your best move. Thanks.

A quick learner from Baton Rouge, Louisiana says:
Thanks Bob.

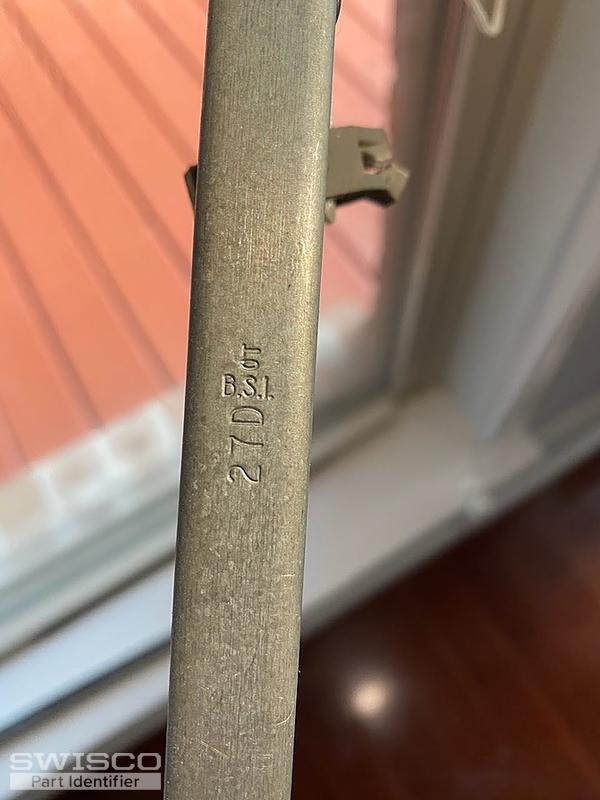

Metal channel is 27" long, code 27D B.S.I. OT (picture attached)

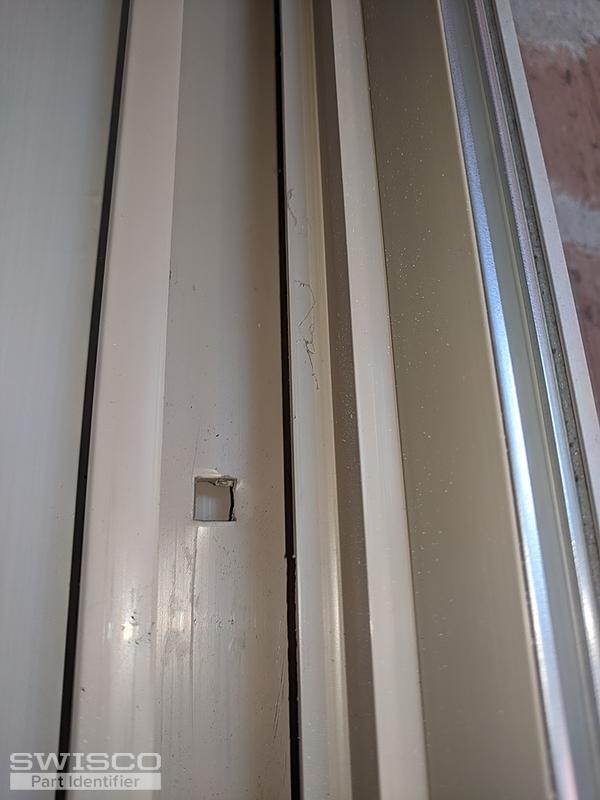

The hole is square, about 1/4" (picture attached)

Thanks for your help.

Julia
Thumbnail of the uploaded file named 97B3841C-F8AB-45A6-86E6-1FAF2B199E67.jpeg
Thumbnail of the uploaded file named 9699AAE2-A515-4731-97DC-80866722235F.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for getting back to me, that's perfect. You'll need an S795-27, with a stamp option of 27D. Again, the T-Lock Shoe you need comes installed by default with this balance. Also use the 26-200 Screw Plug. This plug will fit in that square hole in the window jamb, and then allow you to screw-on the new balance. Let me know if you have further questions.

A quick learner from Baton Rouge, Louisiana says:
Thanks for your very prompt response.

So, S795-27, 27D x 8
And
26-200 x 8

For 4 windows are what I should order? Thanks.
Profile picture of Bob
Bob from SWISCO responded:

Correct! That should be exactly what you need. Again, the 15-195 shoes come by default attached to these balances, so there's no need to order them separately.
