Height- 2 and 1/16th inch
Width- 1 and 3/16th inch
Depth- 1/2 inch

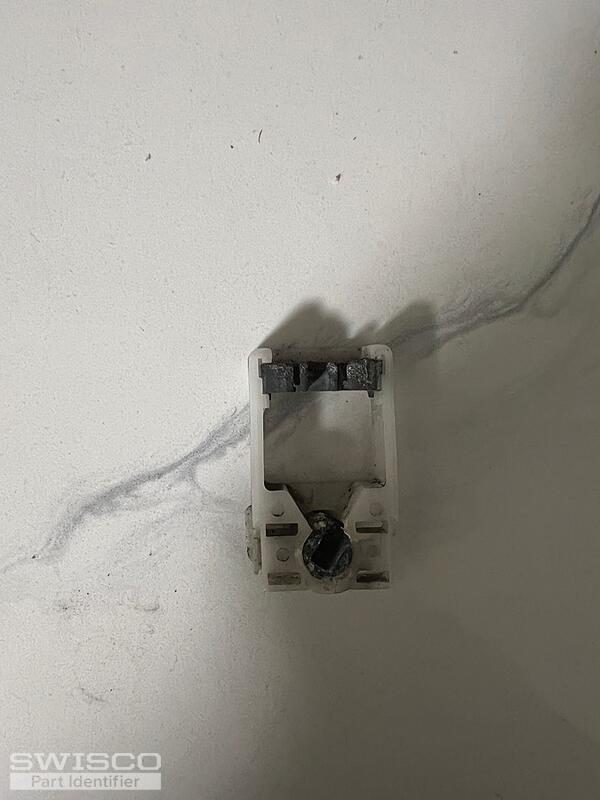

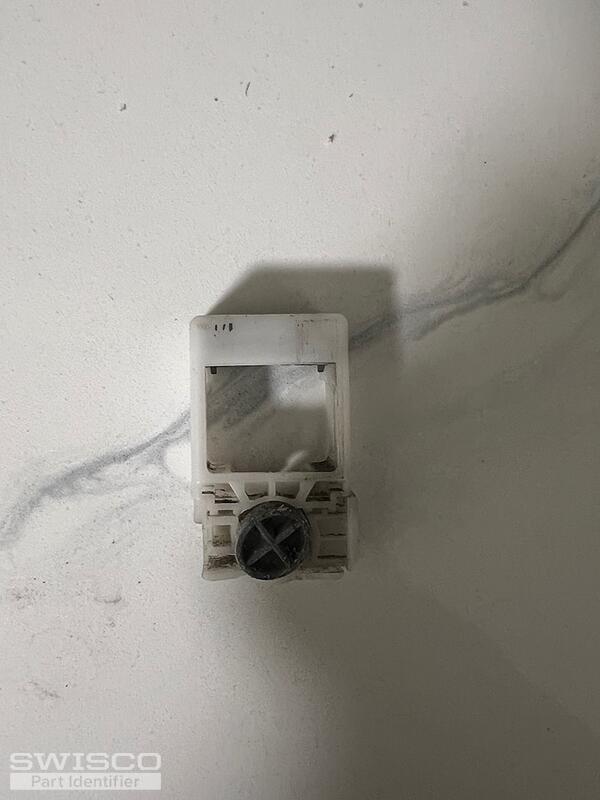

I need help identifying proper pivot shoe
Replacing tension rods and pivot shoes
Quick Learner from Chicago
Nov 26, 2024 12:48 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Nov 27, 2024 1:56 pm
Hello,
Unforutnately, we do not carry an exact match for the pivot shoe shown in your photos. The 15-129 comes to mind but the style and dimensions are a bit different. Review the specifications below to see if this might work for your application.
Detail of 15-129
If you need new spiral balances as well, we should be able to help but we would need to see photos of yours uninstalled. Make sure to include the spiral tip and write out the diameter of the housing tube, which should be wither 3/8" or 5/8". Thank you.
Quick Learner from Chicago
Dec 7, 2024 6:18 pm
The depth of the one I took off is 1/2in. The 9/16th may work. Do you have one that has the 1/2in depth? And I also need (4) 28in tension rods with orange tips. 5/8th
Casey from SWISCO
Dec 9, 2024 8:11 am
The only 1/2" deep pivot shoe we carry with a cam like yours would be the 15-135 but the style is a bit different.
Alternate image for 15-135
You'll also need the S600-28 spiral balances with red tip options. Look over these parts and see what you think.
How to measure the tube length of the S600 spiral balance.
