Republic Window BSI Balance

A handy person from Hanover Park, IL says:
September 21, 2020
My bathroom window is no longer staying opened. I could get it to stay opened if I tilted it out then shut it back in place and tried sliding the lower sash up again. But now it doesn't stay open after doing this. The balance is staped 12C BSI. How do I find out what are the top clip and shoe suffix for it? See attached pictures.
Thumbnail of the uploaded file named
Thumbnail of the uploaded file named 20200921_132902.jpg
Thumbnail of the uploaded file named 20200921_132910.jpg

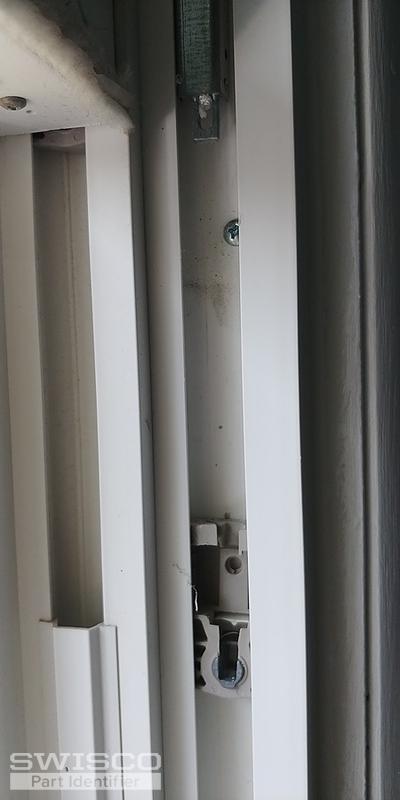

Thumbnail of the uploaded file named 20200921_132922.jpg

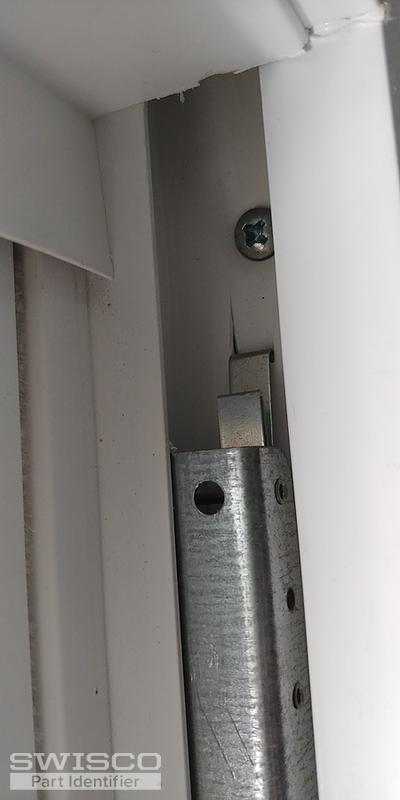

Thumbnail of the uploaded file named 20200921_133012.jpg
Profile picture of Casey
Casey from SWISCO responded:
September 25, 2020

Hello,

We just sent over a separate email with an order link for these custom balances with a rivet in the top to hold an s-clip like our 19-029. Take a look and let us know if you have any other questions.

If you need the pivot shoe as well, take a look at our 15-129 and see how the width and thickness compare to yours. Thanks for posting!
12" Series 770 Balance
12" Series 770 Balance
S770-12
$10.98
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-129
$2.50
Short S-Clip
Short S-Clip
19-029
$0.65
