Request for model number to purchase replacement window balancer.

Quick Learner from Beaverton Oregon

Jul 20, 2024 5:03 pm

Need to replace balancers on our sliding windows. These are 21 inches long, 9/16 inches deep and 1/2 inch wide. The marking on the balancer says 2040D BSI.

3 user uploaded images

8 Replies

Bob from SWISCO

Jul 21, 2024 5:46 pm

Hello there. This looks like either an S380-21 or S385-21 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the heel-to-toe measurement, so compare both with your old hardware to see what matches best.

Comparison of the S378, S380 and S385 balance shoes.

In either case, for a stamp option choose 2040. Let us know if you have any questions.

Quick Learner from Beaverton Oregon

Jul 22, 2024 11:45 am

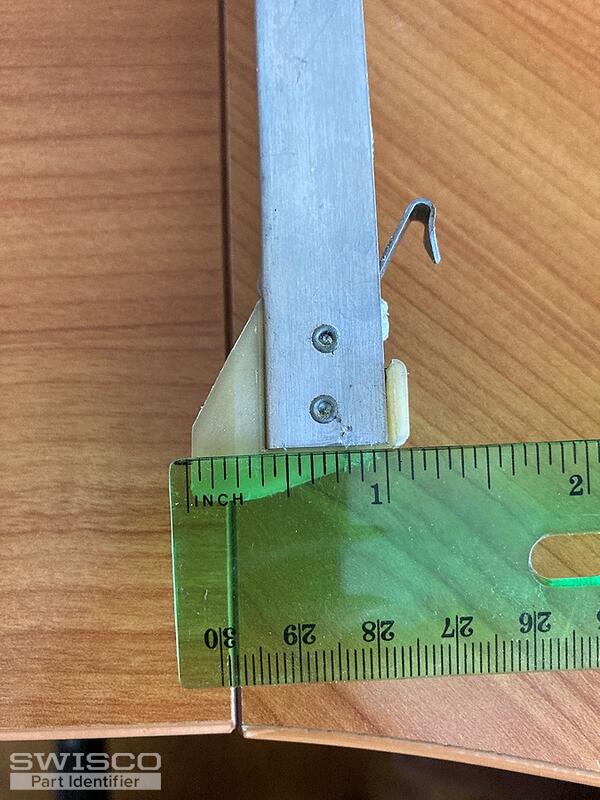

Thank you very much Bob. I measured my existing balancer and it came to 1 1/16 inch. So it is little less than 1 3/32 and longer than 1 inch. Attached is the photo.

Which model do you recommend I should get? Appreciate your help.

1 user uploaded image

Bob from SWISCO

Jul 23, 2024 9:45 am

Thanks! In that case, I believe our Series 385 is the better option. Odds are that you have the 1-3/32" shoe and that it just wore down over time from friction. That's very common, so I'm not at all surprised at your measurement.

Quick Learner from Beaverton Oregon

Jul 23, 2024 10:41 am

Thank you very much. Makes sense. I will order the 385s.

Bob from SWISCO

Jul 23, 2024 3:20 pm

Awesome, thanks! We appreciate the business. Please feel free to reach out if you had any other follow up questions.

Quick Learner from Beaverton Oregon

Aug 3, 2024 10:14 pm

I received the channel balance units and successfully installed them. The windows are now sliding up and down smoothly. Thanks for your help Bob.

Vijay

Bob from SWISCO

Aug 5, 2024 9:19 am

That's awesome! Thanks so much for the update. We're always here to help if you had any other window projects in the future.
