Right angle T-Bar

A from North Carolina says:
April 6, 2020
Hi,

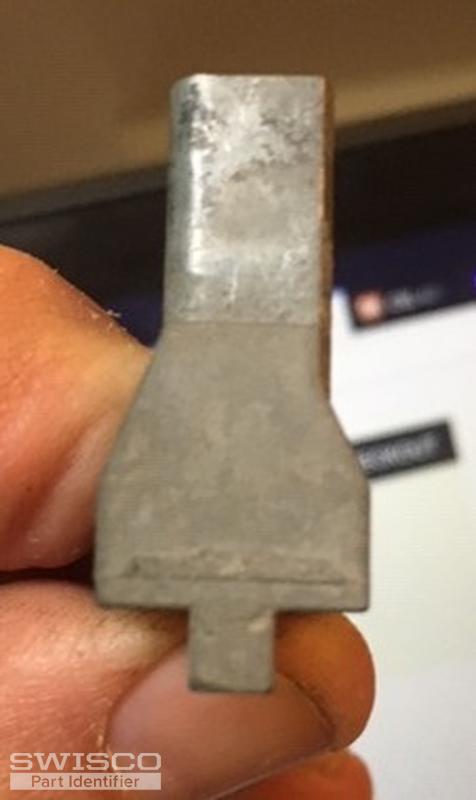

Dimensions are 1 5/16 from the tip of the T-Bar where it enters the shoe to where it is screwed in to the window. Img 4941

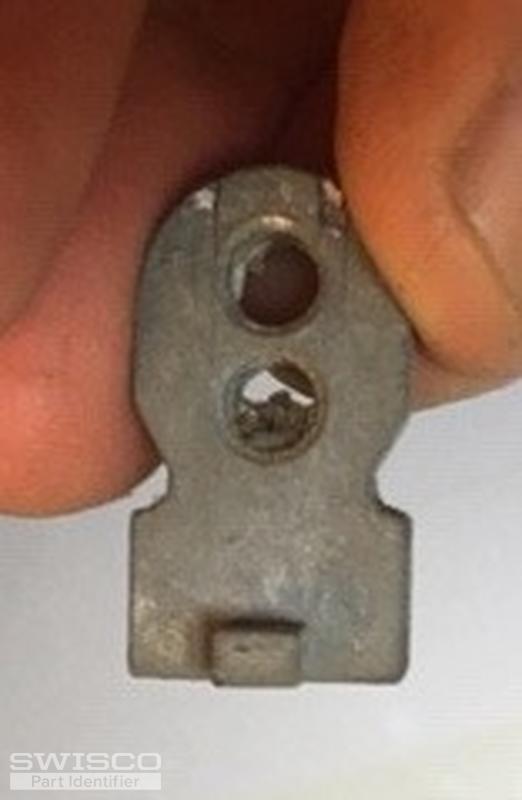

IMG 4940 is 1 inch in length and 5/8 wide.

Need qty 2 of these.

Frank
Thumbnail of the uploaded file named IMG_4937.JPG
Thumbnail of the uploaded file named IMG_4938.JPG
Thumbnail of the uploaded file named IMG_4939.JPG
Thumbnail of the uploaded file named IMG_4940.JPG
Thumbnail of the uploaded file named IMG_4941.JPG
Profile picture of Casey
Casey from SWISCO responded:
April 9, 2020

Hello Frank. Please have a look at our 17-034, 17-035, 17-036, and 17-037. Review the measurements of each of these pieces and see if any of these parts are a match.
LH Cam Pivot, 7/16"
LH Cam Pivot, 7/16"
17-034
$4.97
RH Cam Pivot, 7/16"
RH Cam Pivot, 7/16"
17-035
$4.97
LH Cam Pivot, 9/16"
LH Cam Pivot, 9/16"
17-036
$2.95
RH Cam Pivot, 9/16"
RH Cam Pivot, 9/16"
17-037
$2.95
