Right crank operator not working anymore

Question

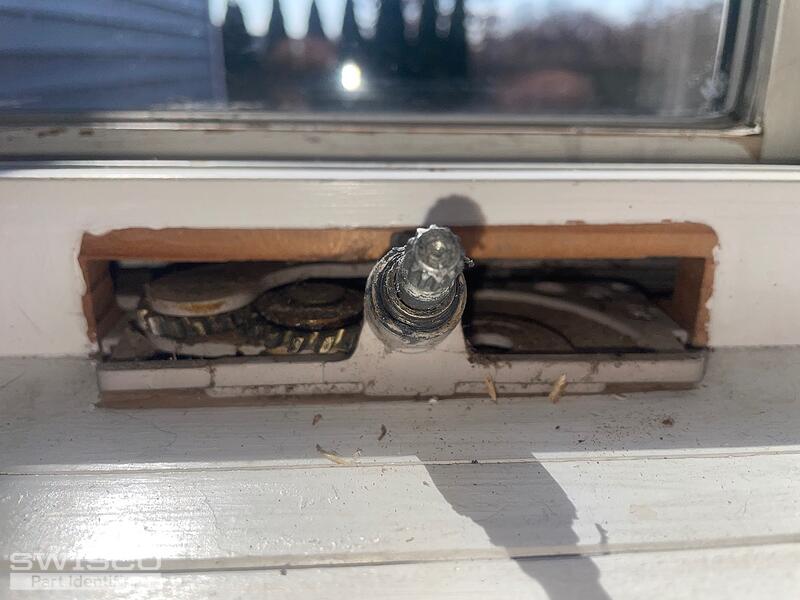

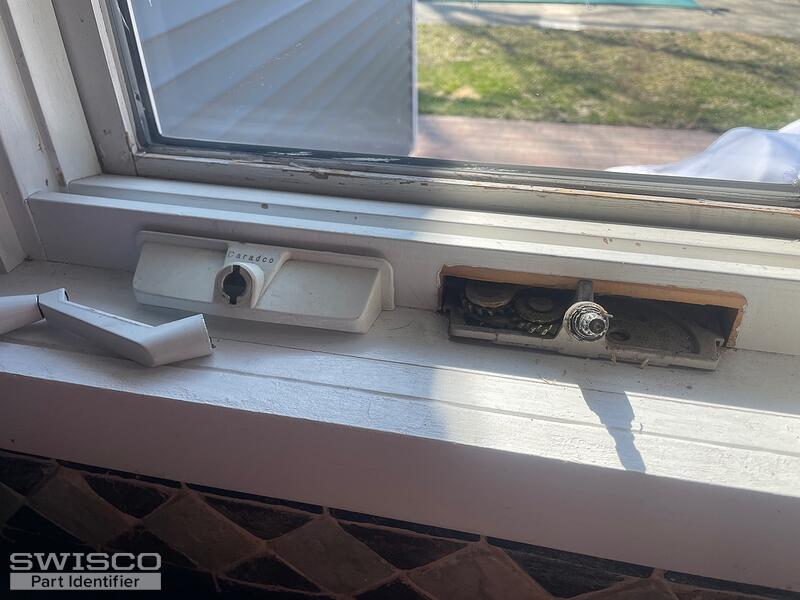

Hello I have a double crank window and the right pane is no longer working correctly. I am able to open the window but the crank mechanism is no longer working to close the window. Could you help me identify the part(s) I need?
Thanks,
-Mike

Jasmine · Accepted Answer

Hello,

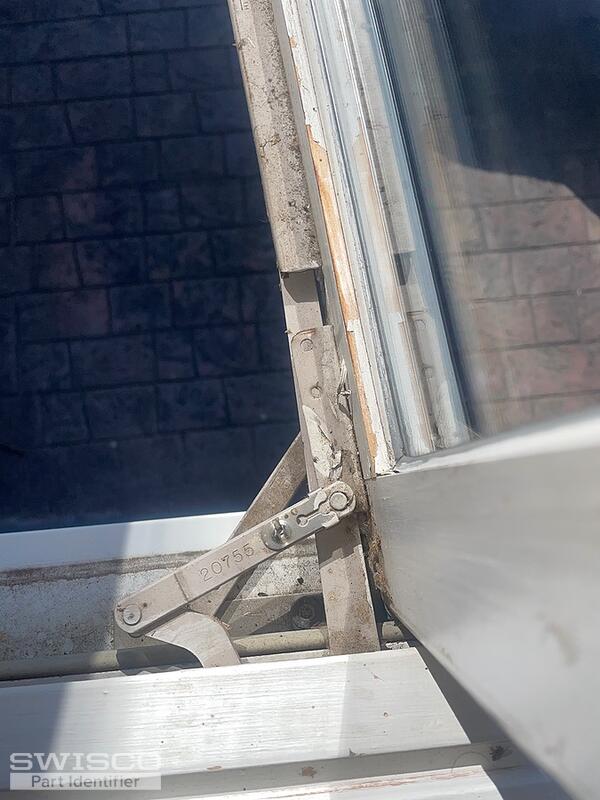

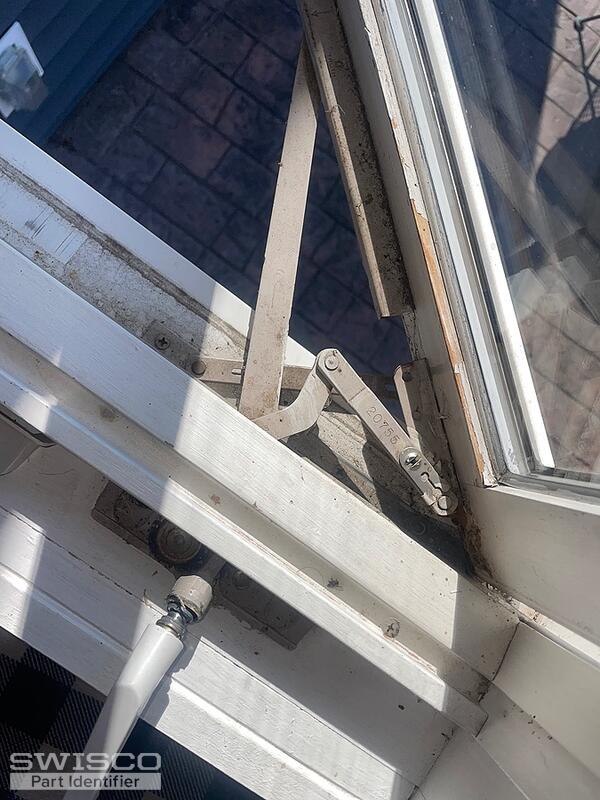

Thanks for reaching out to us! Your casement operator resembles our 39-155 Caradco Window Crank and its opposite handed version, 39-156. To confirm that this is the right fit for your window, carefully review and compare the dimensions below. You'll especially want to confirm the link arm measurement.

Dimensions for 39-155

These operators are compatible with the 39-107 Truth Hardware Operator Cover along with the 39-114L non-folding handle or the 39-205 folding handle; another replacement option is the 39-107FK , which is a folding crank and cover kit.

Please also take a look at the other compatible hardware tagged below.
