Right swing casement window

Quick Learner
Jan 8, 2025 4:29 pm

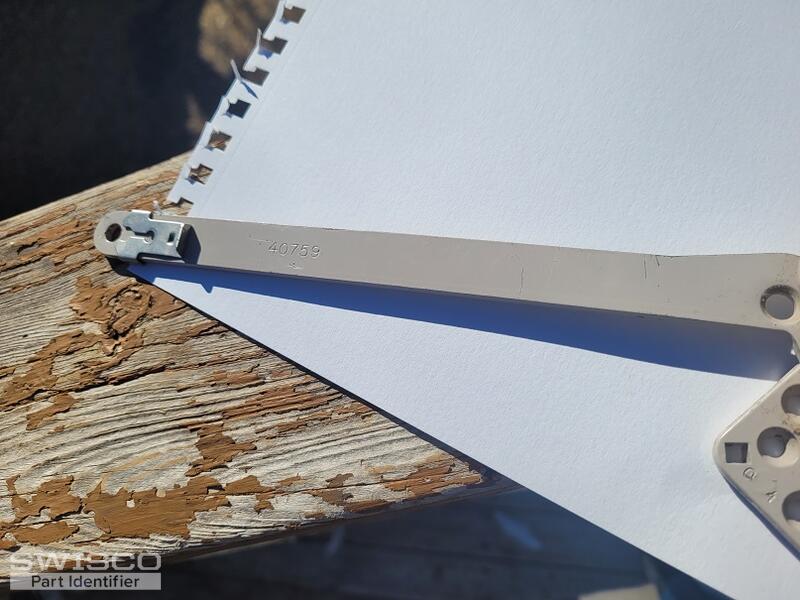

These are pics of the window operator we discussed and pertains to a right swing casement window.
Arm lengths are 8 inches each.
I need to replace two operators and the control handles, as the gears have stripped.
Appreciate your help in acquiring the appropriate replacement window operators.
Arm lengths are 8 inches each.
I need to replace two operators and the control handles, as the gears have stripped.
Appreciate your help in acquiring the appropriate replacement window operators.
4 user uploaded images
4 Replies

Emily from SWISCO
Jan 9, 2025 12:58 pm


Hello!
Thank you for contacting us. Your operator looks like the 39-496. The "wing span" is 20-3/4" so you'll want to measure as shown below to confirm the specifications align. For compatible handles, see the 39-205 and 39-114L which are sold separately.
Note that this is an awning operator. I wonder if the window you have was an awning-type but installed as a casement window. That isn't unheard of in this field but it's just something to keep in mind.
Please let us know if you have any questions!

Dimensions for 39-496

Home Owner from New Mexico
Jan 9, 2025 4:35 pm
Looks like you have found what I need.
The pic you've provided looks exactly like the one I have to a "tee".
The measurement overall lenght is 20" and all the gears and roller are in the exact orientation.
I would need two units, two handles and covers.
Can you get these? What would they cost for all components?
The pic you've provided looks exactly like the one I have to a "tee".
The measurement overall lenght is 20" and all the gears and roller are in the exact orientation.
I would need two units, two handles and covers.
Can you get these? What would they cost for all components?

Emily from SWISCO
Jan 10, 2025 8:12 am
