Rod Balance Replacement

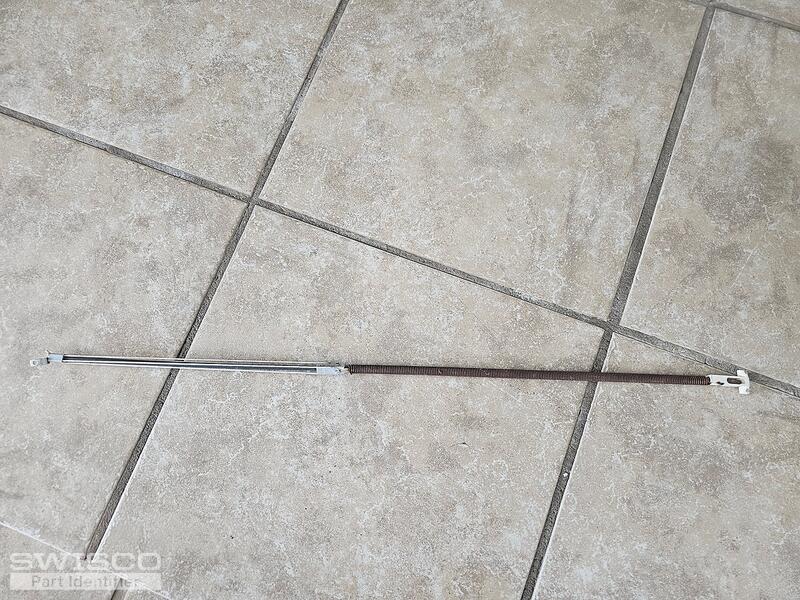

Thanks for reaching out! Your balances appear to be the discontinued crossbow style balance. These have been converted to use our Series 795 Channel Balances.

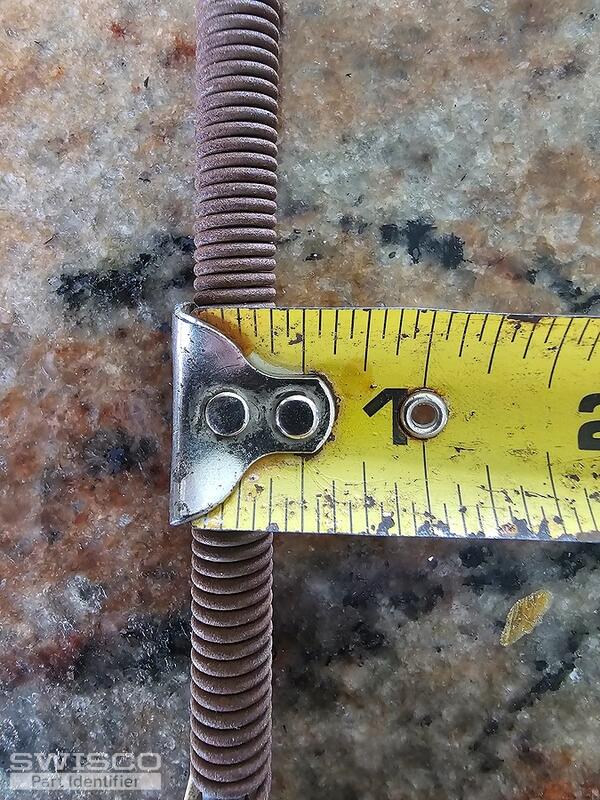

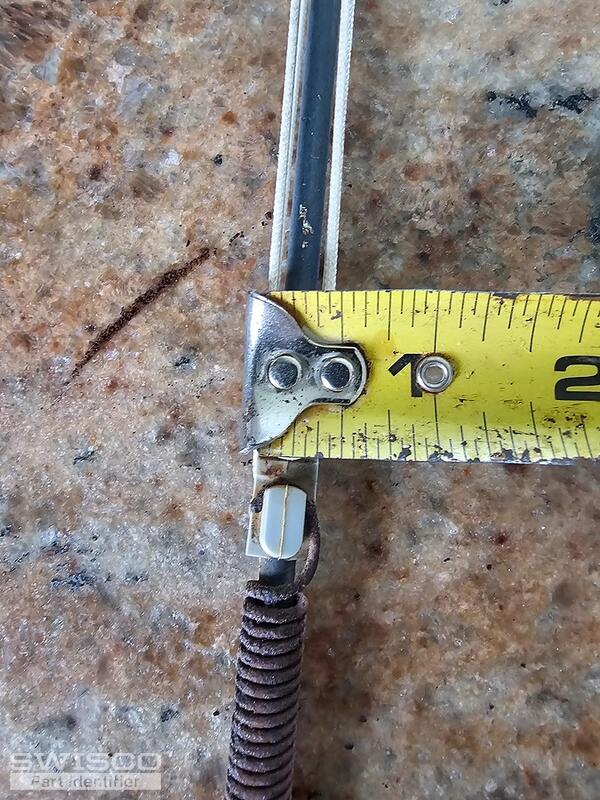

To confirm that these balances will be a situatable replacement, you'll need to find and remove an undamaged balance from a window so that you can get the accurate measurements from the balance. These include the length of an undamaged balance, the diameter of the balance channel/tube (which should be 1/2"), as well as the width of the bottom T-shaped attachment. You will also need to obtain the exact weight of the window to select the correct stamp option.

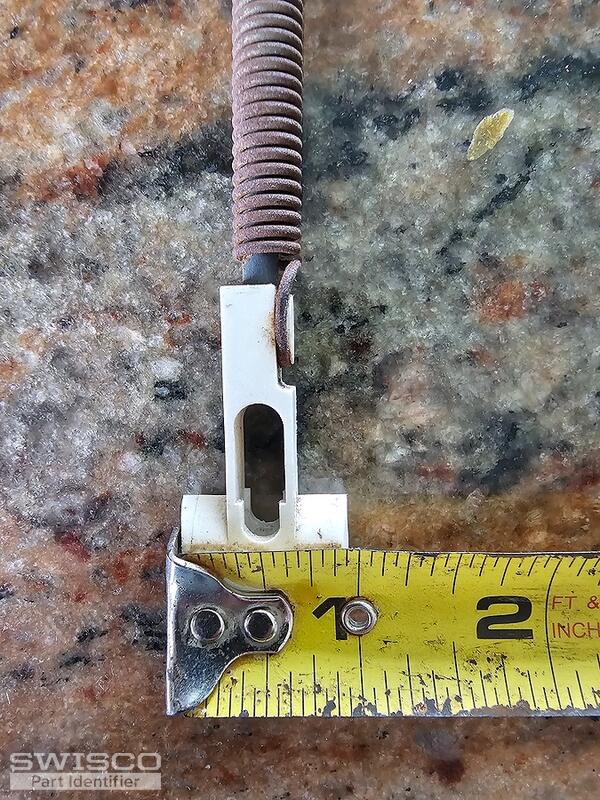

You'll also want to confirm the width of your bottom shoe. It will either be 1" or 1-1/4" across the bottom of the T shape.

Take a look at the video below for instructions on this balance conversion and the information you'll need to determine the correct balances. Let me know if you have any questions.

Yes, I understand. In the initial message, you included the length of the balance but it does not confirm the diameter of the balance or the width of the bottom shoe.

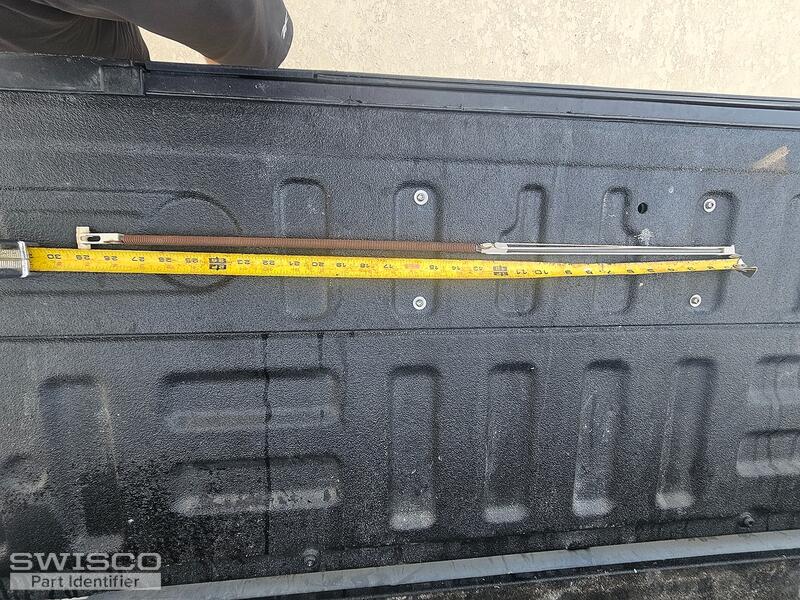

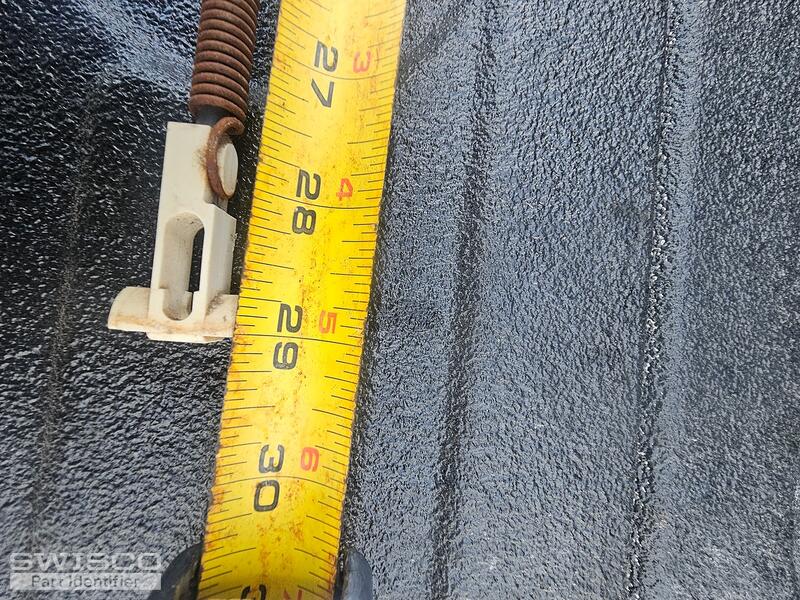

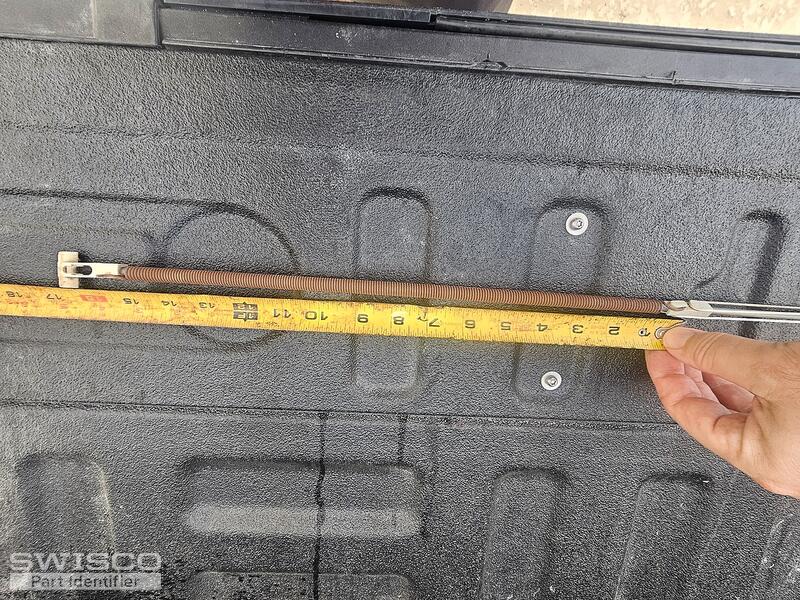

Since the balance measures 29", you'll likely need the S795-29. These balances come with the 15-195 closed cam, 1-1/4" T-Lock Balance shoe attached. If yours measures 1", you'll need the 15-194 shoe, which is sold separately.

Once you've obtained the exact weight of the sash, you'll be able to confirm the stamp. There is a chart below the product description that shows the weight ranges each option can hold to support the weight of the sash.

Feel free to reach out with any questions.

Hi Rodney,

Thanks for confirming this information. Our S795-29 will work well as a replacement for these balances. You'll need to select the 29B stamp for a window weighing 16lbs. Please remember, you'll need the 15-194 for replace the 1" shoe which will need to be added to the cart along with the balances. Take a look at the video below for instructions on how to swap out the shoes.

You'll want to confirm that your neighbor has the same exact windows, with the same exact balance length and sash weight. Also, you'll want to take a look at how your neighbor's balances attach to the top of the window. If it has all of the same parts yours does, then you should be good to go.

All of the pricing and information is included on the website. You'll be able to formulate a quote for yourself and your neighbor by adding the items to the online cart. If you need assistance with placing your order(s), you may call to speak with a member of our customer service team at (888) 991-1929.

I'm happy to help! Please feel free to reach out with any future hardware repairs you my have.

Have a great day!
