Roller for sliding screen door

Quick Learner from Potomac, MD

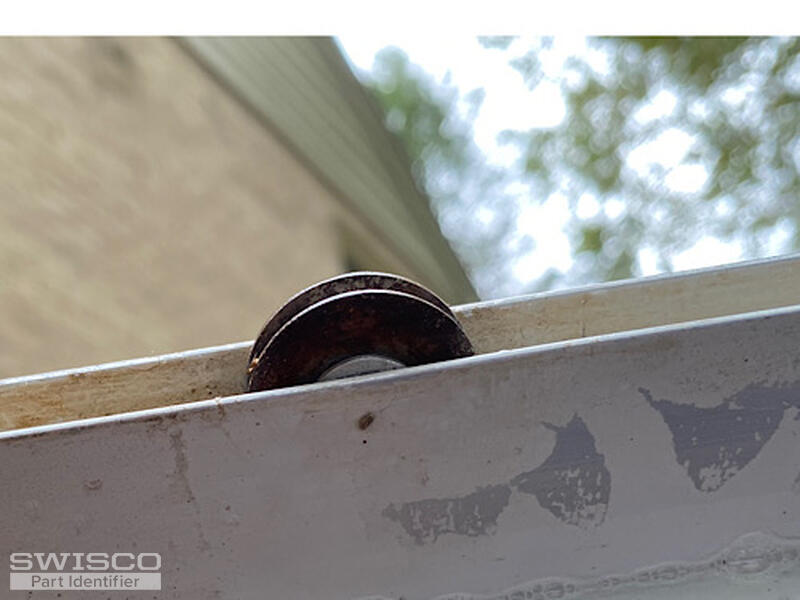

I don't see any markings on the screen door. I can send photos of the French door if you need.

There is an adjustment screw on the side, but removing it doesn't loosen the roller. I have seen YouTube videos where you can pry the roller off the retaining clip, but this roller is spot welded to the metal strip that goes inside the frame (towards the outer edge of the door.)

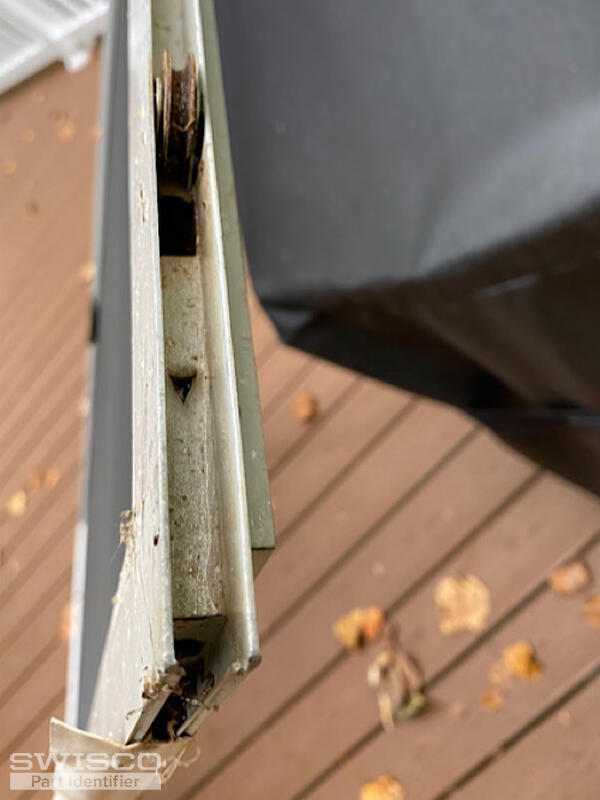

There is this "pin" on the inside edge of the frame (adjacent to the screen material.) It can be pushed in, but I am not sure what part it plays in removing the roller.

Thanks very much for your help.
5 user uploaded images
3 Replies
Quick Learner from Potomac, MD

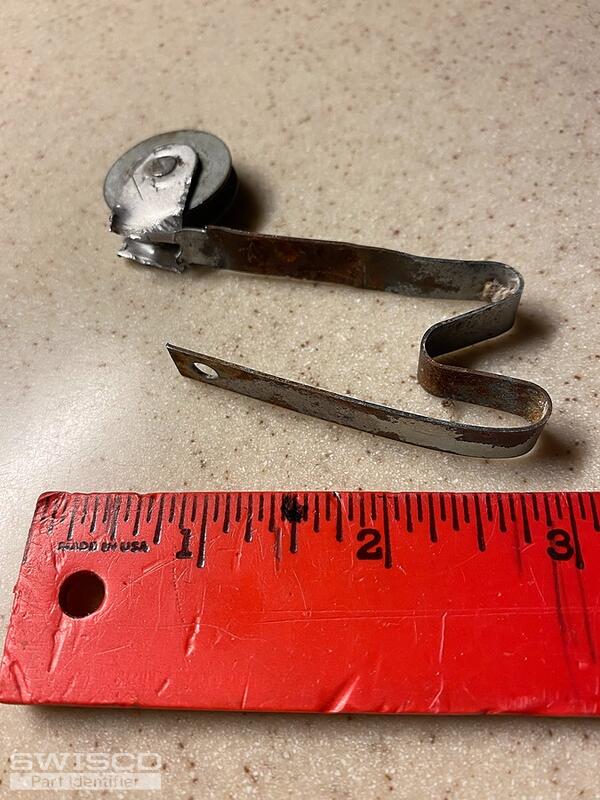

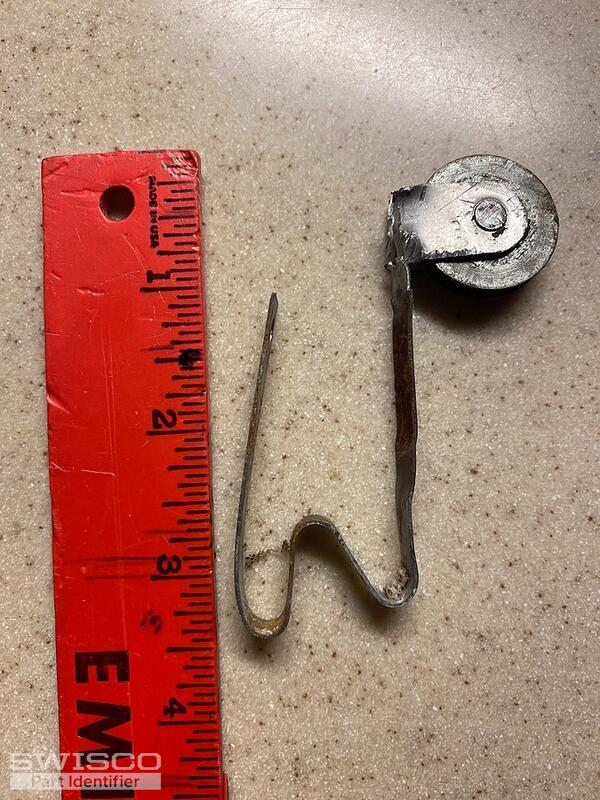

I figured out how to remove the roller and spring. The width of the spring is 3/8" or 9 mm.

Now, which one is it?
84-001?
84-031?
84-106?
84-107?

Thanks!!
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Hello! Thanks for posting. I agree, the best match for your roller would be one of the our you have listed. These are actually all interchangeable, just different styles. In your case it appears t be a metal wheel, so either the 84-031, which uses a steel ball bearing wheel, or the 84-107, which is stainless steel wheel. It's really up to you which one you want to go with.
