Rollers and weather stripping

Quick Learner from USA
I'm having a hard time finding a match for two rollers:

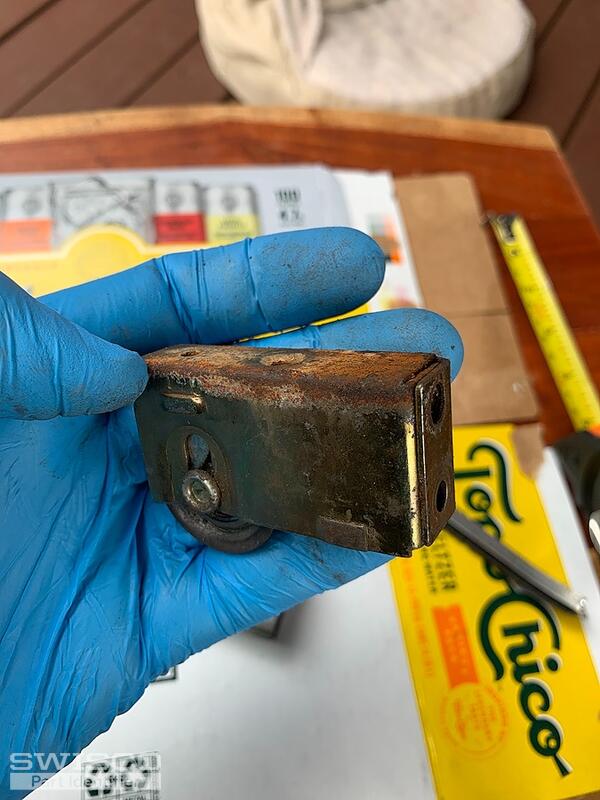

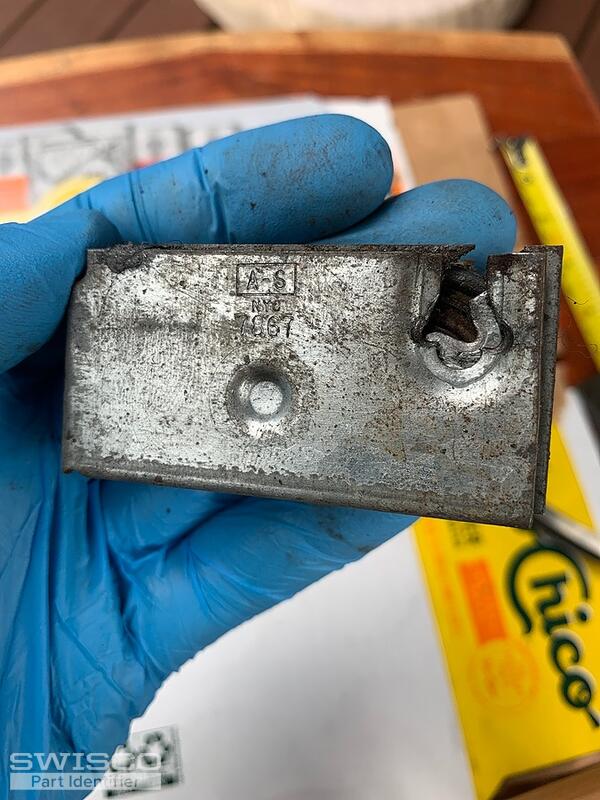

Roller stamped A-S NYC 7867
3 5/8" long
1 3/8" tall
3/4" wide
The roller is stuck inside, but the OD is appears to be 1 1/4"

The brass roller has no stamps
2 1/2" long
1 1/4" tall
A little over 5/8" wide
OD wheel 1 1/4"

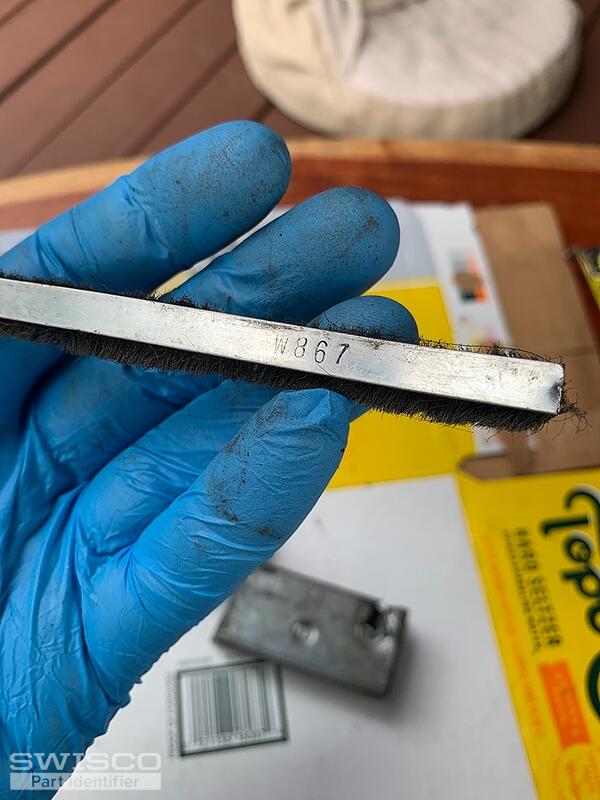

Additionally, I cannot find the pile weather stripping with the metal edge. Mine is stamped W867.
It is just over a 1/4" wide.

Let me know if you need additional information or photos.
Thank you in advance.
3 user uploaded images
2 Replies
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Hello,

Looking back in my Allen Stevens catalog, the #7867 is related to the 81-279. As for the other roller shown in your photos, that would be our 81-023. Also, take a look at the related screws used on these types of rollers.

As for the wool pile, I believe the base width would be 9/32". I'm guessing that the pile height is about 5/16" without the fin seal. If so, take a look at the 58-099 wool pile and compare the dimensions with yours. See the related information and videos to assist you.
